CS3412A - 4 transducers 3-Way Full Range Cinema Speaker

CS3412A

4 transducers 3-Way Full Range Cinema Speaker

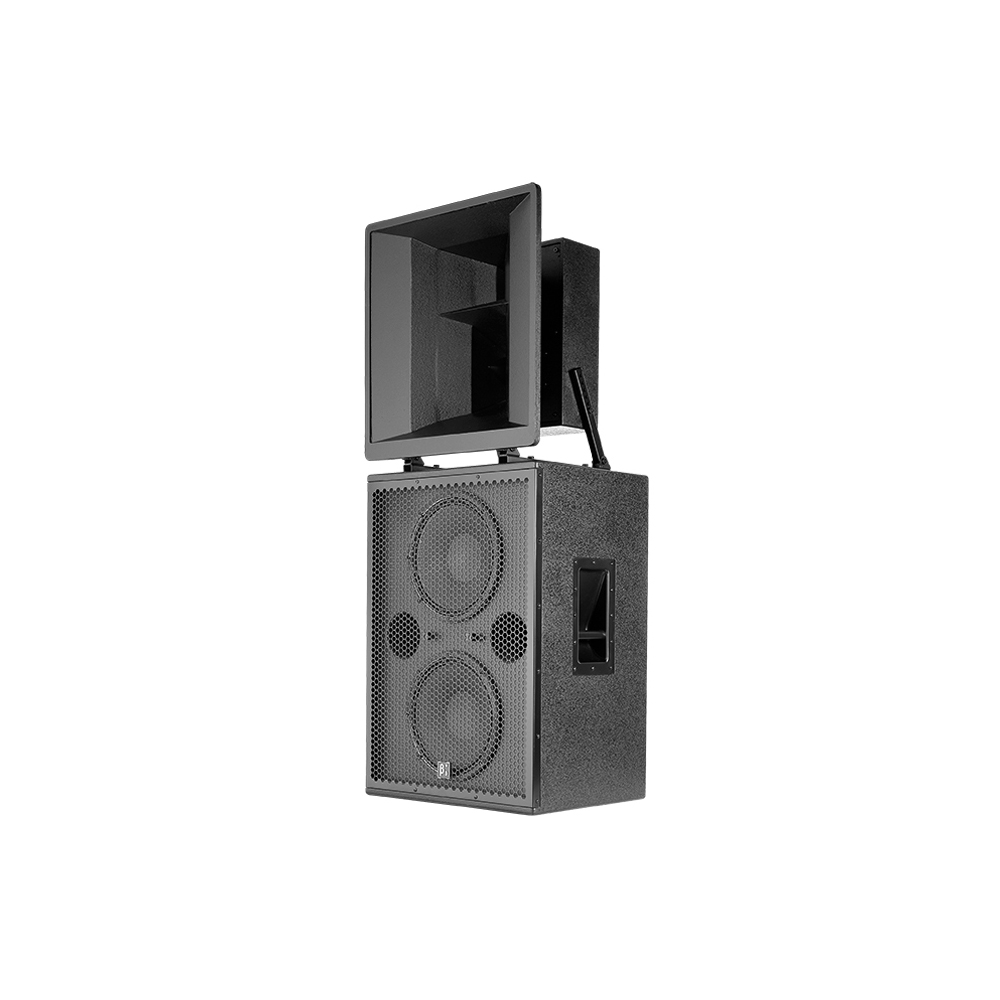

The Beta Three® CS3412A Cinema Series loudspeaker is a two cabinet system consisting of a two-way mid/high horn loudspeaker and a separate subwoofer loudspeaker cabinet. This Series has been specifically designed and engineered to meet the demanding requirements within Digital Cinema installations where high quality music and vocal reproduction is essential.


Features

  • Four transducers three way full range
  • High SPL, high sensitivity
  • Two 12" big power woofers
  • One 8" compression horn mid range transducer,
  • One compression driver with 44mm titanium diaphragm
  • Built-in crossover for HF/MF. external crossover for MF/HF
  • 90°×40° wide dispersion can get the wider covering
  • Computer simulating design provide very good Frequency response and phase feature
  • Very convenient walling installation mode
  • Suitable for THX,DTS and other multi-channel surrounding sound reinforcement in cinema
  • Suitable for Mid/small cinema audio system

Specifications

Acoustical specifications
Frequency Response(-3db):
LF: 43Hz-800Hz; MF/HF: 400Hz-20kHz
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
1 x 1.7" HF
Midrange:
1 x 8" MF
Woofer:
2 x 12" LF
Input/Output section
Input Connectors:
Spring clip
Sensitivity (1W @ 1m):
LF: 100dB; MF/HF: 103dB
Processor section
Crossover frequencies:
LF/MF: 450Hz; MF/HF: 2.2kHz
Power section
Total Power:
LF: 500W; MID/HIGH:200W
Nominal Impedance (Ohm):
LF: 4Ω; MF/HF: 8Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
LF: 560 x 440 x 800; MF/HF: 560 x 408 x 584
Package Dimensions (W x D x H):
LF: 670 x 550 x 920; MF/HF: 700 x 676 x 535
Weight
Net Weight:
54.4 kg / 119.9 lb
Gross Weight:
64 kg / 141.1 lb
