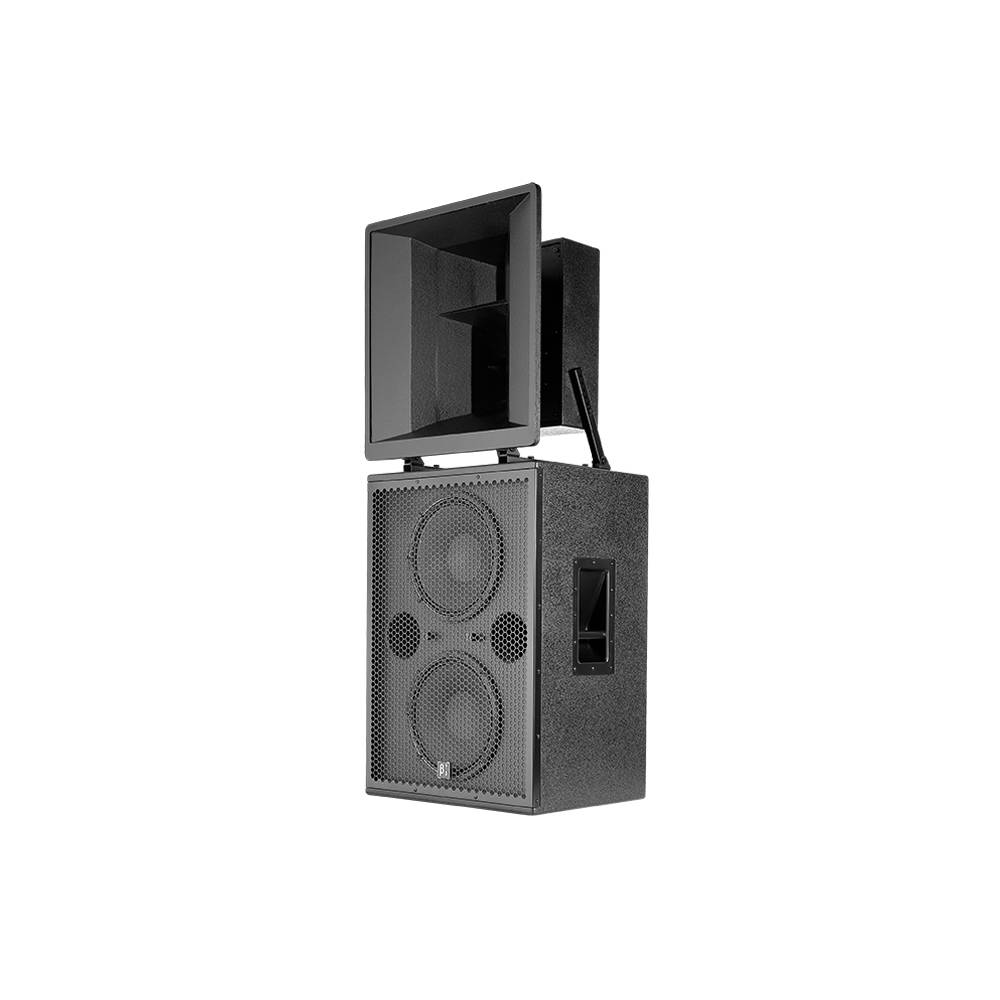

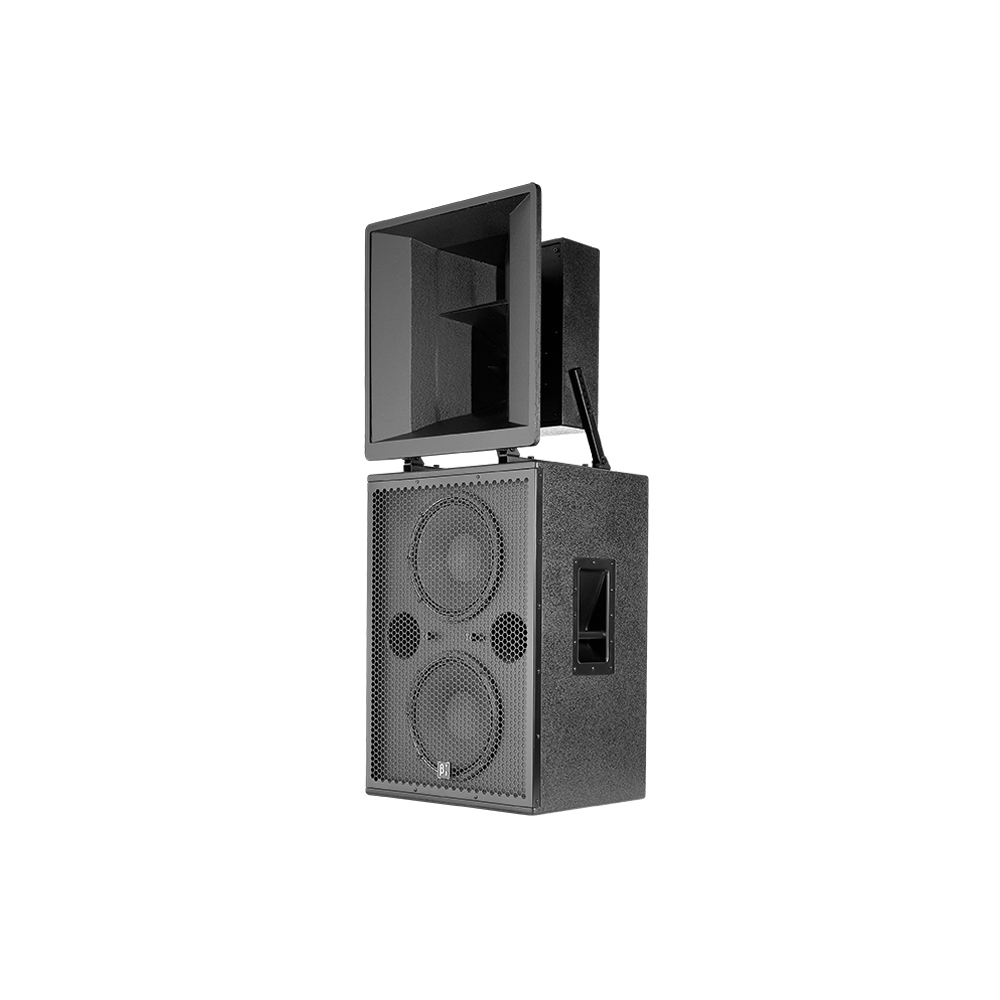

CS3315A - 15" 3-Way Full Range Cinema Speaker

CS3315A

15" 3-Way Full Range Cinema Speaker

The Beta Three® CS3315A Cinema Series loudspeaker is a two cabinet system consisting of a two-way mid/high horn loudspeaker and a separate subwoofer loudspeaker cabinet. This Series has been specifically designed and engineered to meet the demanding requirements within Digital Cinema installations where high quality music and vocal reproduction is essential.


Features

  • Three transducers three way full range.
  • High SPL, high sensitivity.
  • One 15" big power woofers.
  • One 8" compression horn mid range transducer.
  • One compression driver with 44mm titanium diaphragm.
  • Built-in crossover for HF/MF. external crossover for MF/LF.
  • 90°×40° wide dispersion can get the wider covering.
  • Computer simulating design provide very good Frequency response and phase feature.
  • Very convenient walling installation mode.
  • Suitable for THX,DTS and other multi-channel surrounding sound reinforcement in cinema.
  • Suitable for big/mid cinema audio system.
  • Combining with β3 special speaker controller ΣC-2600 can getgood frequency response and phase.
  • Can work with β3 CSB118A bass speaker,,CSR208A surrounding speaker when used for high quality
  • music replaying.

Specifications

Acoustical specifications
Frequency Response(-3db):
LF: 40Hz-1.5kHz; MF/HF: 500Hz-20kHz
Max SPL @ 1m:
LF: 120dB/126dB(PEAK); MF/HF: 117dB/123dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
1 x 1.7" HF
Midrange:
1 x 8" MF
Woofer:
2 x 15" LF
Input/Output section
Input Connectors:
Spring clip
Sensitivity (1W @ 1m):
LF: 96dB; MF/HF: 96dB
Processor section
Crossover frequencies:
LF/MF: 450Hz; MF/HF: 2kHz
Power section
Total Power:
LF: 300W, MF/HF: 150W(RMS); LF: 600W, MF/HF: 300W(PROGRAM); LF: 1200W, MF/HF: 600W(PEAK)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
LF: 560 x 440 x 550; MF/HF: 560 x 408 x 584
Package Dimensions (W x D x H):
LF: 670 x 550 x 670; MF/HF: 700 x 676 x 535
Weight
Net Weight:
29.9 kg / 65.9 lb
Gross Weight:
37.5 kg / 82.7 lb
