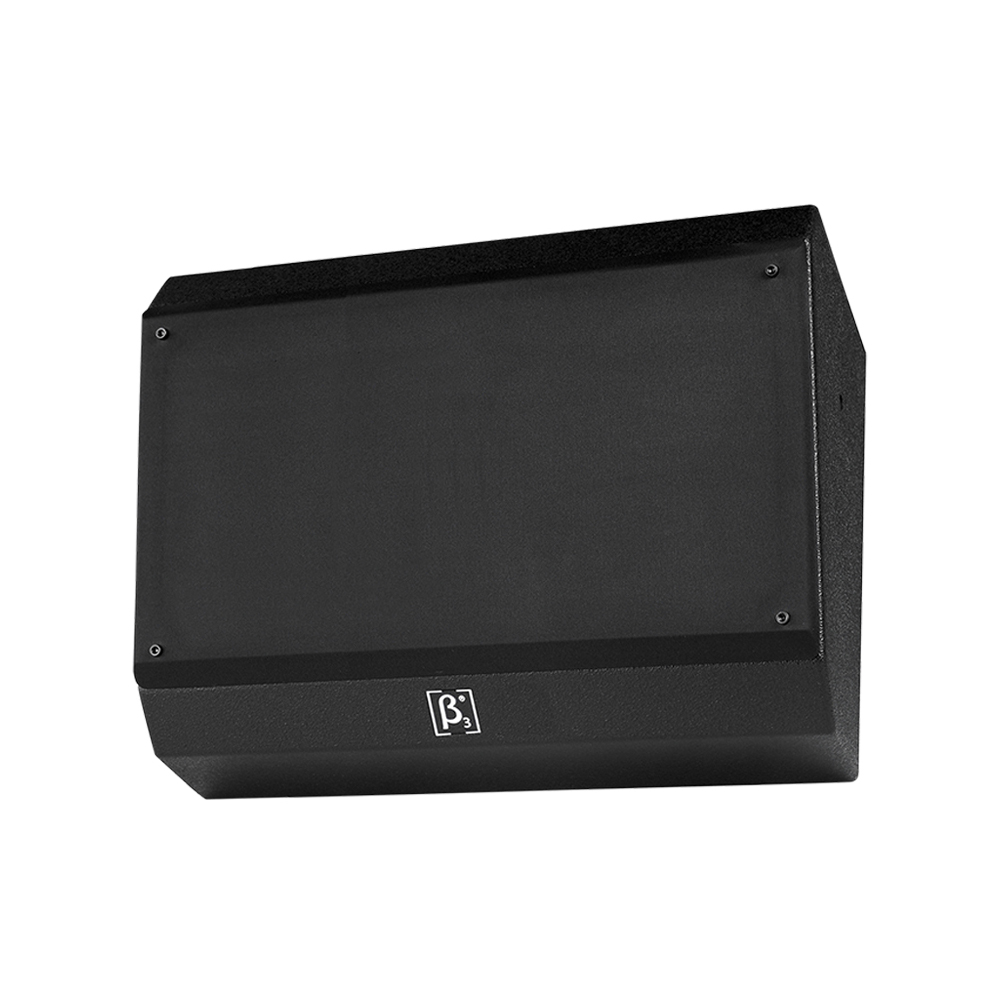

CSR212A - 12" Two Way Full Range Cinema Speaker

CSR212A

12" Two Way Full Range Cinema Speaker

The Beta Three® CSR212A Cinema Series loudspeaker is a surround two-way mid/high horn loudspeaker designed and engineered to meet the demanding requirements within Digital Cinema installations where high quality music and vocal reproduction is essential.


Features

  • Two transducers two way full range.
  • High SPL, high sensitivity.
  • One 12" big power woofer.
  • One compression driver with 44mm PEI diaphragm.
  • Built-in electronic protection crossover.
  • Computer simulating design provide very good Frequency response and phase feature.
  • Very convenient walling installation mode.
  • Suitable for THX, DTS and other multi-channel surrounding sound reinforcement in cinema.
  • Suitable for Mid/small cinema audio system.
  • Can work with Beta Three high energy bass speaker when used for high quality music replaying

Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-20kHz
Dispersion (H x V):
50-100° x 55°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 12" LF
Input/Output section
Input Connectors:
Spring clip
Sensitivity (1W @ 1m):
94dB
Processor section
Crossover frequencies:
2.2kHz
Power section
Total Power:
300W(RMS)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
625 x 273 x 405mm / (24.6 x 10.7 x 15.9in)
Package Dimensions (W x D x H):
705 x 391 x 495mm / (27.8 x 15.4 x 19.5in)
Weight
Net Weight:
18.5 kg / 40.8 lb
Gross Weight:
23 kg / 50.7 lb
