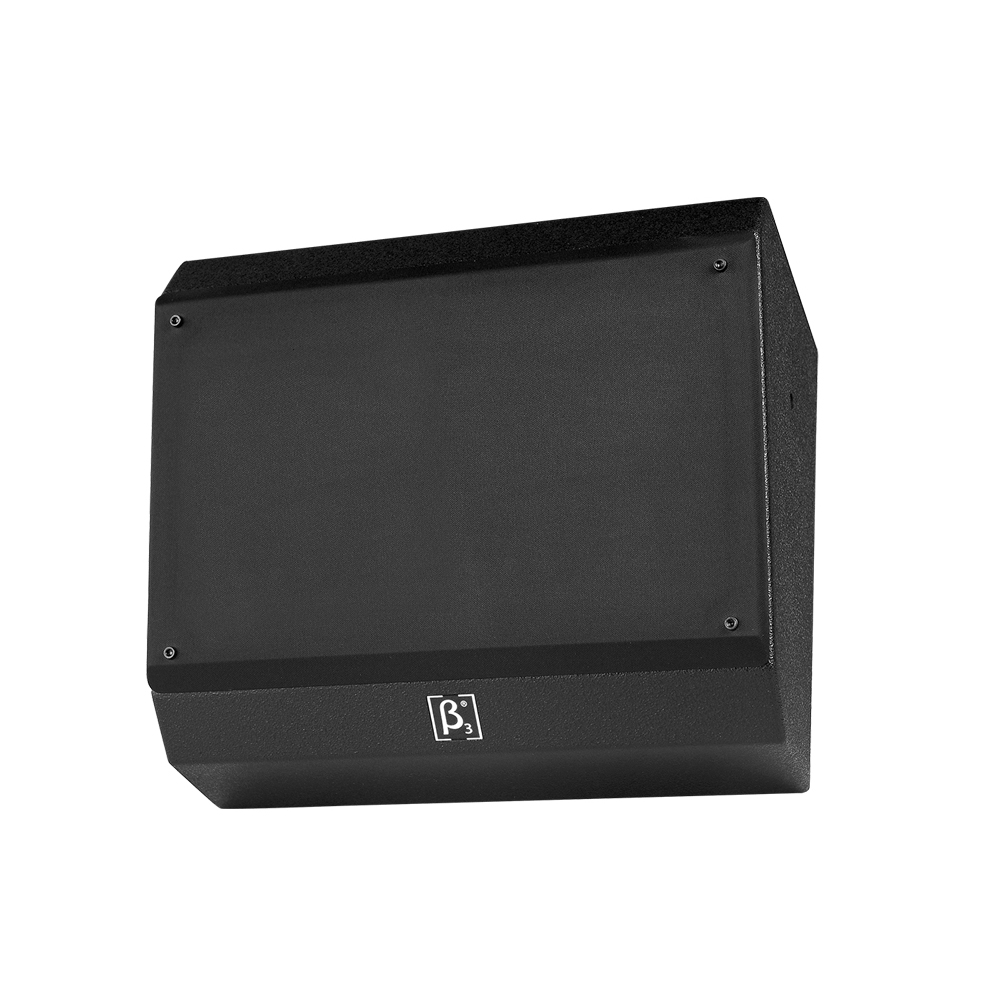

CSR210A - 10" Two Way Full Range Cinema Speaker

CSR210A

10" Two Way Full Range Cinema Speaker

The Beta Three® CSR210A Cinema Series loudspeaker is a surround two-way mid/high horn loudspeaker designed and engineered to meet the demanding requirements within Digital Cinema installations where high quality music and vocal reproduction is essential.


Features

  • Two transducers two way full range.
  • High SPL, high sensitivity.
  • One 10" big power woofer.
  • One compression driver with 44" PEI diaphragm.
  • Built-in electronic protection crossover.
  • Computer simulating design provide very good Frequency response and phase feature.
  • Very convenient walling installation mode.
  • Suitable for THX, DTS and other multi-channel surrounding sound reinforcement in cinema.
  • Suitable for Mid/small cinema audio system.
  • Can work with Beta Three high energy bass speaker when used for high quality music replaying

Specifications

Acoustical specifications
Frequency Response(-3db):
65Hz-20kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
50-100° x 55°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
Spring clip
Sensitivity (1W @ 1m):
95dB
Processor section
Crossover frequencies:
2kHz
Power section
Total Power:
200W(RMS)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
515 x 271 x 420mm / (20.3 x 10.7 x 16.5in)
Package Dimensions (W x D x H):
500 x 350 x 585mm / (19.7 x 13.8 x 23in)
Weight
Net Weight:
14.5 kg / 32 lb
Gross Weight:
17.5 kg / 38.6 lb
