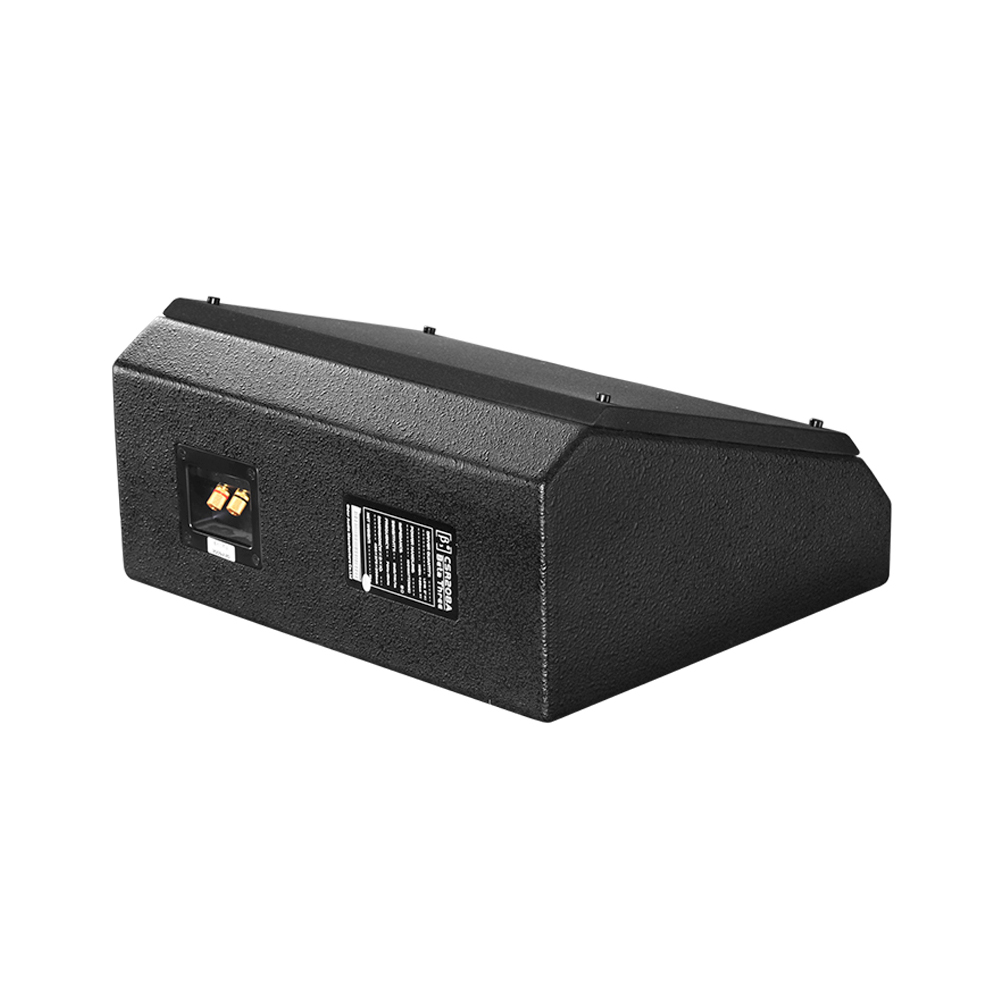

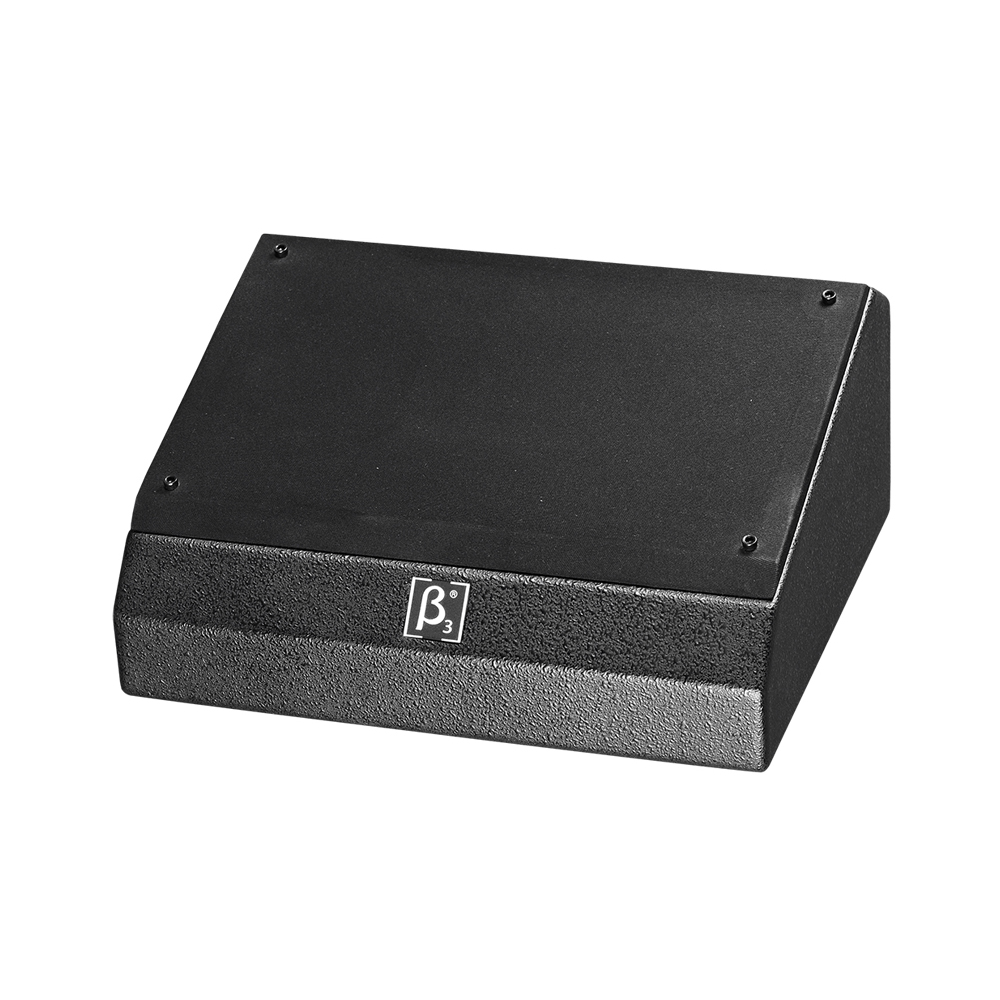

CSR208A

8" Two Way Full Range Cinema Speaker

The Beta Three® CSR208A Cinema Series loudspeaker is a surround two-way mid/high horn loudspeaker designed and engineered to meet the demanding requirements within Digital Cinema installations where high quality music and vocal reproduction is essential.


Features

  • Two transducers two way full range.
  • High SPL, high sensitivity.
  • One 8" big power woofer.
  • One compression driver with 1" PEI diaphragm.
  • Built-in electronic protection crossover.
  • Computer simulating design provide very good Frequency response and phase feature.
  • Very convenient walling installation mode.
  • Suitable for THX, DTS and other multi-channel surrounding sound reinforcement in cinema.
  • Suitable for Mid/small cinema audio system.
  • Can work with Beta Three high energy bass speaker when used for high quality music replaying

Specifications

Acoustical specifications
Frequency Response(-3db):
70Hz-18kHz
Max SPL @ 1m:
111dB/117dB(PEAK)
Dispersion (H x V):
55-90° x 85°
Transducers
Compression driver:
1 x 1" HF
Woofer:
1 x 8" LF
Input/Output section
Input Connectors:
Spring clip
Sensitivity (1W @ 1m):
91dB
Processor section
Crossover frequencies:
2.5kHz
Power section
Total Power:
100W(RMS); 200W(PROGRAM); 400W(PEAK)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
450 x 375 x 210mm / (17.7 x 14.8 x 8.3in)
Package Dimensions (W x D x H):
455 x 290 x 520mm / (17.9 x 11.4 x 20.5in)
Weight
Net Weight:
11 kg / 24.3 lb
Gross Weight:
13 kg / 28.7 lb

CSR208A Application

    CSR208A Installation

      CSR208A Parts

        CSR208A Collocation

          Videos

            Downloads

            FilenameVersionLanguageSizeUpdated
            β3_CSR208A_PA_Chinese_Manualβ3_CSR208A_PA_Chinese_Manual 1β3_CSR208A_PA_Chinese_Manual  1802.61KB 2018-07-12 02:25:39
            β3_CSR208A_PA_English_Manualβ3_CSR208A_PA_English_Manual 1β3_CSR208A_PA_English_Manual  1381.66KB 2018-07-12 02:25:39
