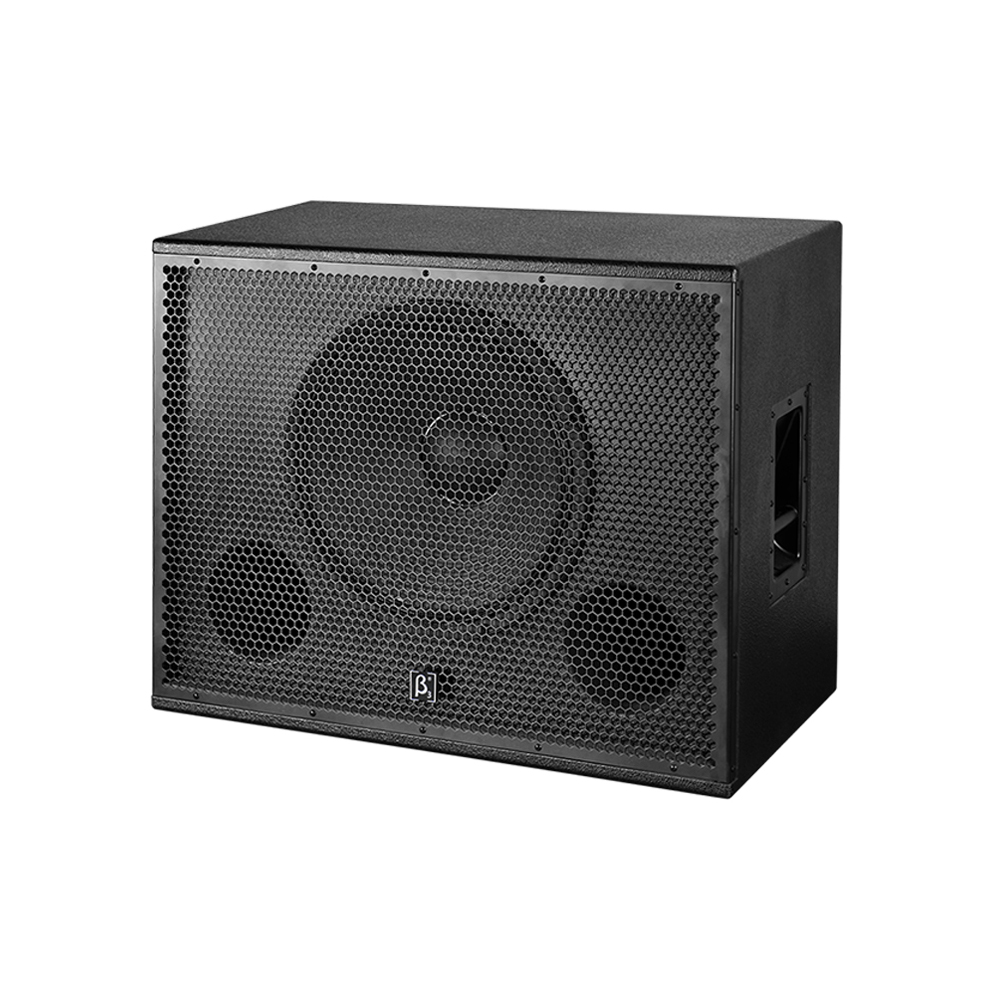

CSB118A - Bass reflex cinema sub-woofer loudspeaker

CSB118A

Bass reflex cinema sub-woofer loudspeaker

The Beta Three® CSB118A Cinema Series subwoofer loudspeaker utilises a high power low frequency driver with a structurally solid enclosure. The CSB Series subwoofer loudspeaker delivers extended low frequency bandwidth with excellent punch for Digital Cinema installations.


Features

  • High SPL, high sensitivity loudspeaker
  • One 18" high power woofer
  • DSP design can require fine frequency response and phase characteristics
  • Variable and hospitable installation modes
  • Suitable for all kinds of cinema system configurations
  • Suitable for sound reinforcement application of multichannel surrounding movie like cinema THX、DTS etc.
  • Matched with relative speaker controller B3 EC-2600 can acquire fine frequency and phase response
  • Used for high quality, multichannel cinema music playback, which can matches with B3 full range loudspeaker.

Specifications

Acoustical specifications
Frequency Response(-3db):
45Hz-200Hz
Max SPL @ 1m:
127dB/132dB(PEAK)
Transducers
Woofer:
1 x 18" LF
Input/Output section
Input Connectors:
Binding post
Sensitivity (1W @ 1m):
100dB
Power section
Total Power:
600W(RMS); 1200W(PROGRAM); 2400W(PEAK)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
900 x 450 x 700mm / (35.4 x 17.7 x 27.6in)
Package Dimensions (W x D x H):
1010 x 560 x 820mm / (39.8 x 22 x 32.3in)
Weight
Net Weight:
62 kg / 136.7 lb
Gross Weight:
67 kg / 147.7 lb
