The Beta Three® BT series ceiling speakers are engineered and manufactured to provide optimal sound performance over a wide coverage area. The BT series is exceptionally versatile in satisfying architectural, aesthetic and system performance requirements, and it is ideally suited for both voice broadcasting and background music applications in various commercial environments.

BT10/V - 10" Full Range Ceiling Speaker
BT10/V - 10" Full Range Ceiling Speaker
BT10/V - 10" Full Range Ceiling Speaker
BT10/V - 10" Full Range Ceiling Speaker

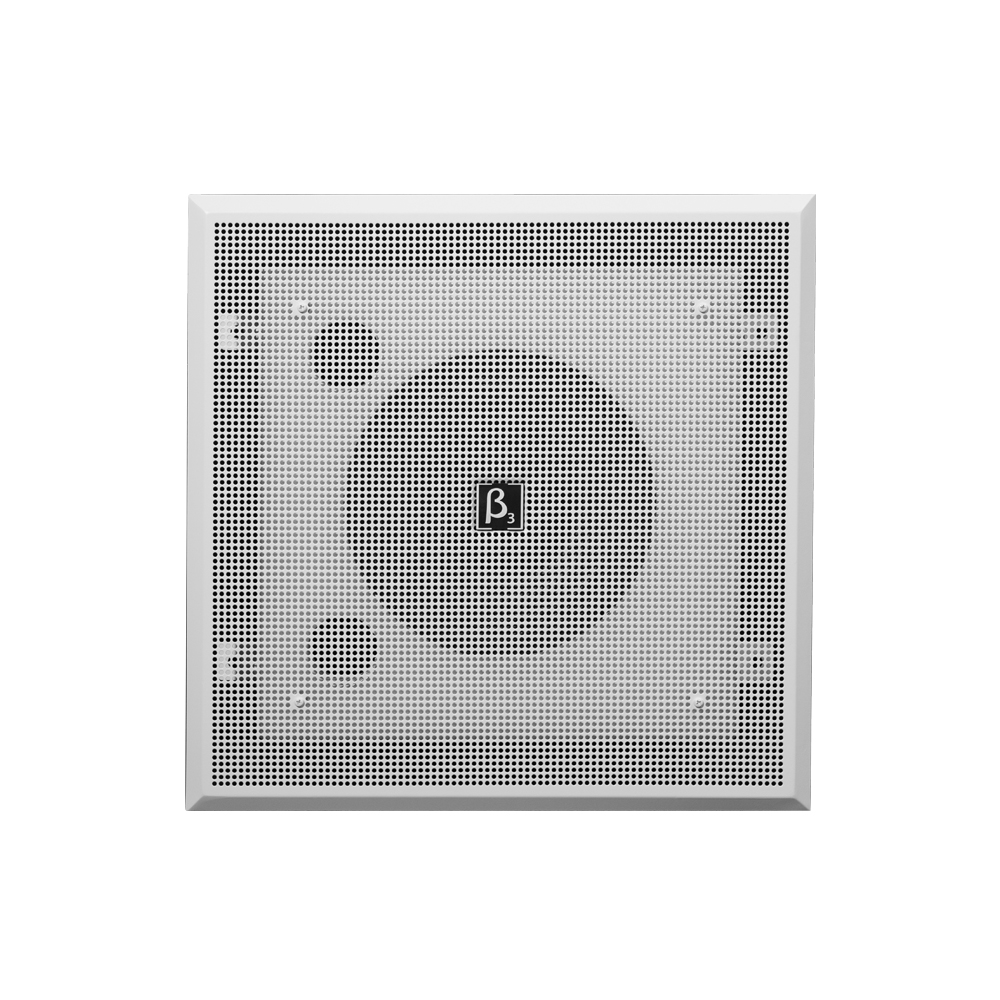

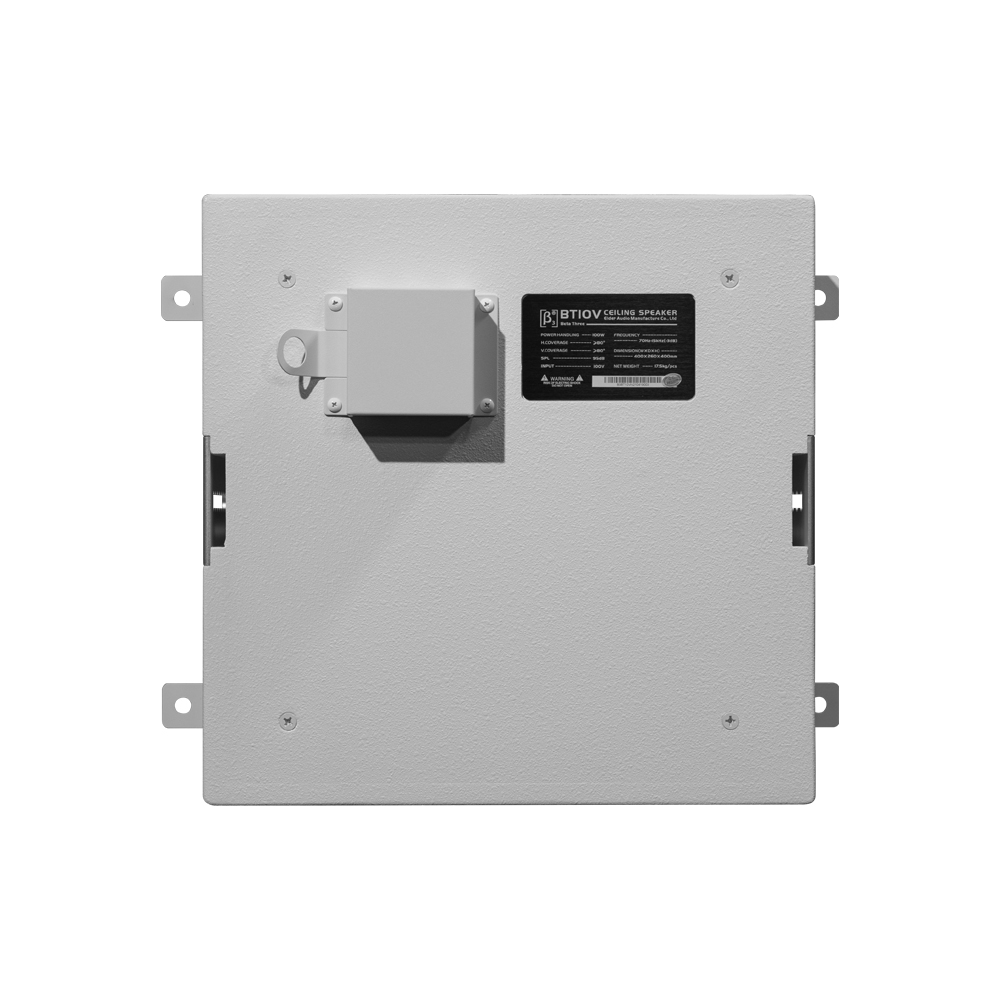

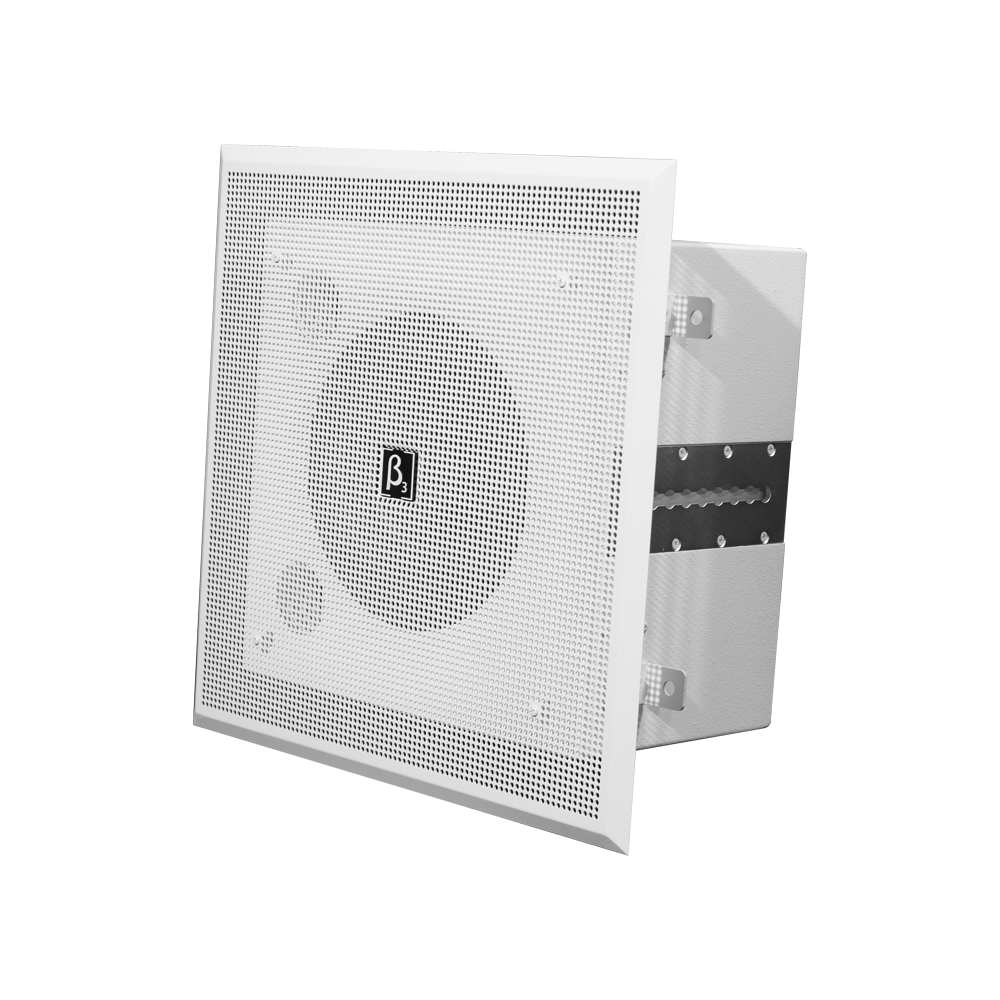

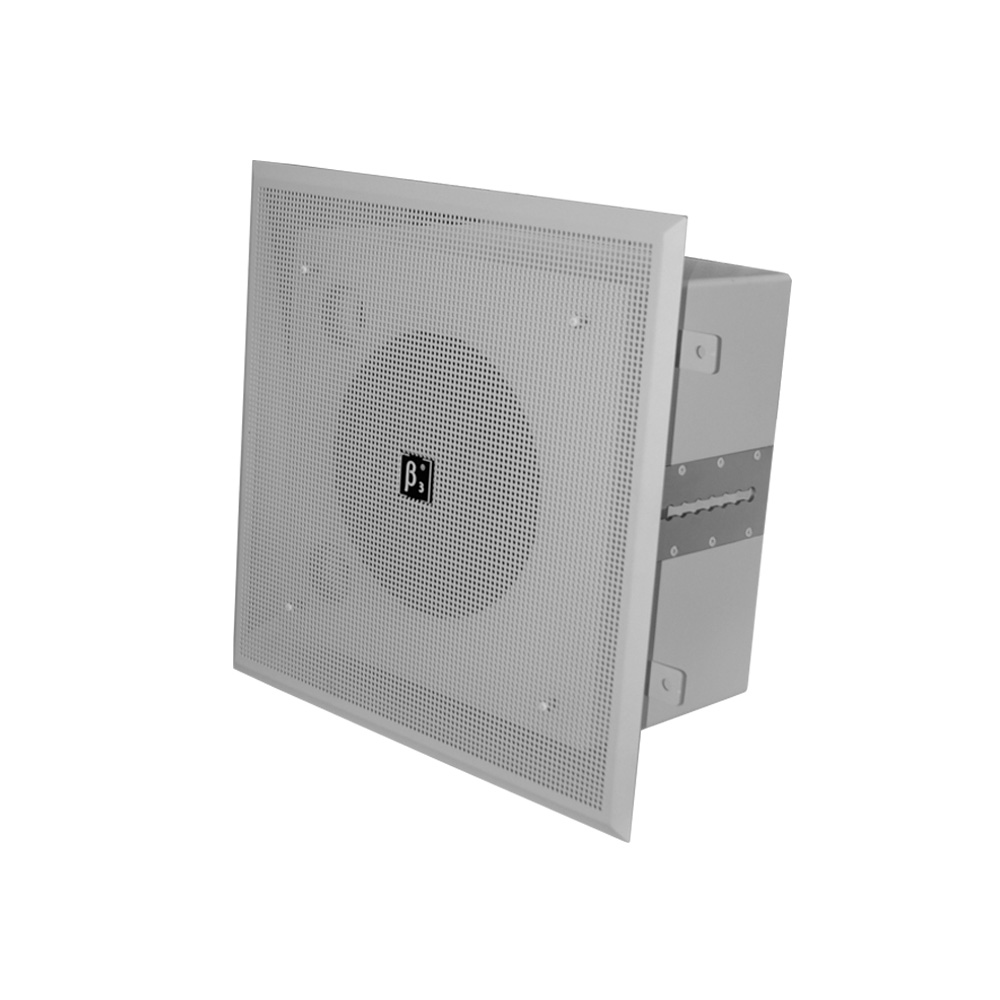

BT10/V

10" Full Range Ceiling Speaker

The Beta Three® BT10/V premium ceiling speakers are designed and engineered for quick and easy installation. The BT10/V delivers a wide frequency response and high quality sound reproduction . They look and sound great in wide variety of public address applications.


Features

  • Two way public broadcasting speaker

  • One 10" LF driver

  • One 1.7" HF driver

  • Computer optimized simulation design

  • HF driver locates on the X axis of LF driver, point sound source design

  • LF is intelligible, strong and flexible, HF is mild and exquisite

  • HF Protected

  • Working mode 70V/100V 8Ohm

  • Cabinet is made of high intensity, E1 fireproof MDF

  • Multilayer white painting with scratch-resistant and erode-resistant features

  • Selected POLYESTER damping materials absorb cabinet standing wave ffectively

  • Flying configuration adopts scratch-resistant and rusty-resistant aluminum alloy

  • Various flying methods are available

  • The mounting height at vertical direction is adjustable

Specifications

Acoustical specifications
Frequency Response(-3db):
70Hz-15kHz
Max SPL @ 1m:
115dB/121dB(PEAK)
Dispersion (H x V):
90° x 90°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
Screw Terminal
Sensitivity (1W @ 1m):
95dB
Processor section
Crossover frequencies:
3.3kHz
Power section
Total Power:
100W(RMS); 200W(MUSIC); 400W(PEAK);
Nominal Impedance (Ohm):
Voltage range:
100V
Physical specifications
Cabinet/Case Material:
12mm MDF
Hardware:
4 x M8 Flying point
Grille:
White powder coated, 1.5mm steel mesh.
Color:
Black
Size
Dimension (W x D x H):
400 x 260 x 400mm / (15.7 x 10.2 x 15.7in)
Package Dimensions (W x D x H):
610 x 610 x 372mm / (24 x 24 x 14.6in)
Weight
Net Weight:
17.5 kg / 38.6 lb
Gross Weight:
19.5 kg / 43 lb
