R6/R12

Compact Line System

The Compact Line Array loudspeaker system are used in applications including sound reinforcement for Houses of Worship, Events, Theme Parks, Multifunctional Auditoriums, Schools, and Transit Terminals etc. The R Series Compact Line Array systems delivers extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.


Features

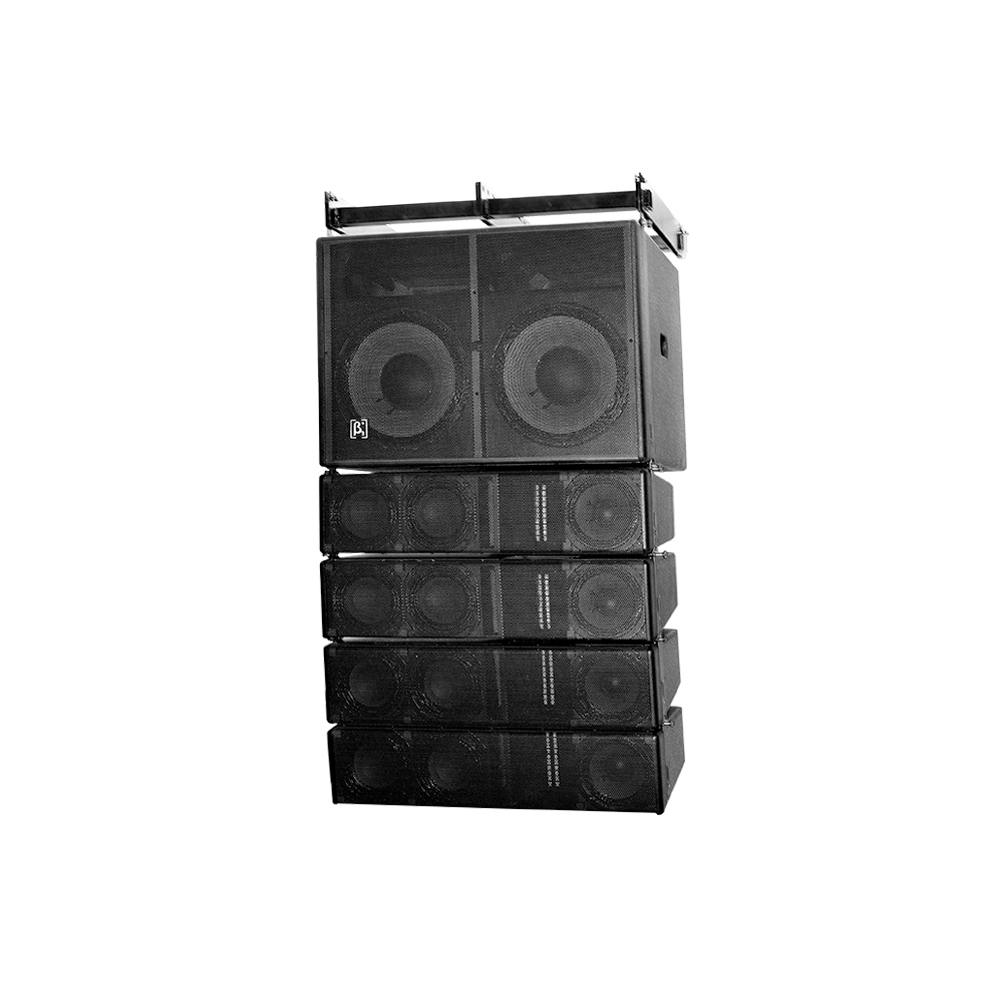

  • The system comprises of 4 x R6 mid/high boxes consisting of 1 x Ribbon tweeter, 1 x 6.5” MF and 2 x 6.5” LF drivers per full range speaker, and 1 x R12 Subwoofer consisting of 2 x 12” LF drivers
  • 2 x NL4 input and output connectors on each cabinet
  • For optimum performance use with a Beta Three® a digital speaker management processor
  • Integrated rigging and speaker cabling included for the system
  • Rigging allows adjustment of R6 in 1° increments
  • Designed for high speech intelligibility and natural sounding music
  • Suitable for use as a main system with or without sub speaker augmentation
  • Permanent installation
  • Powder coated grill
  • Durable Polyurethane textured base paint
  • Available in either black or white

Specifications

Acoustical specifications
Frequency Response(-3db):
R6: 50Hz-20kHz; R12: 45Hz-300Hz
Max SPL @ 1m:
R6: 116dB/122dB(PEAK); R12: 122dB/128dB(PEAK)
Dispersion (H x V):
120° x 30°
Transducers
Transducer Driver:
R6: 1 x Ribbon HF + 1 x 6.5" MF + 2 x 6.5" LF; R12a: 2 x 12" LF
Input/Output section
Input Connectors:
R6: NL4×2; R12: NL4×2
Power section
Total Power:
R6: 140W(RMS); 280W(PROGRAM); 560W(PEAK);R12: 900W(RMS); 1800W(PROGRAM); 3600W(PEAK)
Nominal Impedance (Ohm):
R6: 8Ω; R12: 4Ω
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
840 x 510 x 260mm / (33.1 x 20.1 x 10.2in)
Package Dimensions (W x D x H):
870 x 784 x 670mm / (34.3 x 30.9 x 26.4in)
Weight
Net Weight:
67 kg / 147.7 lb
Gross Weight:
87.5 kg / 192.9 lb
