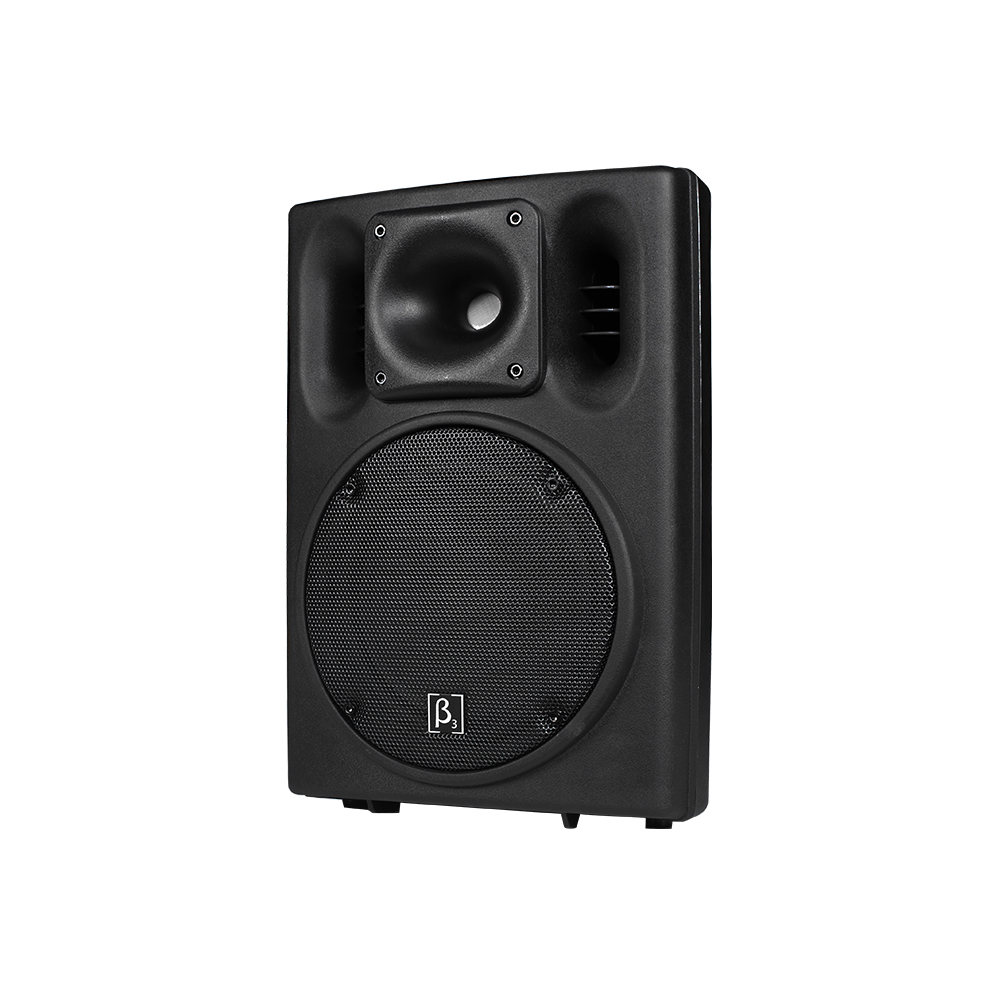

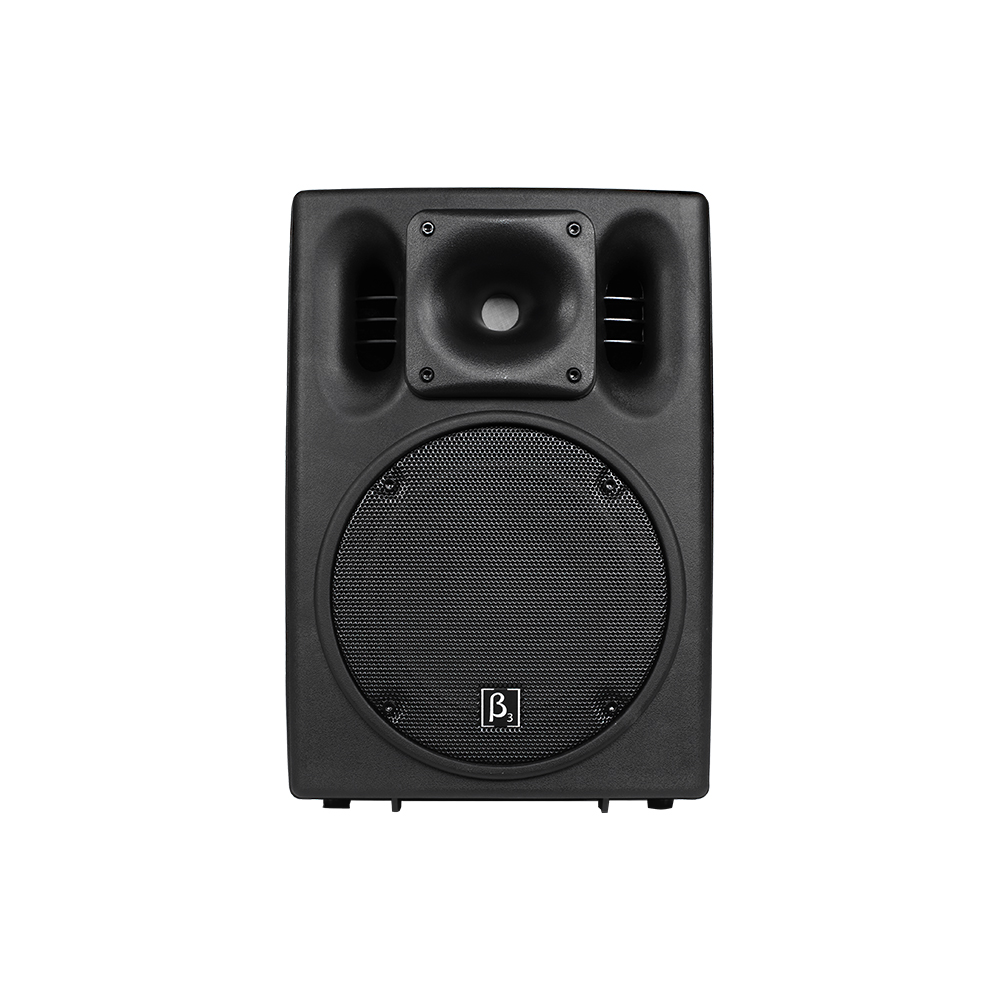

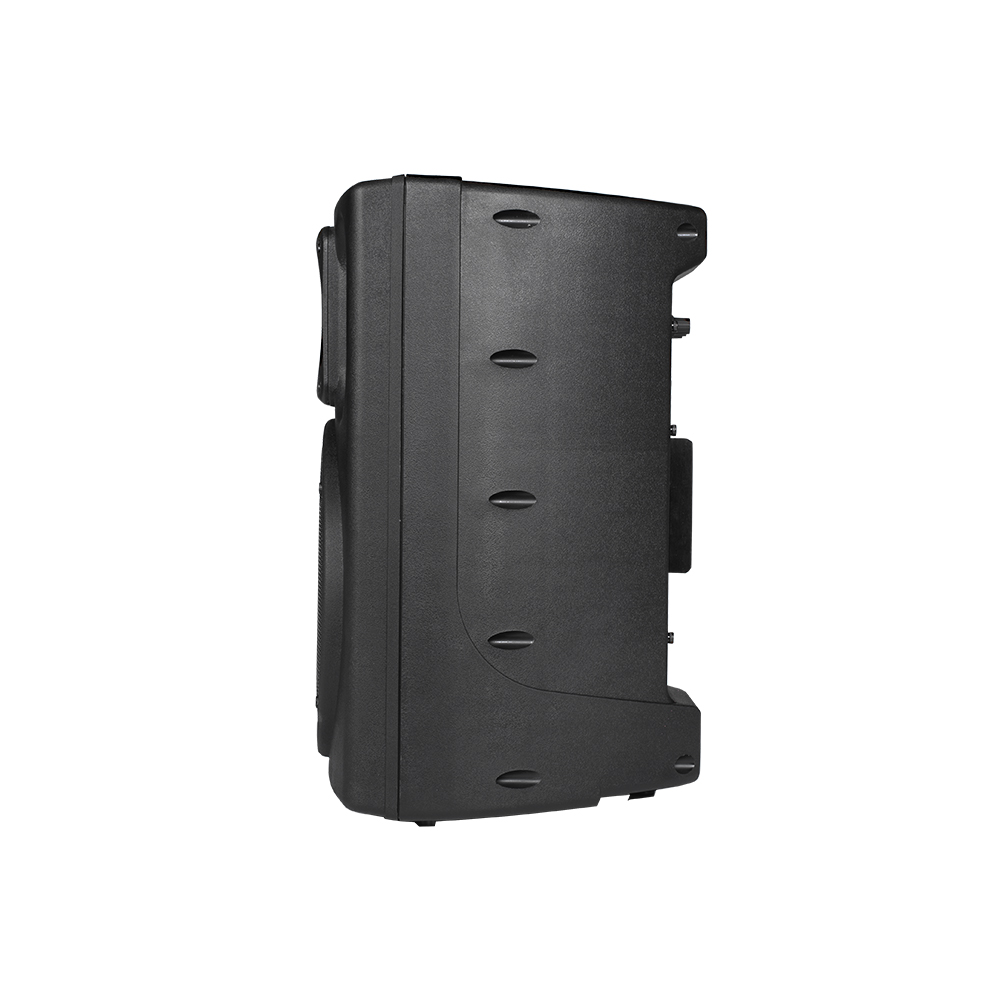

U8

8" Two Way Full Range Plastic Speaker

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The U Active Series delivers extraordinary performance at u


Features

  • Weatherproof version available
  • Painting in white colour available
  • High output SPL and sensitivity
  • 1 x 8” high power transducer with 50mm voice coil
  • 1 x 1.3” diaphragm compression driver
  • 90º x 60º controlled coverage pattern
  • Rotatable Horn
  • Heavy duty protective grill
  • Injection molded

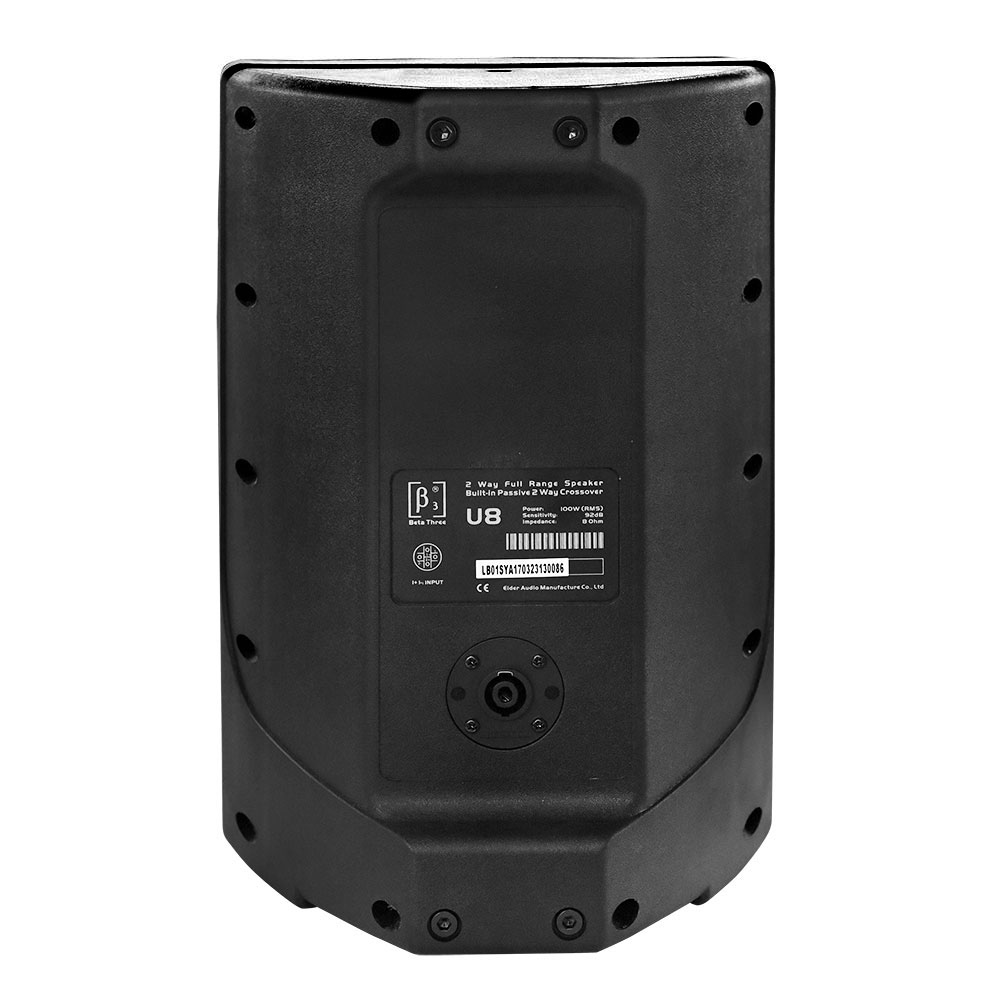

  • 1 x NL4 connector
  • Cabinet design for FOH and Monitor use
  • Suitable for use as a main system with or without sub speaker augmentation
  • Portable system (stand), or permanent installation (wall, ceiling, under balcony)
  • Arrays with all active high power U Series sub speakers for extended low
  • frequency, high quality music reproduction
  • Monitor kit - optional

Specifications

Acoustical specifications
Frequency Response(-3db):
75Hz-18kHz
Max SPL @ 1m:
111dB/117dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1.3" HF
Woofer:
1 x 8" LF
Input/Output section
Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
92dB
Power section
Total Power:
100W(RMS)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
277 x 257 x 400mm / (10.9 x 10.1 x 15.7in)
Package Dimensions (W x D x H):
595 x 310 x 460mm / (23.4 x 12.2 x 18.1in)
Weight
Net Weight:
6.5 kg / 14.3 lb
Gross Weight:
15 kg / 33.1 lb
