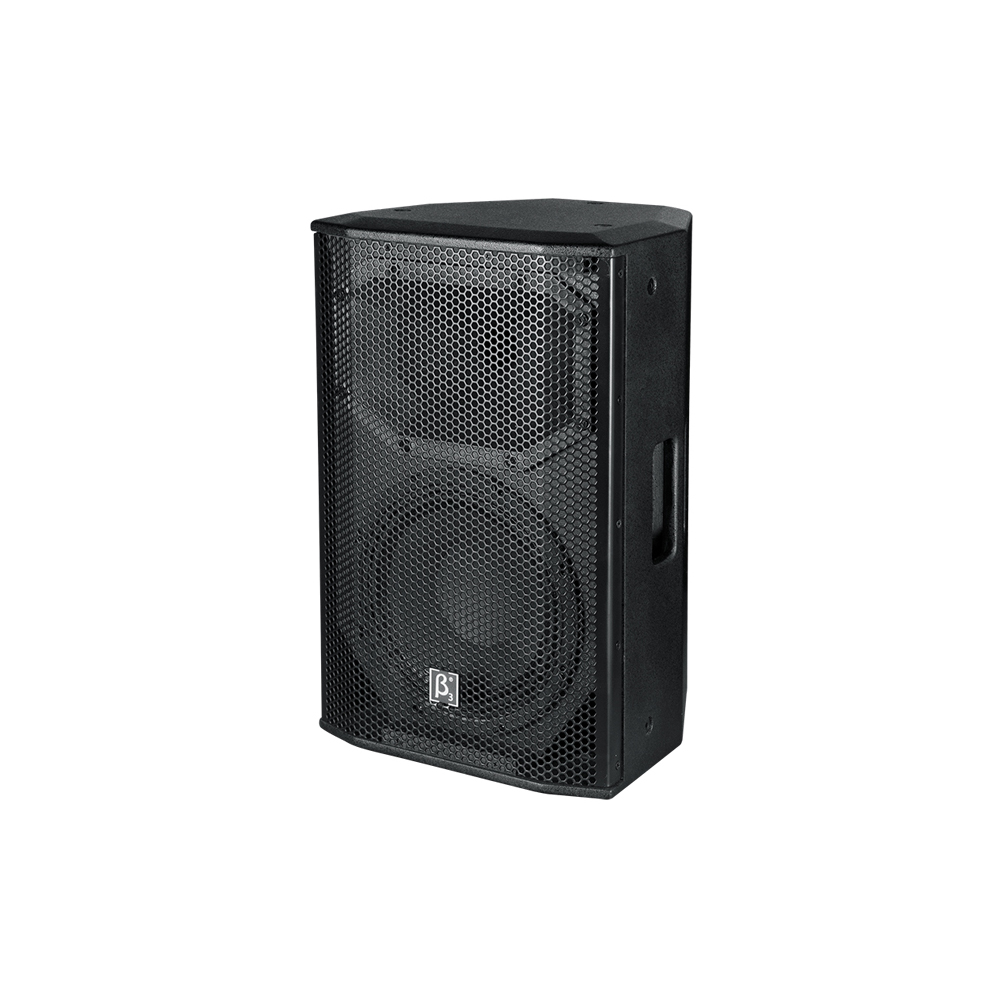

TW10a

10" Two Way Full Range Active Speaker

Portable and installed active loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in house of worship, events, clubs, rehearsal etc. Both active and passive version deliver extraordinary performance at unmatched value.


Features

  • High output SPL and sensitivity
  • Built-in high power amplifier module with DSP
  • Master volume control

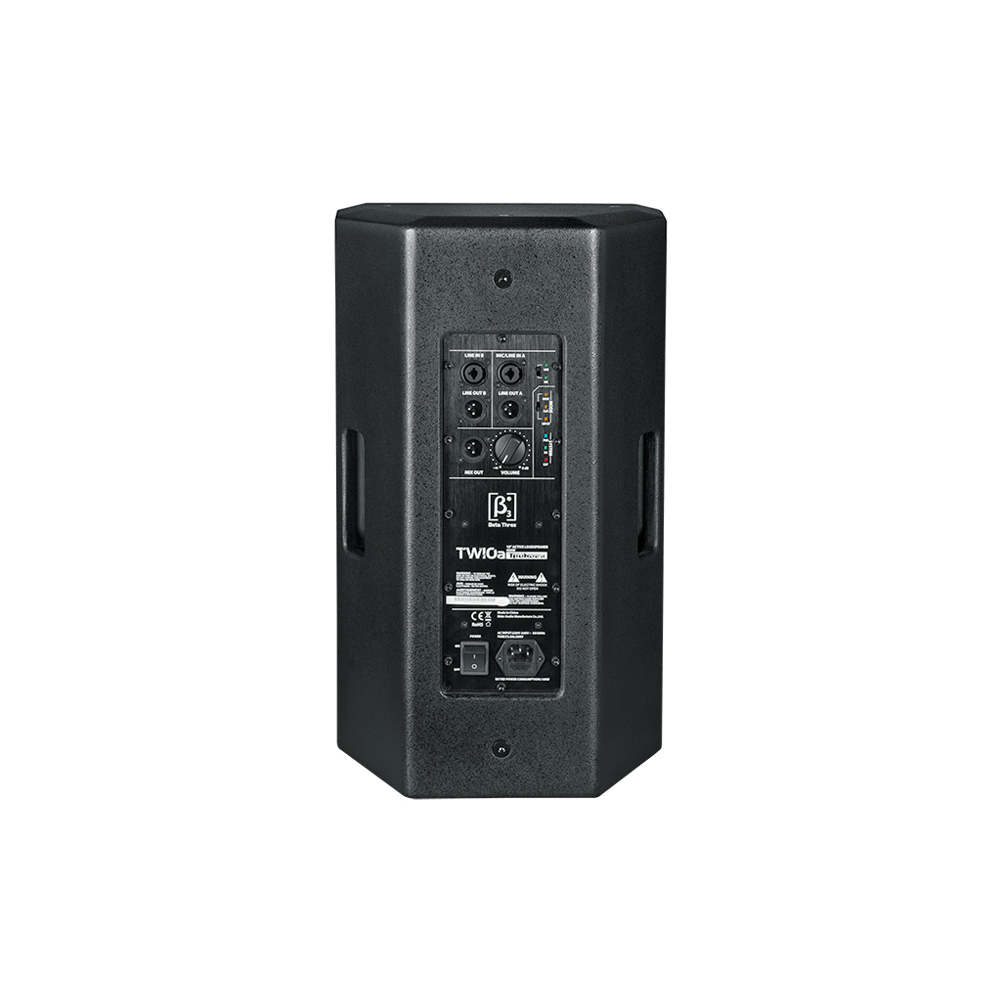

  • XLR input and output connectors
  • Smart sound quality adjustment
  • Integrated pole mount adaptor at bottom
  • Portable system (stand), or permanent installation (wall, ceiling, under balcony)
  • Suitable for use as a main system with or without sub speaker augmentation
  • Powder coated protective grill
  • Durable Polyurethane textured base paint

Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-19kHz
Max SPL @ 1m:
112dB/118dB(PEAK)
Dispersion (H x V):
80° x 70°
Transducers
Compression driver:
1 x 1.3" HF
Woofer:
1 x 10" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Power section
Total Power:
450W
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Hardware:
1 x wall mounting bracket (optional), 1 x U bracket (optional)
Color:
Black
Size

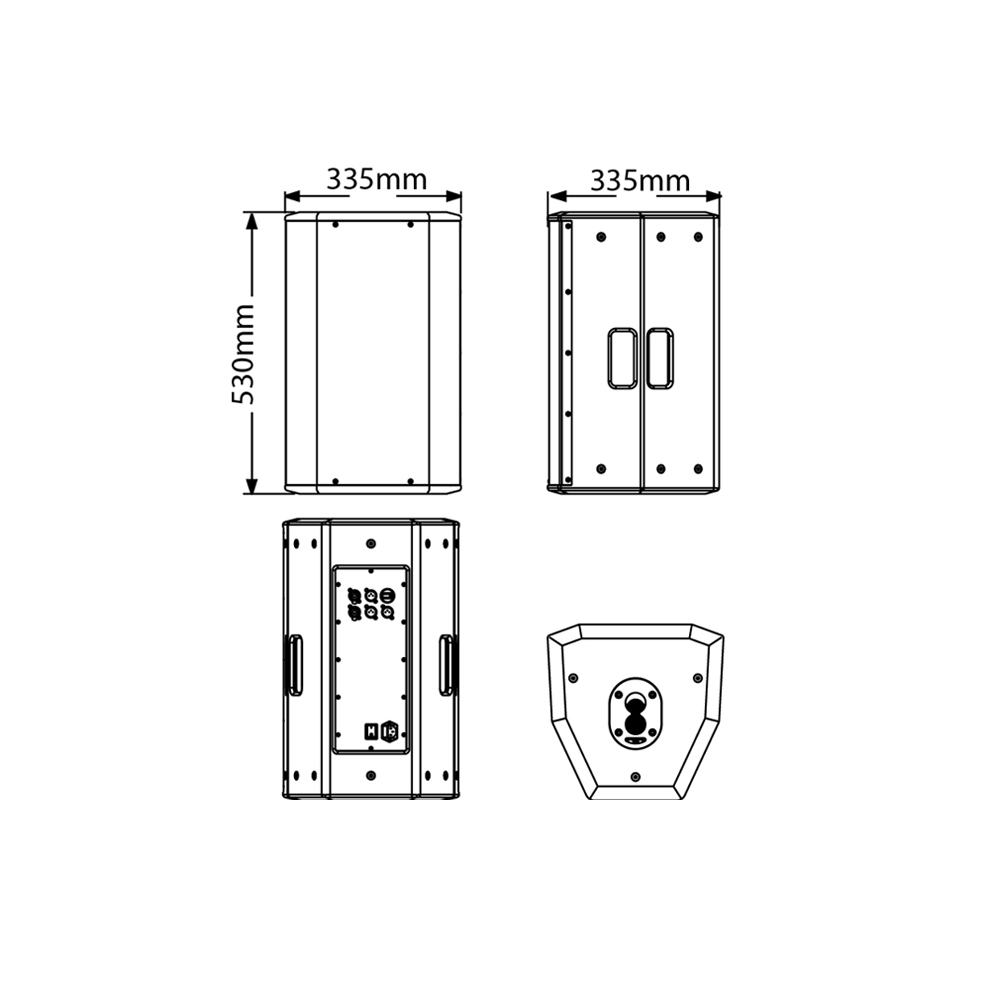

Dimension (W x D x H):
335 x 335 x 530mm / (13.2 x 13.2 x 20.9in)
Package Dimensions (W x D x H):
425 x 425 x 630mm / (16.7 x 16.7 x 24.8in)
Weight
Net Weight:
16.4 kg / 36.2 lb
Gross Weight:
18.5 kg / 40.8 lb
