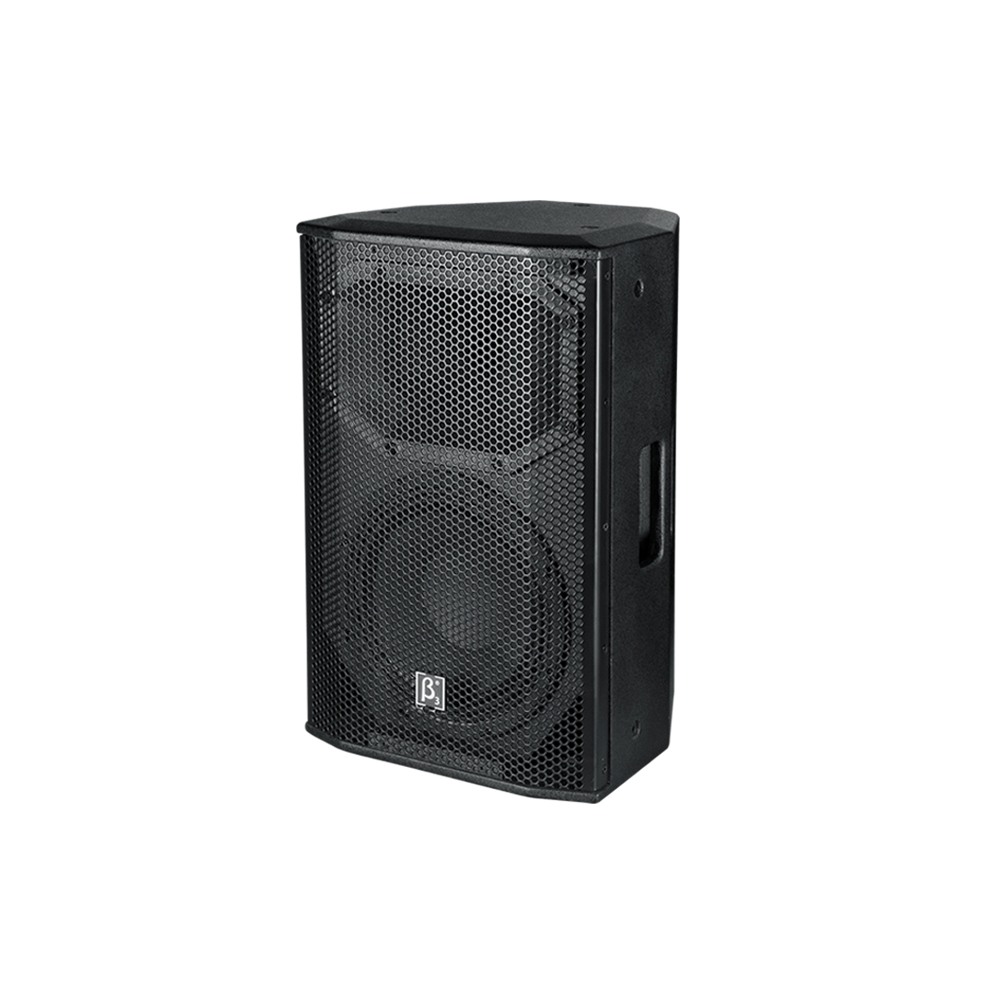

TW15 - 15" Two Way Full Range Speaker
TW15 - 15" Two Way Full Range Speaker

TW15

15" Two Way Full Range Speaker

Portable and installed loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in house of worship, events, clubs, rehearsal etc. Both active and passive version deliver extraordinary performance at unmatched value.


Features

  • High output SPL and sensitivity
  • SpeakOn input connectors
  • Integrated pole mount adaptor at bottom
  • Portable system (stand), or permanent installation (wall, ceiling, under balcony)
  • Suitable for use as a main system with or without sub speaker augmentation
  • Powder coated protective grill
  • Durable Polyurethane textured base paint

Specifications

Acoustical specifications
Frequency Response(-3db):
45Hz-17KHz
Max SPL @ 1m:
119dB/125dB(PEAK)
Dispersion (H x V):
50° x 55°
Transducers
Compression driver:
1 x 1.7 HF Compression Driver
Woofer:
1 x 15" LF
Input/Output section
Input Connectors:
1 x NL4
Output connectors:
1 x NL4
Sensitivity (1W @ 1m):
96dB
Power section
Total Power:
300W(RMS); 600W(PROGRAM); 1200W(PEAK)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):

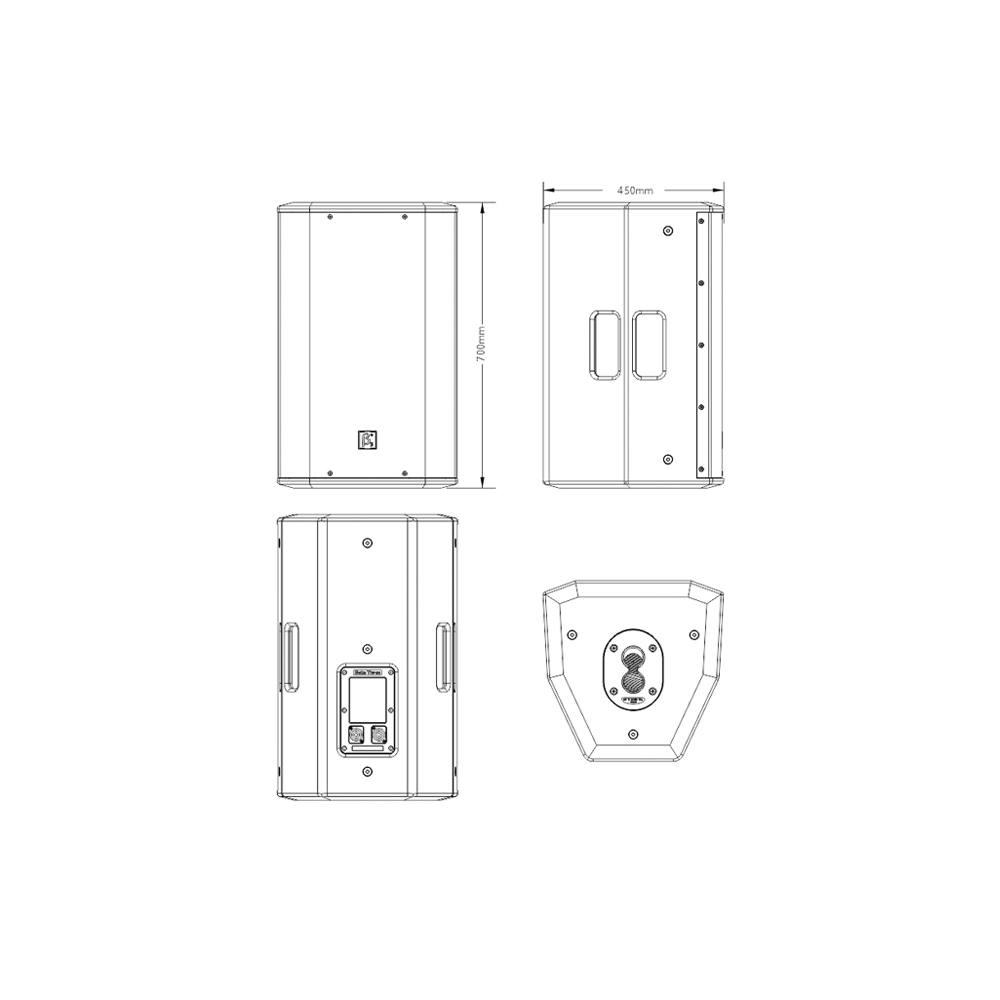

450 x 450 x 700mm / (17.7 x 17.7 x 27.6in)
Package Dimensions (W x D x H):
560 x 560 x 820mm / (22 x 22 x 32.3in)
Weight
Net Weight:
27.6 kg / 60.8 lb
Gross Weight:
31 kg / 68.3 lb

TW15 Application

    TW15 Installation

      TW15 Parts

        TW15 Cases

          TW15 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_TW15_PA_Chinese_Manualβ3_TW15_PA_Chinese_Manual 1β3_TW15_PA_Chinese_Manual  1144.61KB 2018-07-12 02:25:39
              β3_TW15_PA_English_Manualβ3_TW15_PA_English_Manual 1β3_TW15_PA_English_Manual  906.93KB 2018-07-12 02:25:39
