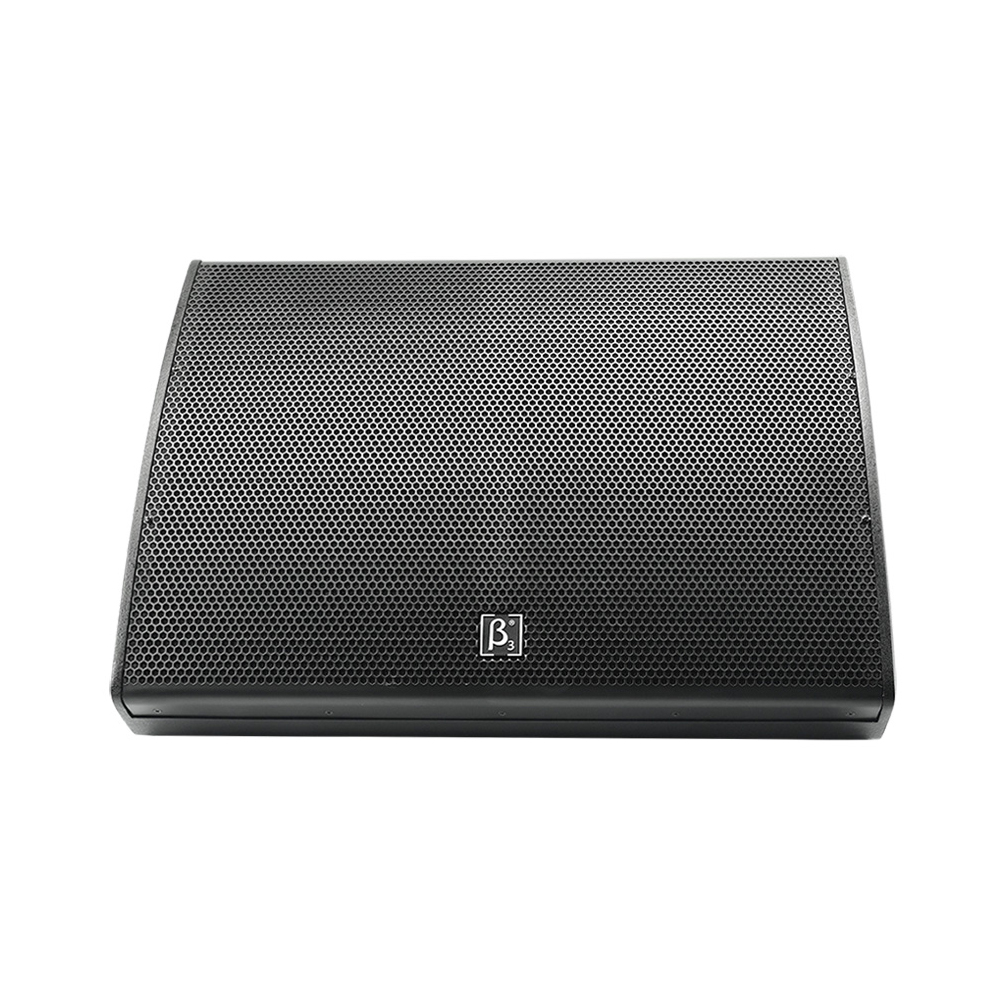

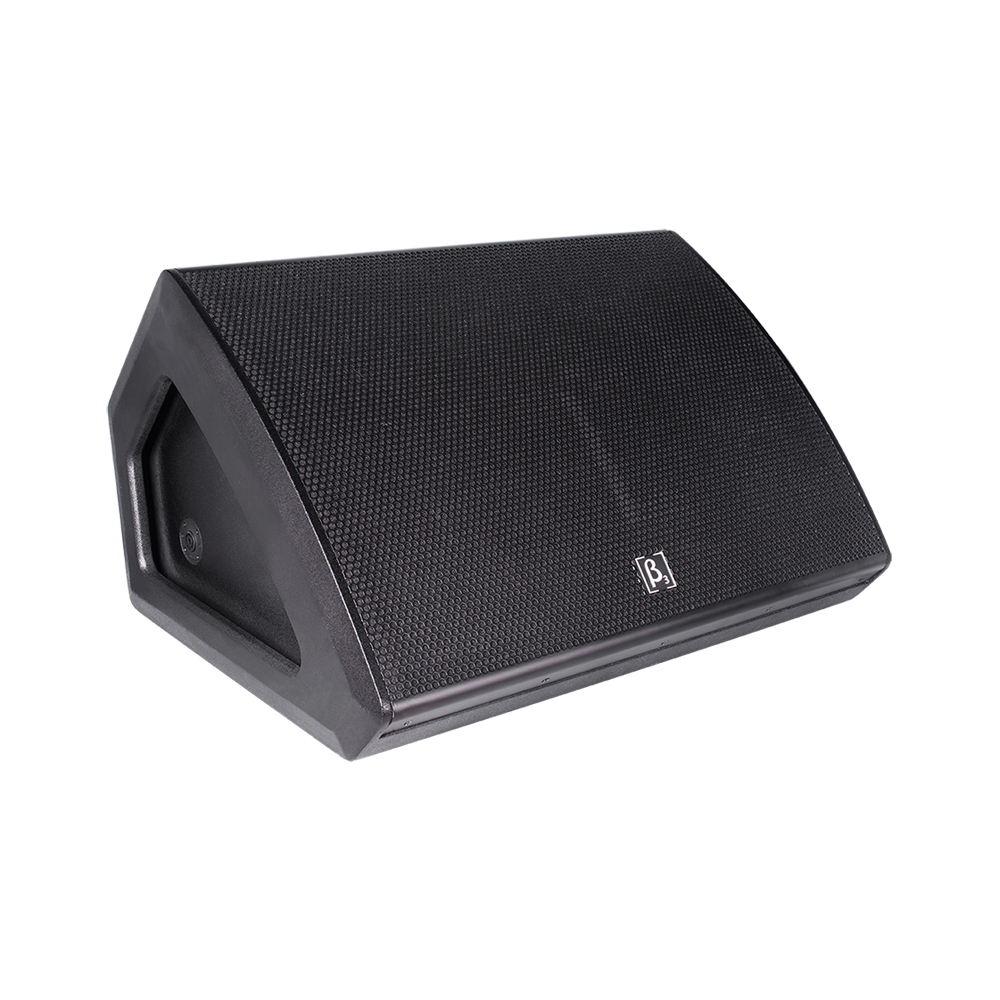

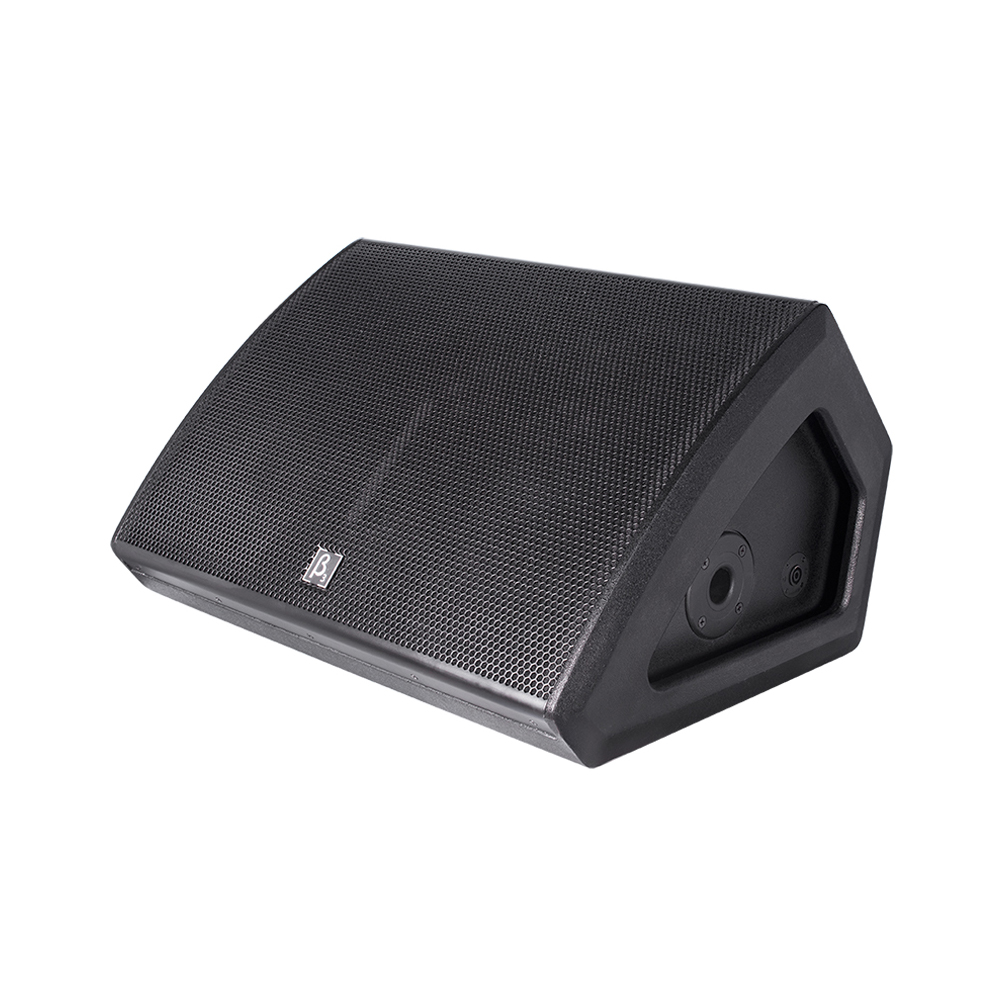

TW212M

Dual 12" Two Way Monitor

TW212M is a passive Dual 12" Two-way High SPL monitor. Strict quality control during the R&D, manufacturing, materials inspection, procedure inspection and shipment inspection make sure every unit meet the high standard demand.

The cabinet is made of high intensity PLY board. Special multi-layer black painting with scratch-resistant and erode-resistant feature protect the cabinet surface perfect. Built-in crossover circuit and different voltage output offer more options for users.

The transducers used are optimized by experienced engineers. To get excellent performance, the engineers take a lot of advanced technology to decrease the magnetic impedance and lower the magnetic leakage, and not increase the transducer weight.


Features

  • Dual 12" Ferrite woofer with 3" voice coil
  • Ferrite compression driver with 3" voice coil
  • Dispersion 45 ×100
  • Monitor angle 50
  • Sensitivity is 100dB, Max. SPL is 132dB
  • RMS power is 500W, peak power is 2000W
  • Ergonomic cabinet design

Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-18kHz
Max SPL @ 1m:
126dB/132dB(PEAK)
Dispersion (H x V):
45° x 100°
Transducers
Compression driver:
1 x 3" HF
Woofer:
2 x 12" LF
Input/Output section
Input Connectors:
Input: 1 x NL4; Output: 1 x NL4
Sensitivity (1W @ 1m):
100dB
Processor section
Crossover frequencies:
1.6kHz
Power section
Total Power:
500W(RMS); 1000W(MUSIC); 2000W(PEAK)
Nominal Impedance (Ohm):
Voltage range:
110V/220V
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
740 x 554 x 407mm / (29.1 x 21.8 x 16in)
Package Dimensions (W x D x H):
665 x 515 x 865mm / (26.2 x 20.3 x 34.1in)
Weight
Net Weight:
32.5 kg / 71.7 lb
Gross Weight:
36.5 kg / 80.5 lb
