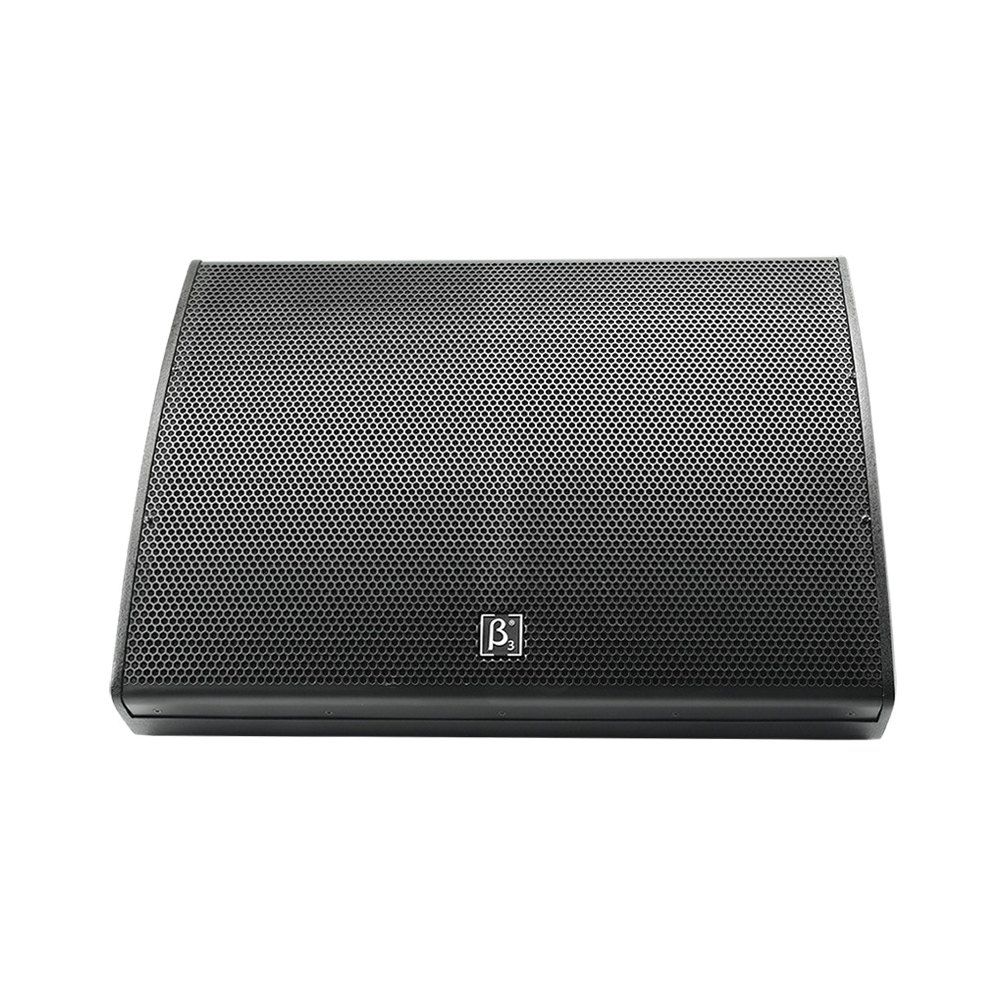

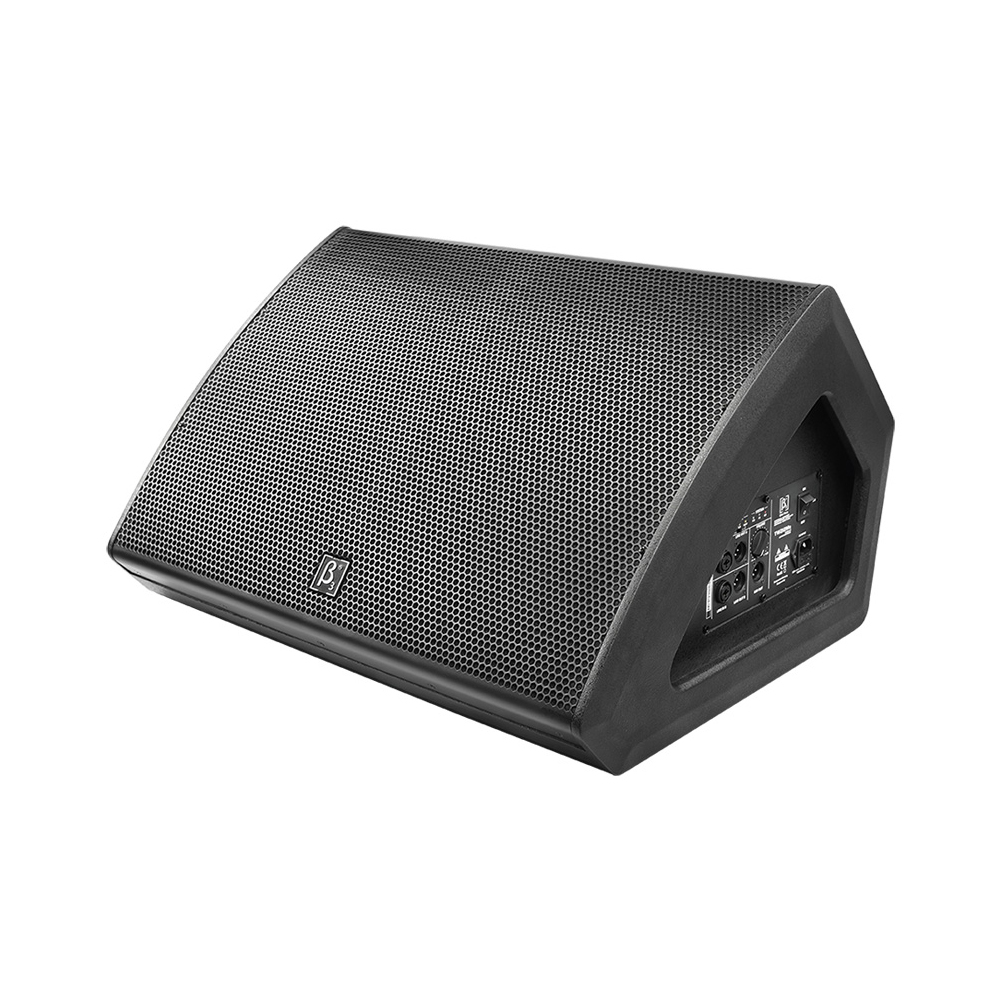

TW212Ma

Active Dual 12" Two-way Monitor

TW212Ma is Active Dual 12" Two-way High SPL Monitor Loudspeaker. Strict quality control during the R&D,manufacturing, materials inspection, procedure inspection and shipment inspection make sure very unit meet the high standard demand.

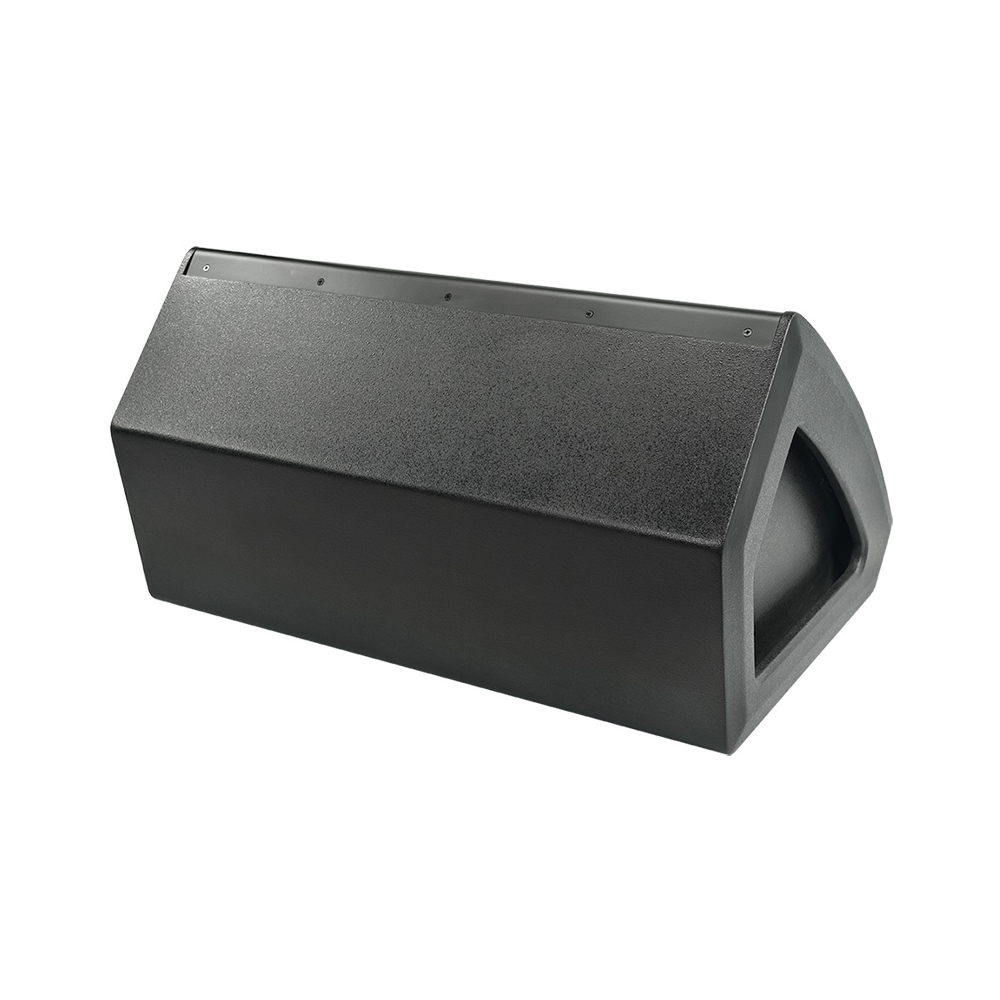

The cabinet is made of high intensity PLY board. Special multilayer black painting with scratch-resistant and erode resistant feature protect the cabinet surface perfect. Selected POLYESTER damping materials absorb cabinet cabinet stand wave effectively.Built-in crossover circuit and different voltage output give the user more options.

Aiming at this special cabinet, the transducers used are optimized by our experienced engineers, whom focus on the magnetic system and vibration system. To get the excellent performance, the engineers take a lot of advanced technology to decrease the magnetic impendence and lower the magnetic leakage, and not increase the transducer weight.


Features

  • Dual 12" Ferrite woofer with 3" voice coil
  • Ferrite compression driver with 3" voice coil
  • Dispersion: 45° ×100° .
  • Monitor angle 50°
  • MAX.SPL: 130dB/136dB(PEAK).
  • Frequency response range: 55Hz-18kHz (-3dB)
  • Ergonomic cabinet design

Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-18kHz
Max SPL @ 1m:
130dB/136dB(PEAK)
Dispersion (H x V):
45° x 100°
Transducers
Compression driver:
1 x 3" HF
Woofer:
2 x 12" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 2kΩ

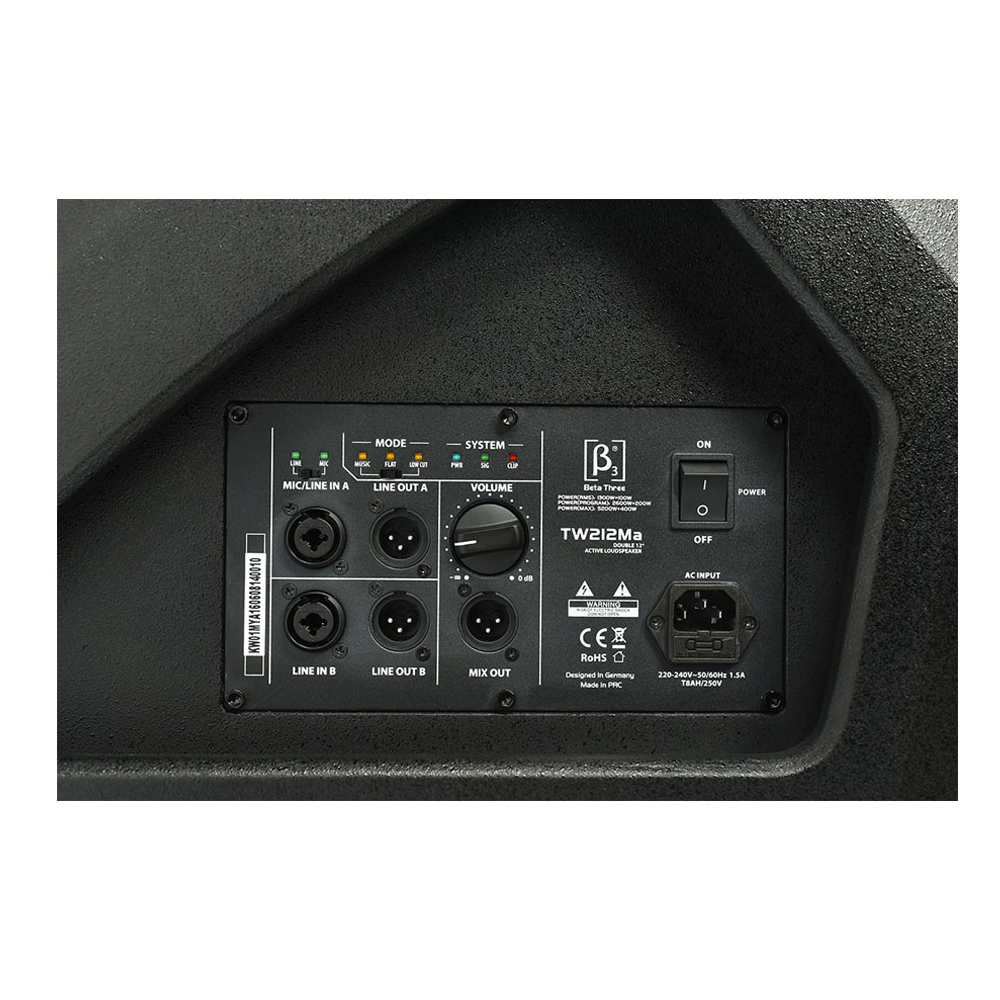

Input Connectors:
Input: 2 x Combo(one with Mic/Line switch), Output: 3 x XLR
Power section
Total Power:
1500W(RMS)
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
740 x 554 x 407mm / (29.1 x 21.8 x 16in)
Package Dimensions (W x D x H):
665 x 515 x 865mm / (26.2 x 20.3 x 34.1in)
Weight
Net Weight:
33 kg / 72.8 lb
Gross Weight:
37 kg / 81.6 lb
