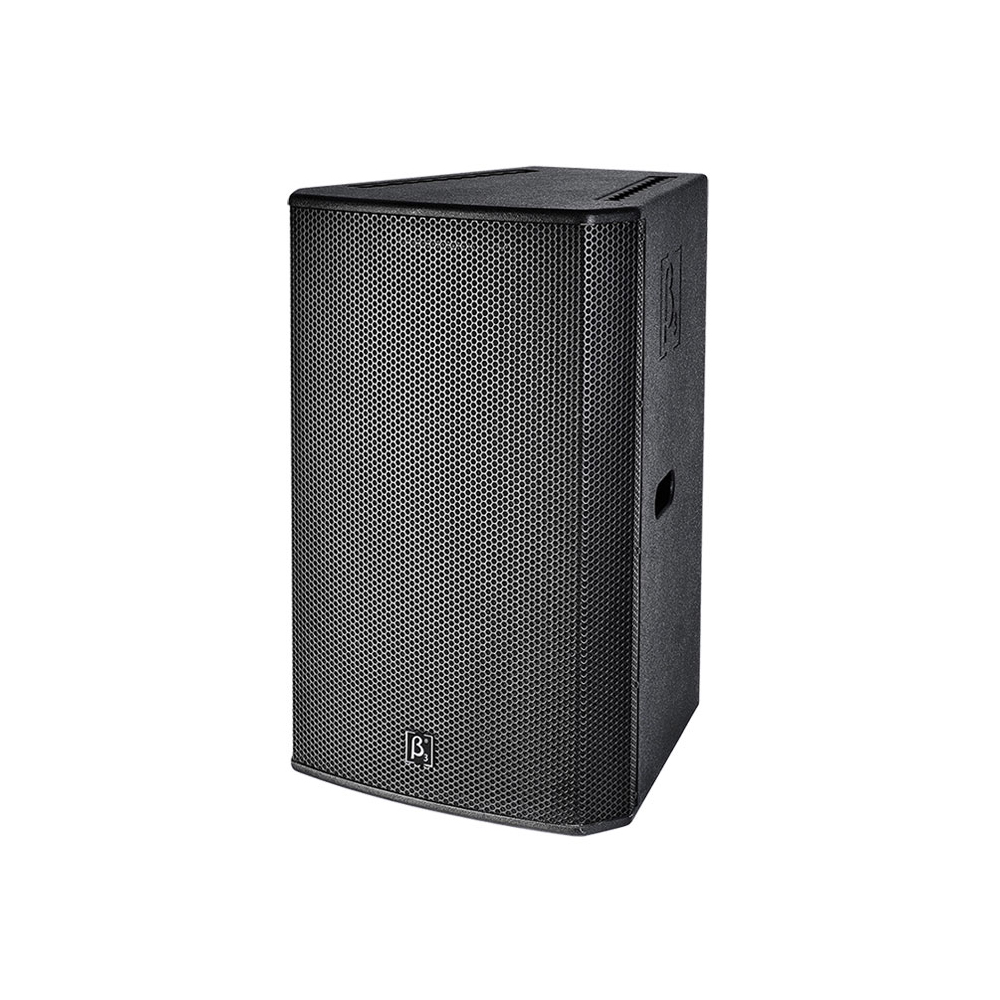

MU15 - 15” Two Way Full Range Speaker
MU15 - 15” Two Way Full Range Speaker

MU15

15” Two Way Full Range Speaker

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The MU Series delivers extraordinary performance at unmatched value.


Features

  • High output SPL and sensitivity
  • 1 x 15” high power Neodymium transducer with 75mm voice coil
  • 1 x 3” compression driver
  • 60º x 40º coverage pattern
  • 2 x NL4 connectors
  • Computer aided design to optimise frequency and phase response
  • Cabinet design for FOH use
  • Suitable for use as a main system with or without sub speaker augmentation
  • Portable system (stand), or permanent installation (wall, ceiling, under balcony)
  • Adjustable flying track on the top and bottom of the speaker
  • Arrays with MU12B, MU12Ba, MU18B and MU18Ba high power sub speakers for
  • extended low frequency, high quality music reproduction
  • Powder coated grill with foam backing
  • Durable Polyurethane textured base paint
  • 1 x NL4 connector included in packaging

Specifications

MU15 Application

    MU15 Installation

      MU15 Parts

        MU15 Collocation

          Videos

            Downloads

            FilenameVersionLanguageSizeUpdated
            β3_MU15_PA_Chinese_Manualβ3_MU15_PA_Chinese_Manual 1β3_MU15_PA_Chinese_Manual  1306.04KB 2018-07-12 02:25:39
            β3_MU15_PA_English_Manualβ3_MU15_PA_English_Manual 1β3_MU15_PA_English_Manual  1046.78KB 2018-07-12 02:25:39
