Meline Series PA System

Meline Series PA System

The Beta Three® Meline series is a series of highly versatile and ultra-compact portable PA systems perfectly suited for DJs, musicians, presenters, and other live performances accommodating up to 300 audiences. All members in the Meline series are lightweight, low-profile, and extremely easy to set up and transport. Innovative DSP onboard allows users to have control over various presets, and users can stream music wirelessly from their smart devices using the Bluetooth technology.

Meline S2 - Small PA speaker system
Meline S2 - Small PA speaker system
Meline S2 - Small PA speaker system
Meline S2 - Small PA speaker system
Meline S2 - Small PA speaker system
Meline S2 - Small PA speaker system

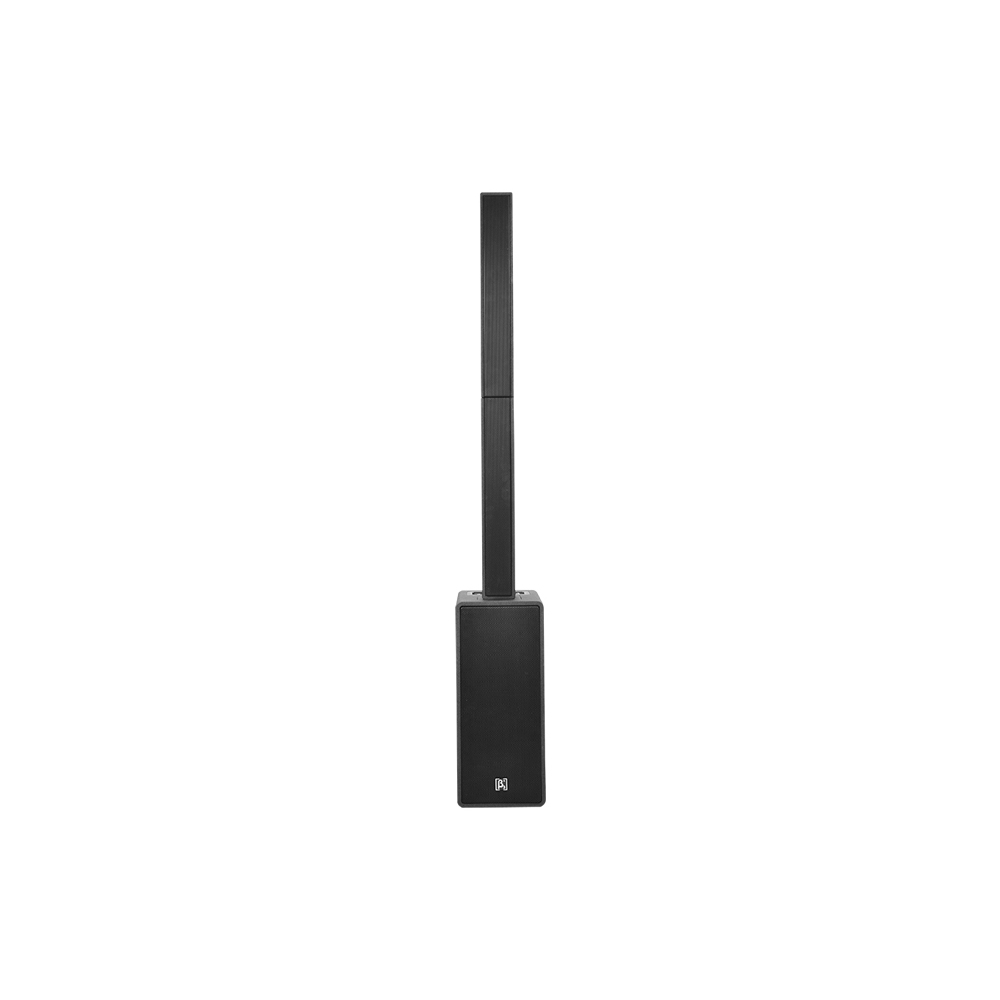

Meline S2

Small PA speaker system

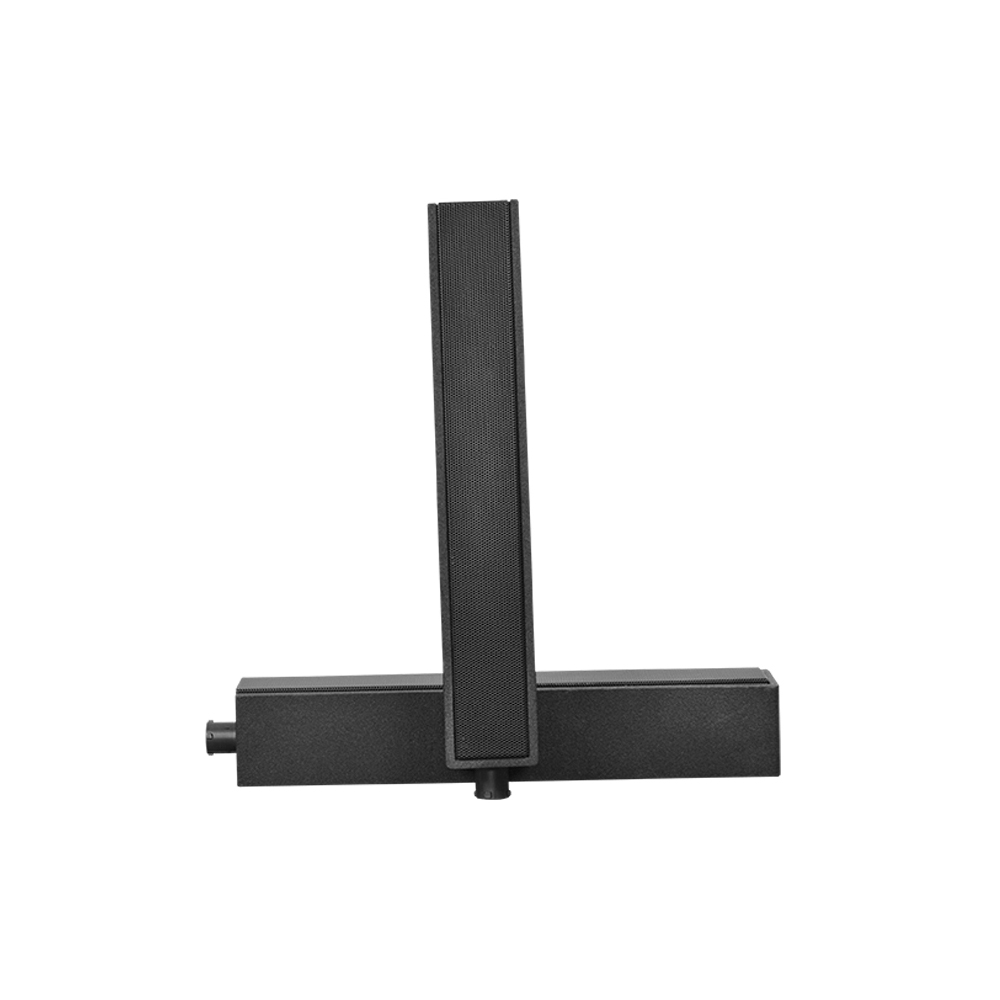

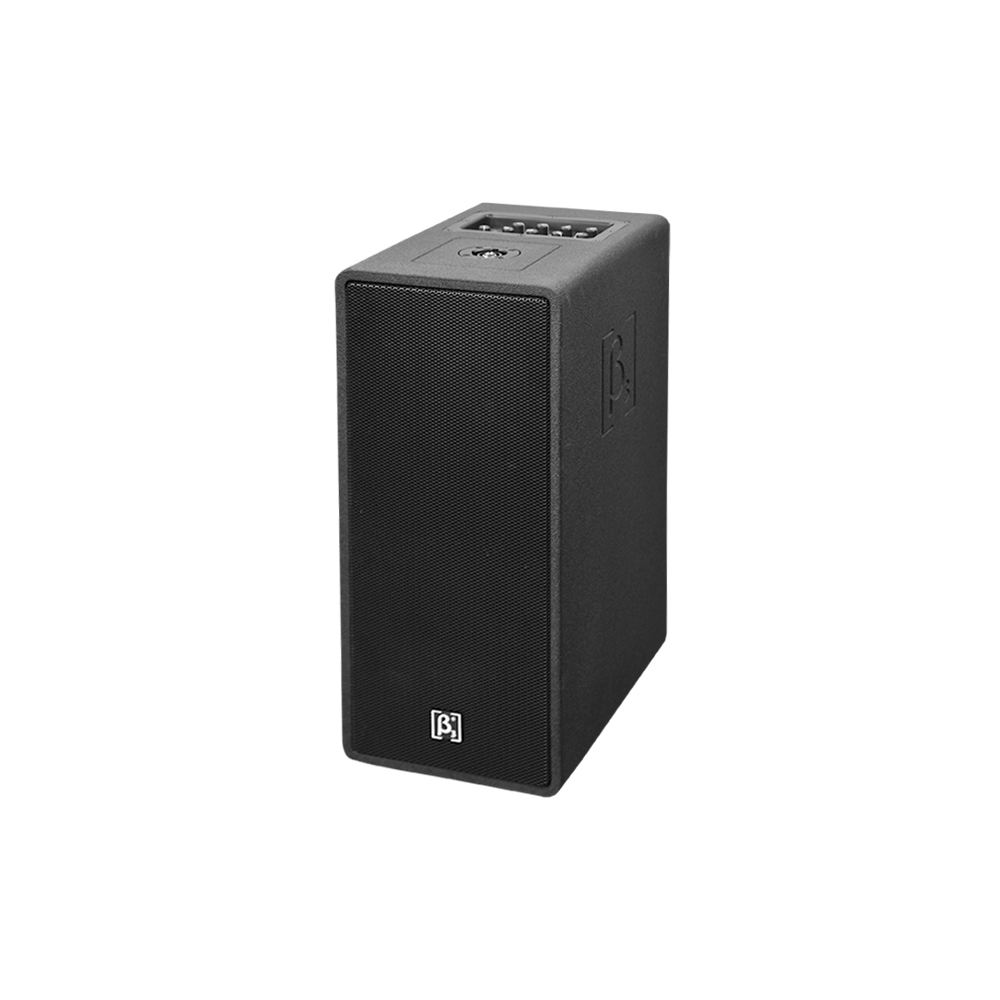

Meline S2 is a compact portable sound reinforcement system designedfor musicians, meeting room presentation, DJ's etc for an audience up to 200. The three piece system allows quick and easy setup with patent pending "LOCK" together interconnecting speakers. The amplifier module is housed within the subwoofer and the bi-amp module includes DSP to enable superior performance.


Features

  • Compact portable and eye catching design
  • 1.8 meter tower sound system, high power output and natural sound
  • Vented dual 6.5” subwoofer dive deep bass and 12x2.75” full-range units deliver smooth sound at wide coverage
  • Separated Class D module for subwoofer and CLASS AB module for full-range, including multiple DSP preset

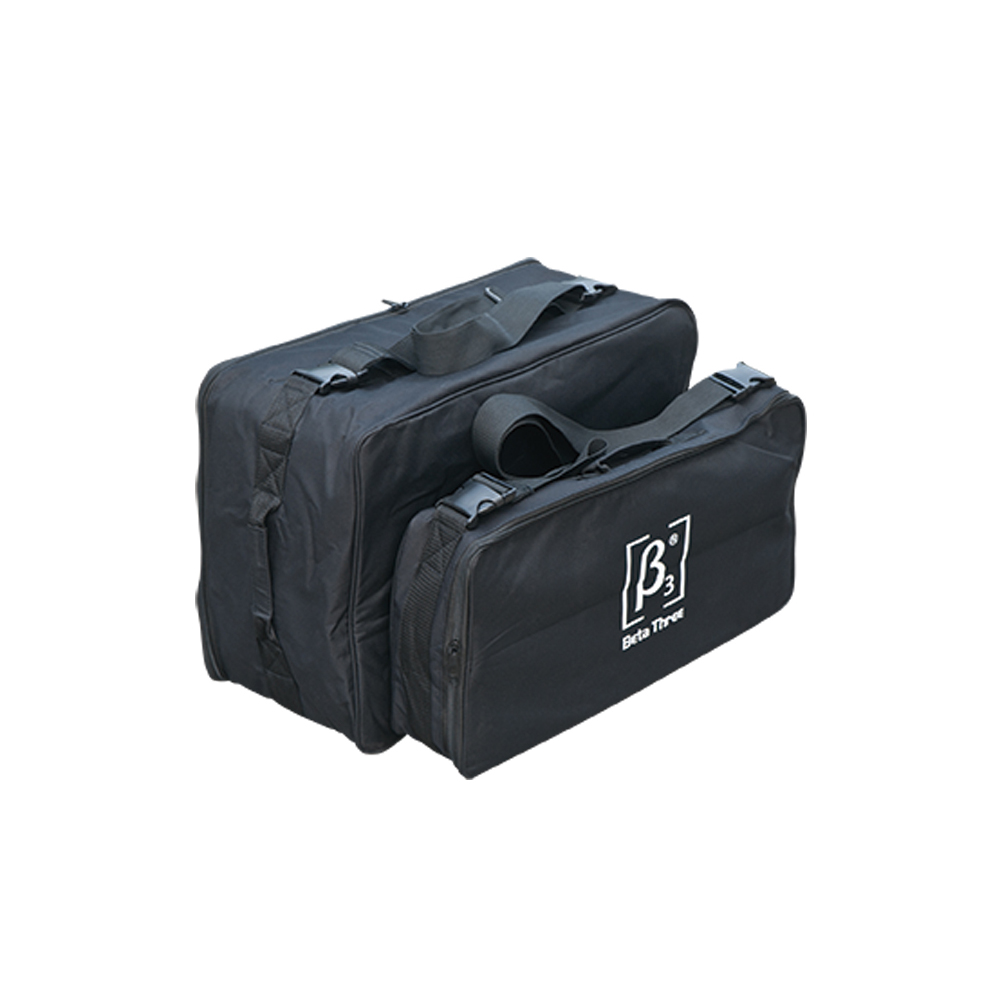

  • Specialized carry bag for ease of transportation

Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-20kHz
Max SPL @ 1m:
113dB/119dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
2 x 25mm Silk Dome Tweeters
Midrange:
12 x 2.75" Midrange Unit
Woofer:
2 x 6.5" Woofer
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
XLR inputs, XLR outputs
Power section
Total Power:
800W(RMS); 1600W(MUSIC); 3200W(PEAK);
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
Plywood
Handles:
1 x Wooden handles
Grille:
Polyurethane paint; powder coated grille
Color:
Black

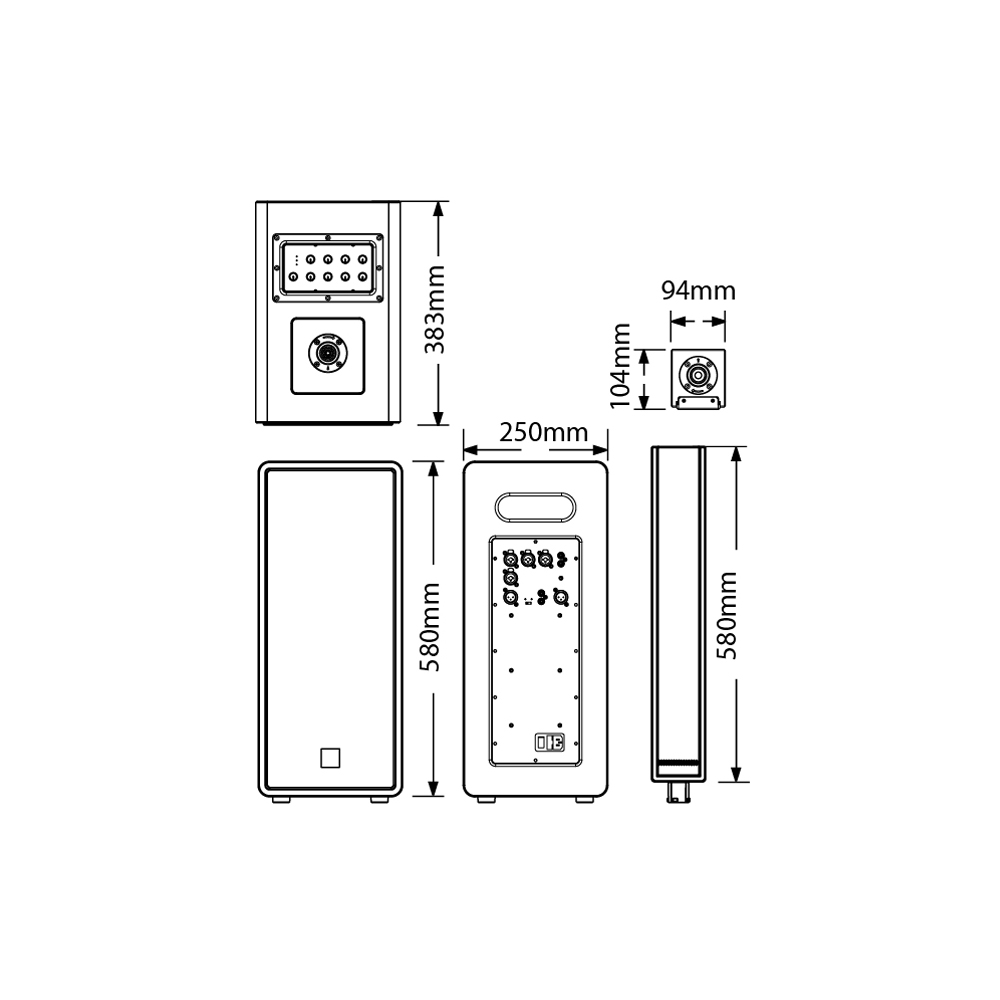

Size
Dimension (W x D x H):
250 x 388 x 1752mm / (9.8 x 15.3 x 69in)
Package Dimensions (W x D x H):
610 x 350 x 700mm / (24 x 13.8 x 27.6in)
Weight
Net Weight:
21 kg / 46.3 lb
Gross Weight:
23 kg / 50.7 lb

Meline S2 Application

    Meline S2 Installation

      Meline S2 Parts

        Meline S2 Cases

          Meline S2 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              Meline S2β3 Meline S2 Datasheet 1.0Meline S2  200KB 2022-05-22 07:51:28
