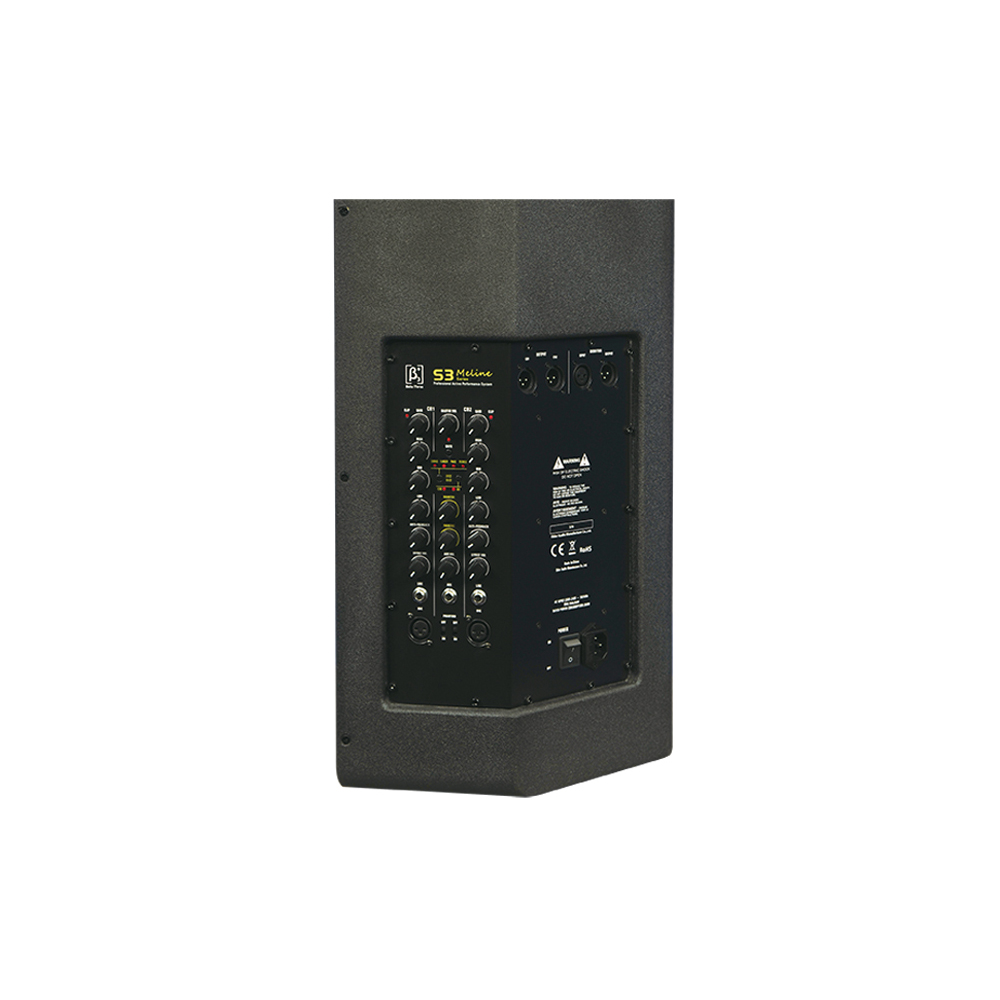

Meline S3

Small PA speaker system subwoofer

Meline S2 is a compact portable sound reinforcement system designed for musicians, meeting room presentation, DJ’s etc for an audience up to 300. Total three pieces system allows quick and easy setup with patent pending “CLOCK” together interconnecting speakers. The amplifier module is housed within the subwoofer and this bi-amp module includes DSP to enable superior performance.


Features

  • Compact portable and eye catching design
  • 1.8 meter tower sound system, high power output and natural sound
  • Vented dual 6.5” subwoofer dive deep bass and 12x2.75” full-range units deliver smooth sound at wide coverage
  • Separated Class D module for subwoofer and CLASS AB module for full-range, including multiple DSP preset
  • Specialized carry bag for ease of transportation

Specifications

Acoustical specifications
Frequency Response(-3db):
45Hz-250Hz
Max SPL @ 1m:
113dB/119dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
2 x 25mm Silk Dome Tweeters
Midrange:
12 x 2.75" Midrange Unit
Woofer:
2 x 8" Woofer
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
XLR/TRS COMBO,RCA, 3.5mm JACK
Power section
Total Power:
800W
Nominal Impedance (Ohm):
Voltage range:
AC 220V-230V~, 50Hz/60Hz
Physical specifications
Cabinet/Case Material:
12mm Birch Plywood
Color:
Black
Size
Dimension (W x D x H):
250 x 400 x 1726mm / (9.8 x 15.7 x 68in)
Package Dimensions (W x D x H):
610 x 350 x 700mm / (24 x 13.8 x 27.6in)
Weight
Net Weight:
23 kg / 50.7 lb
Gross Weight:
25 kg / 55.1 lb
