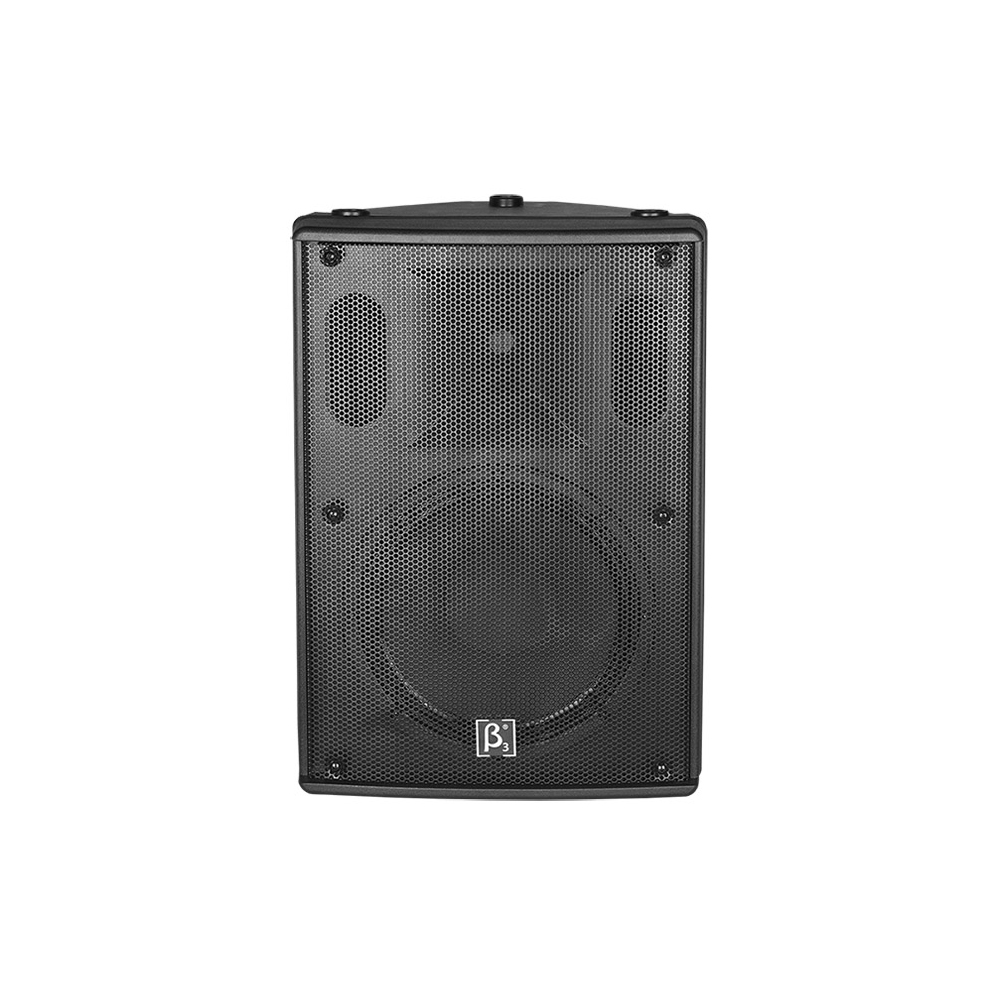

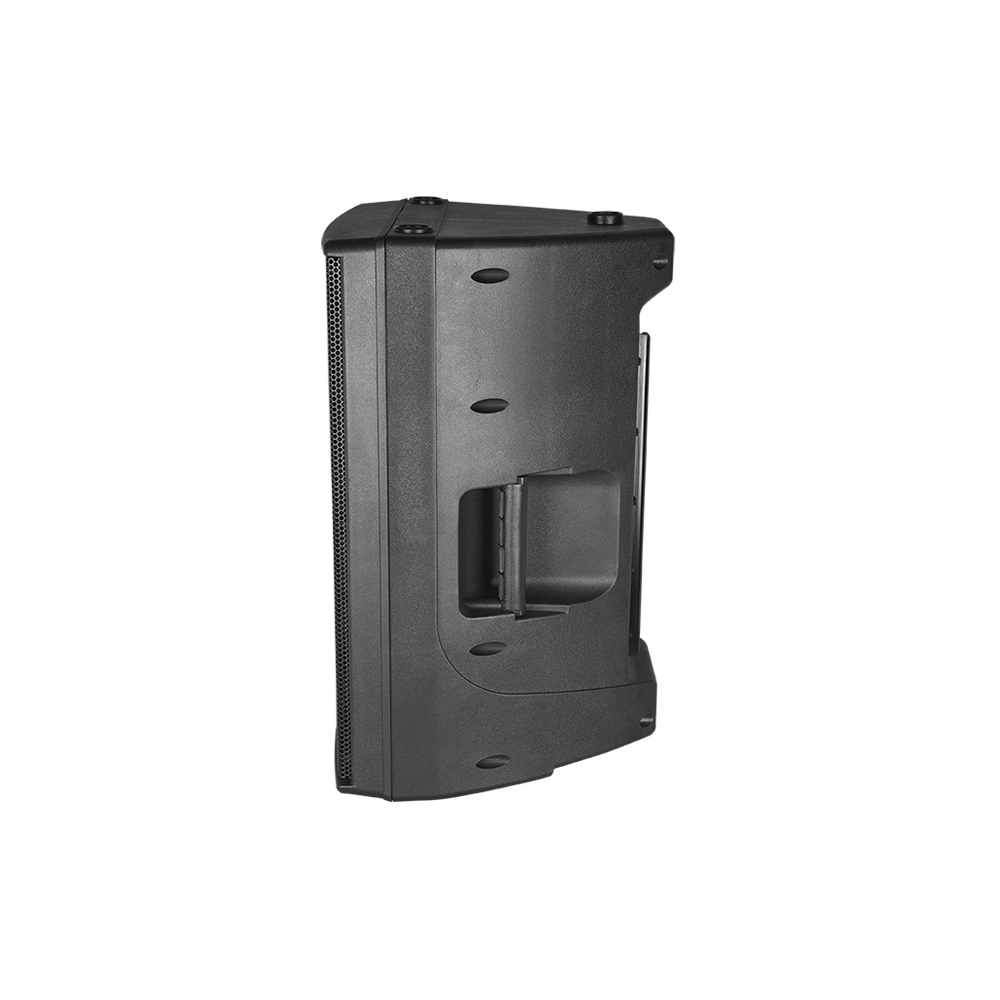

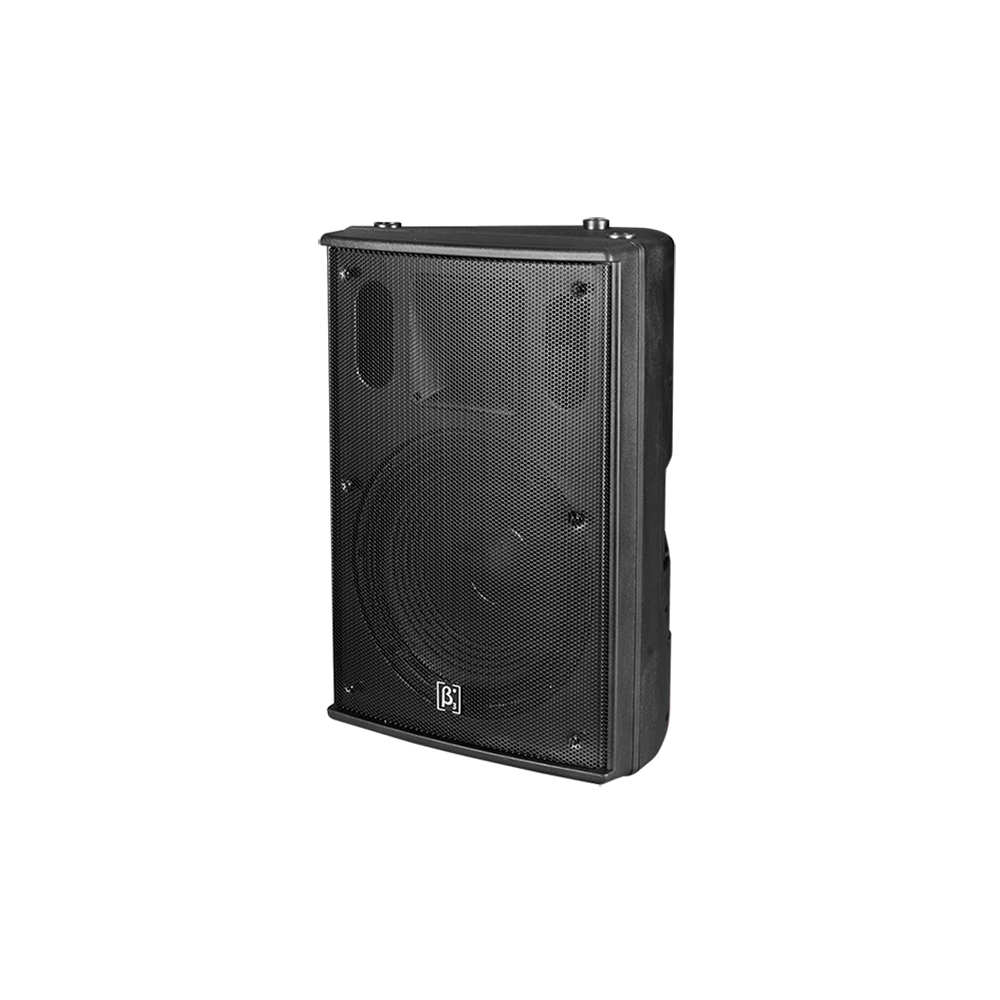

V122a-MP3

12" Two Way Full Range Active Plastic Speaker(Build-in MP3 player)

The Beta Three® V122a is designed for portable and installed applications. The integrated polymer PVC cabinet design ensures durability and full natural high performance sound. The V122a is a full range active speaker with a 400W Class D amplifier module. The high powered 12" woofer delivers powerful low frequency and the 34mm Titanium compression driver delivers high definition mid/high frequencies.


Features

  • Build-in amplifier, build-in MP3 player
  • Compact light weight design, versatile sound reinforcement.
  • High output SPL and sensitivity.
  • Built-in digital amplifier provides abundant energy.
  • Heavy duty protective front grill.
  • Pole mount socket for speaker stand.
  • Suitable as a main system with or without sub speaker.

Specifications

Acoustical specifications
Frequency Response(-3db):
55Hz-20kHz
Max SPL @ 1m:
122dB/128dB(PEAK)
Dispersion (H x V):
85° x 75°
Transducers
Compression driver:
1 x 1.4" HF
Woofer:
1 x 12" Woofer
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
XLR K3P
Power section
Total Power:
500W
Nominal Impedance (Ohm):
Voltage range:
110V/220V
Standard compliance
CE marking:
Yes
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
415 x 385 x 629mm / (16.3 x 15.2 x 24.8in)
Package Dimensions (W x D x H):
465 x 435 x 680mm / (18.3 x 17.1 x 26.8in)
Weight
Net Weight:
17 kg / 37.5 lb
Gross Weight:
19.5 kg / 43 lb
