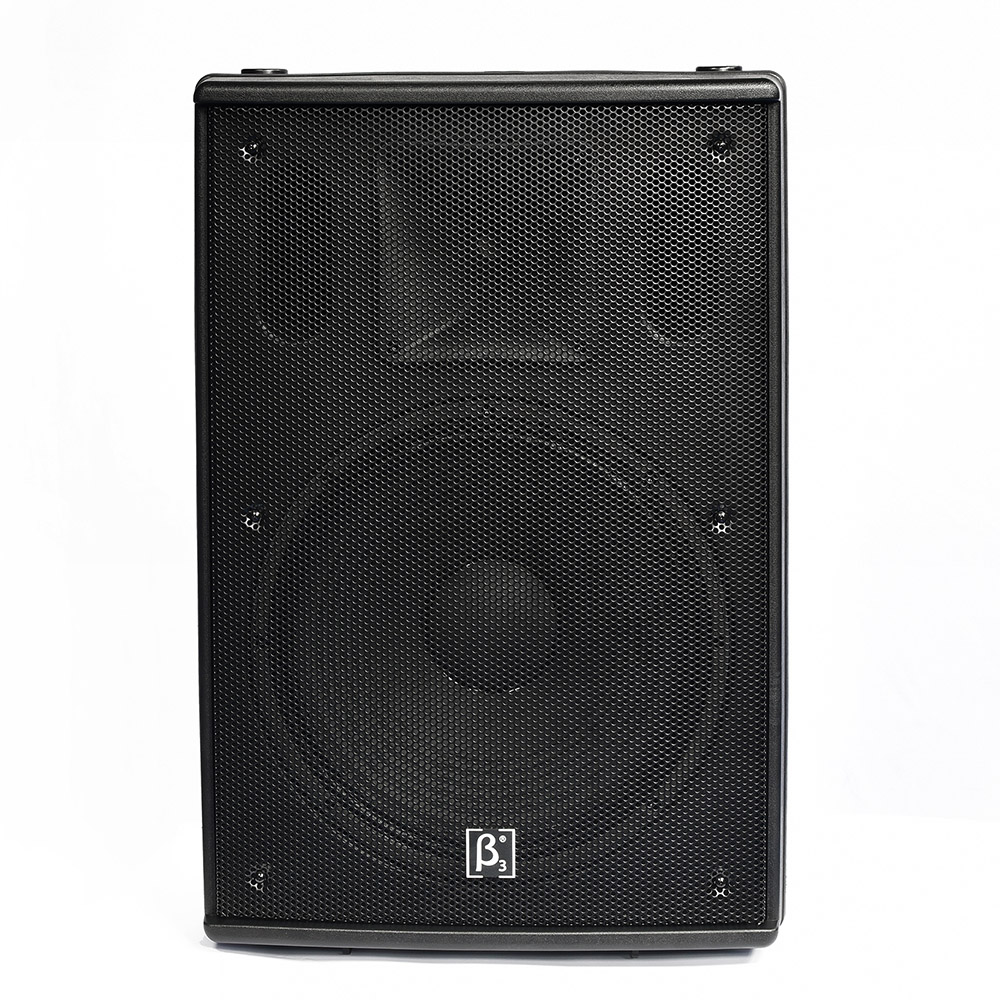

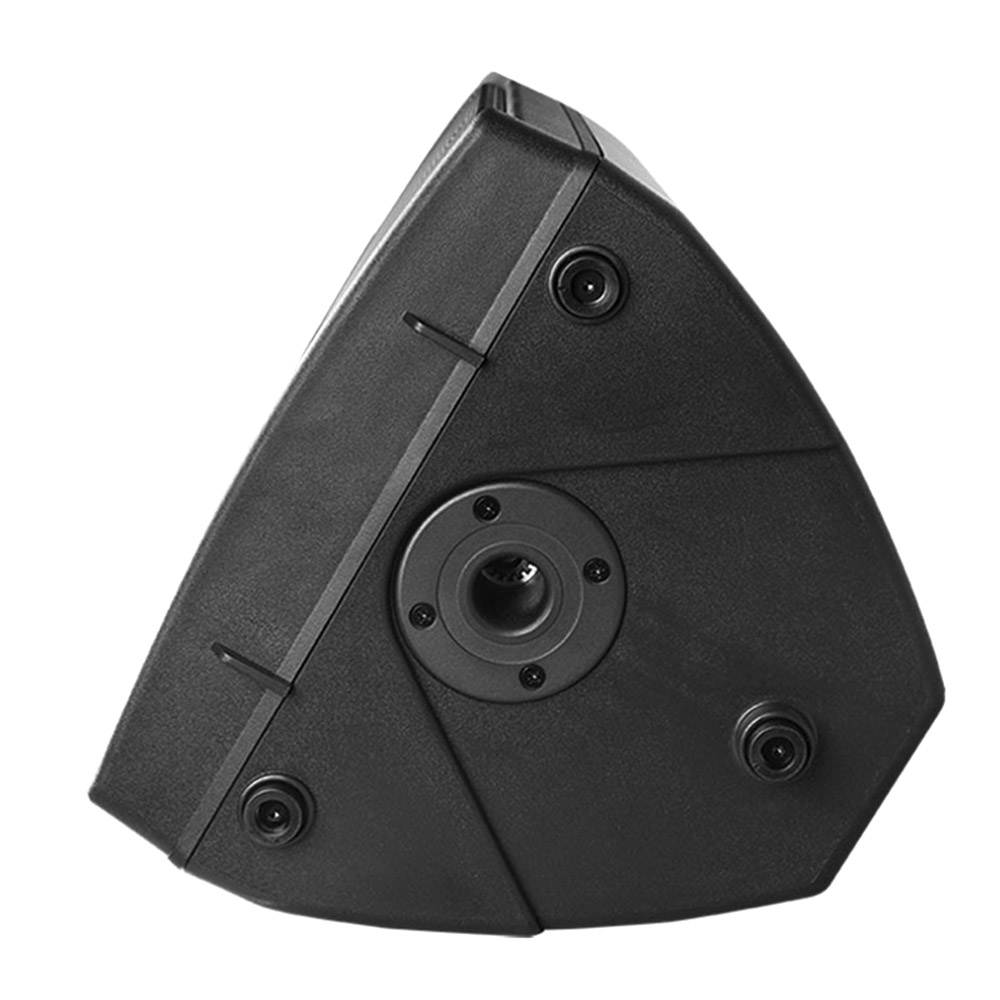

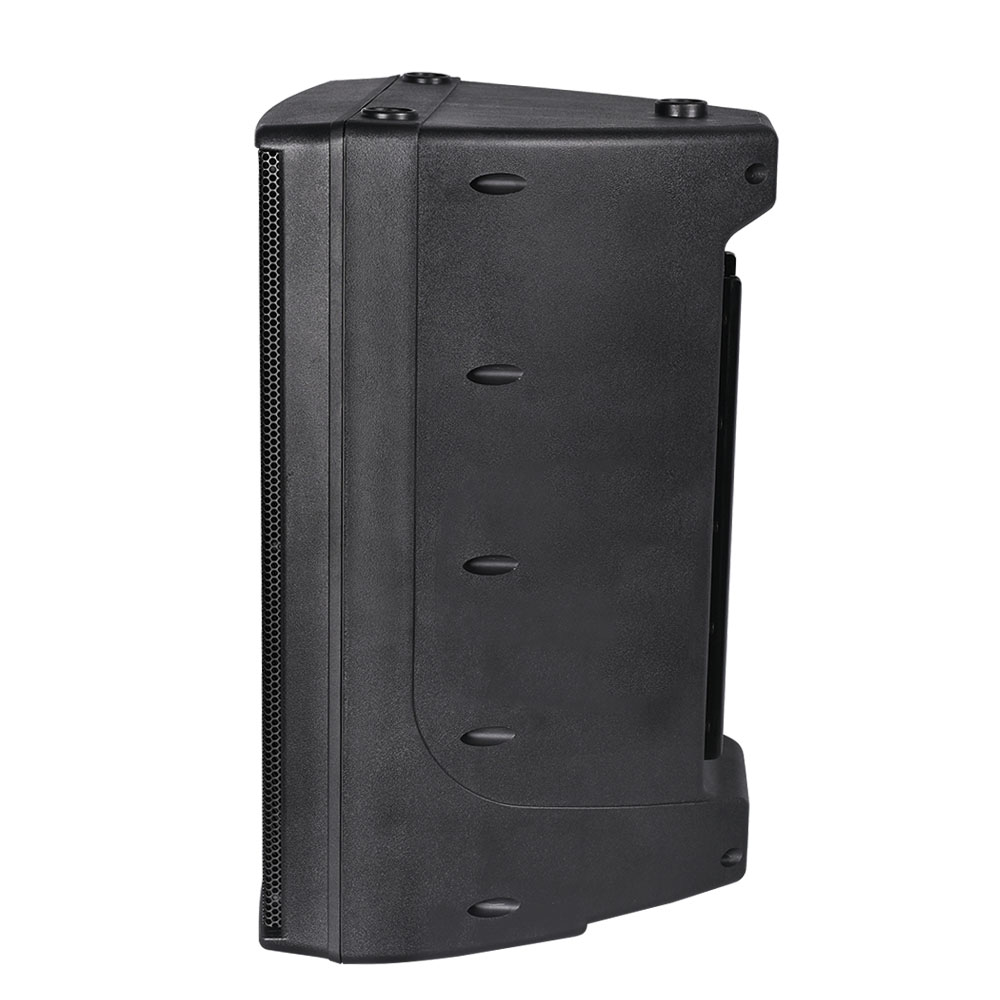

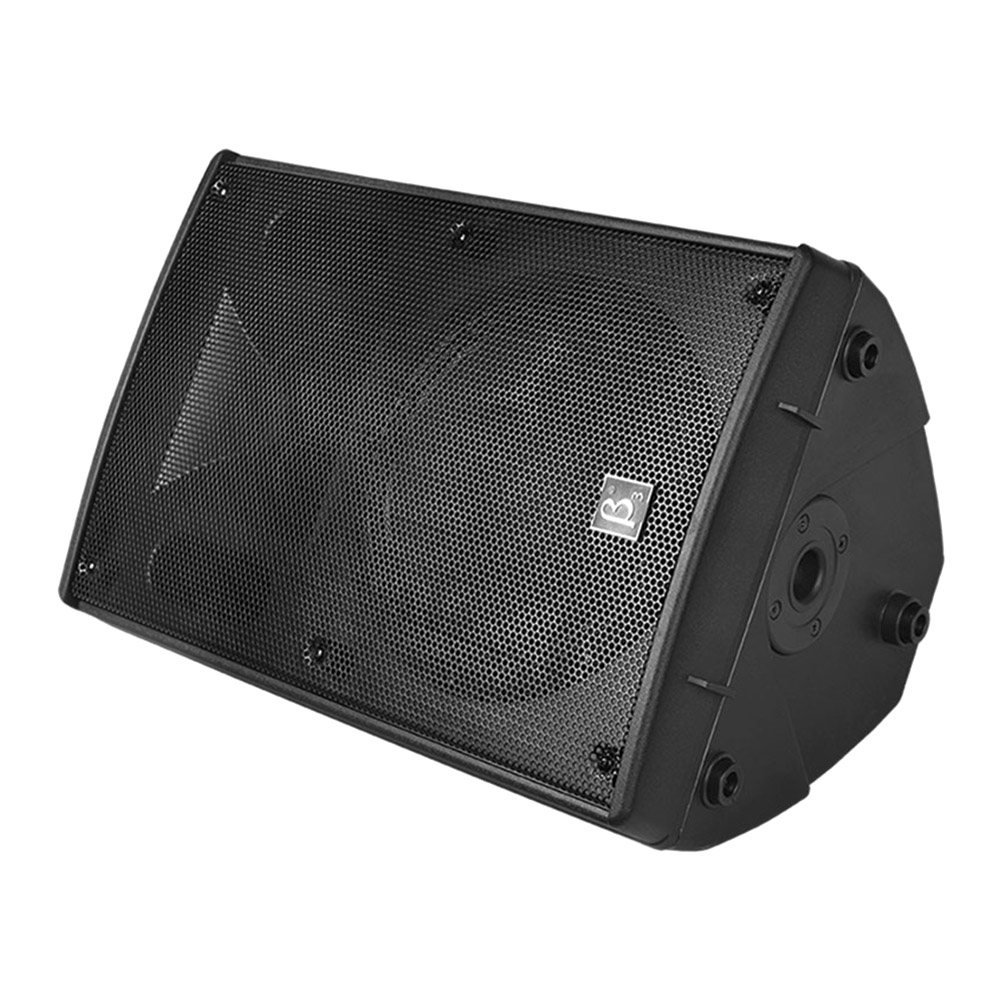

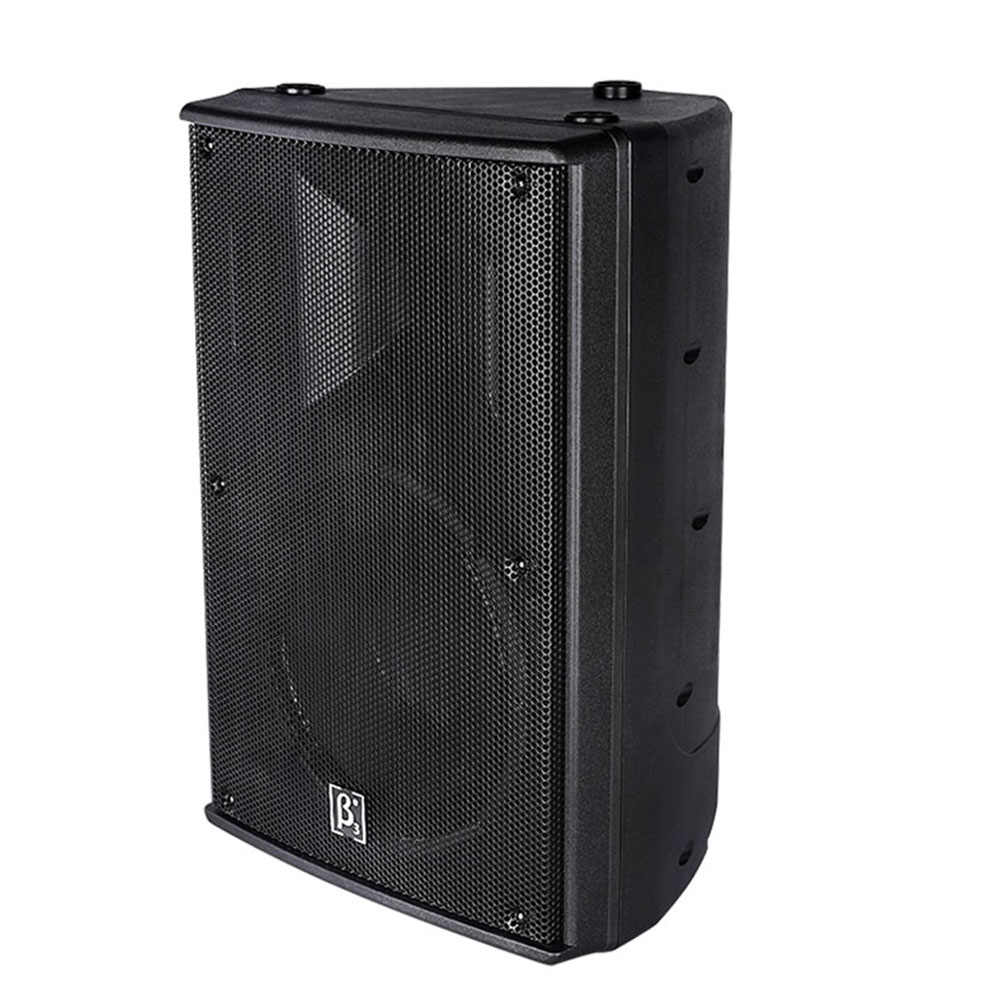

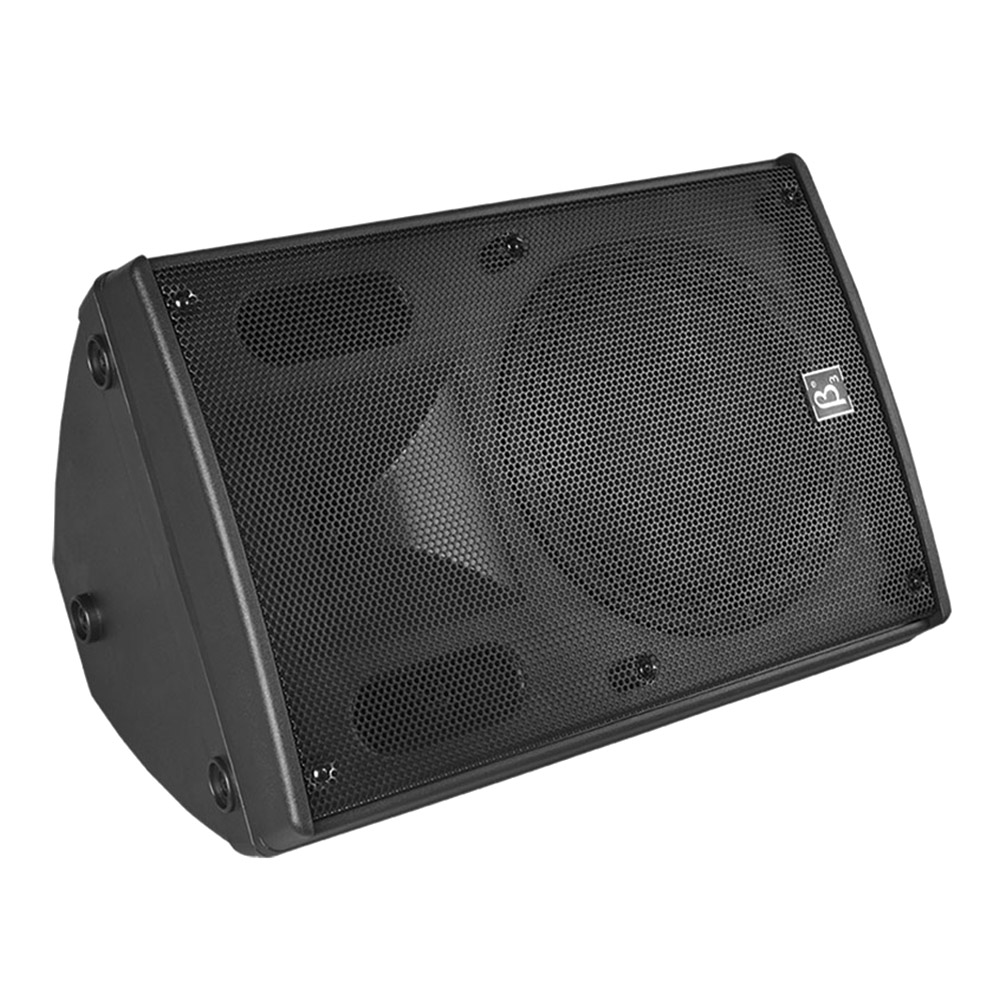

N8

8" Two Way Full Range Plastic Speaker

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The N Active Series delivers extraordinary performance at unmatched value.


Features

  • Painting in white colour available
  • High output SPL and sensitivity
  • 1 x 8” high power transducer
  • 1 x 1.3” diaphragm compression driver
  • Injection molded
  • Cabinet design for FOH and Monitor use
  • Heavy duty protective grill
  • Suitable for use as a main system with or without sub speaker augmentation
  • Portable system or permanent installation
  • Combined with any high power N Series sub speakers for extended low
  • frequency
  • High quality music reproduction
  • Monitor kit included
  • Weatherproof version available

Specifications

Acoustical specifications
Frequency Response(-3db):
75Hz-18kHz
Max SPL @ 1m:
115dB/121dB(PEAK)
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 34mm HF
Woofer:
1 x 8" LF
Input/Output section
Input Connectors:
1 x NL4
Sensitivity (1W @ 1m):
92dB
Power section
Total Power:
100W(RMS)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
277 x 257 x 400mm / (10.9 x 10.1 x 15.7in)
Package Dimensions (W x D x H):
595 x 310 x 600mm / (23.4 x 12.2 x 23.6in)
Weight
Net Weight:
6.5 kg / 14.3 lb
Gross Weight:
15 kg / 33.1 lb
