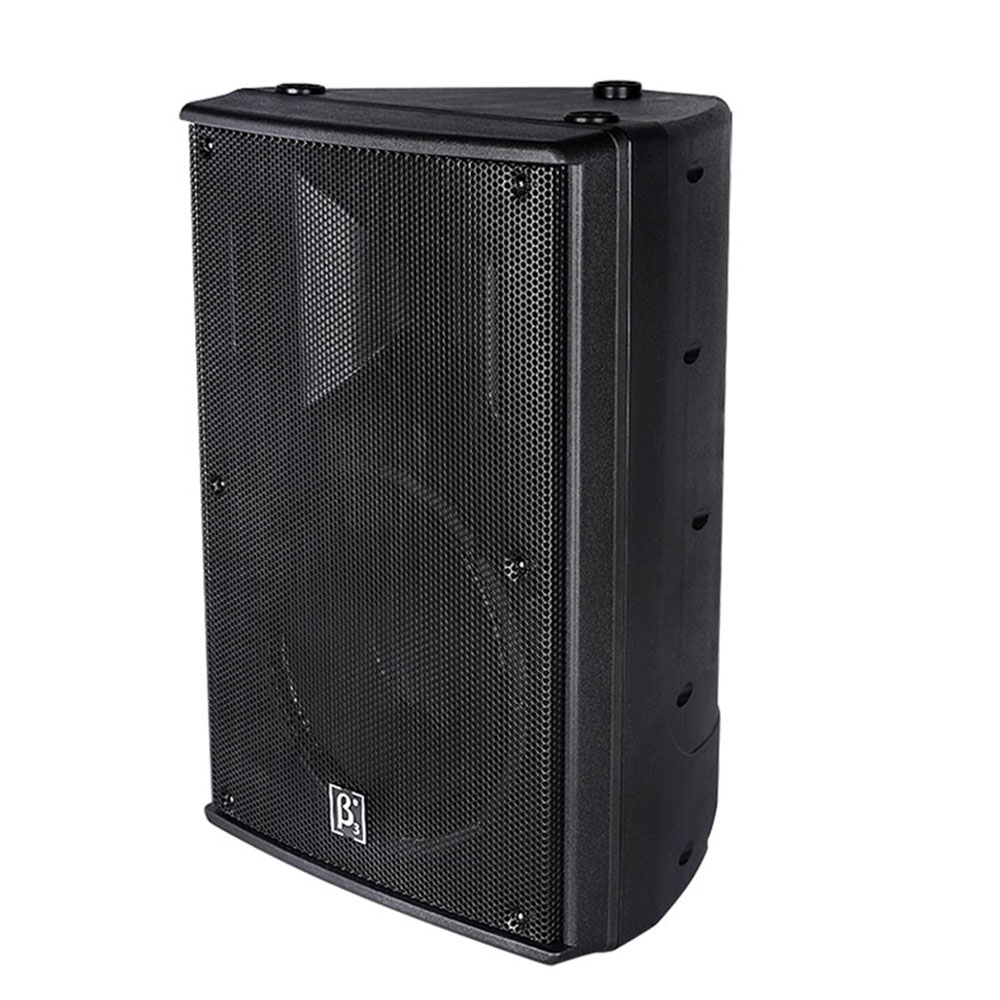

N8a

8" Two Way Full Range Active Plastic Speaker

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The N Active Series delivers extraordinary performance at unmatched value.


Features

  • High output SPL and sensitivity
  • 1 x 8” high power transducer with 50mm voice coil
  • 1 x 1.3” diaphragm compression driver
  • 90º x 60º controlled coverage pattern
  • Rotatable Horn
  • Built-in Bi-amp power amplifier module
  • Master volume control
  • Bass and Treble control
  • XLR input and output connectors
  • Switchable between Mic and Line input
  • Heavy duty protective grill
  • Injection molded
  • 2 x XLR connector

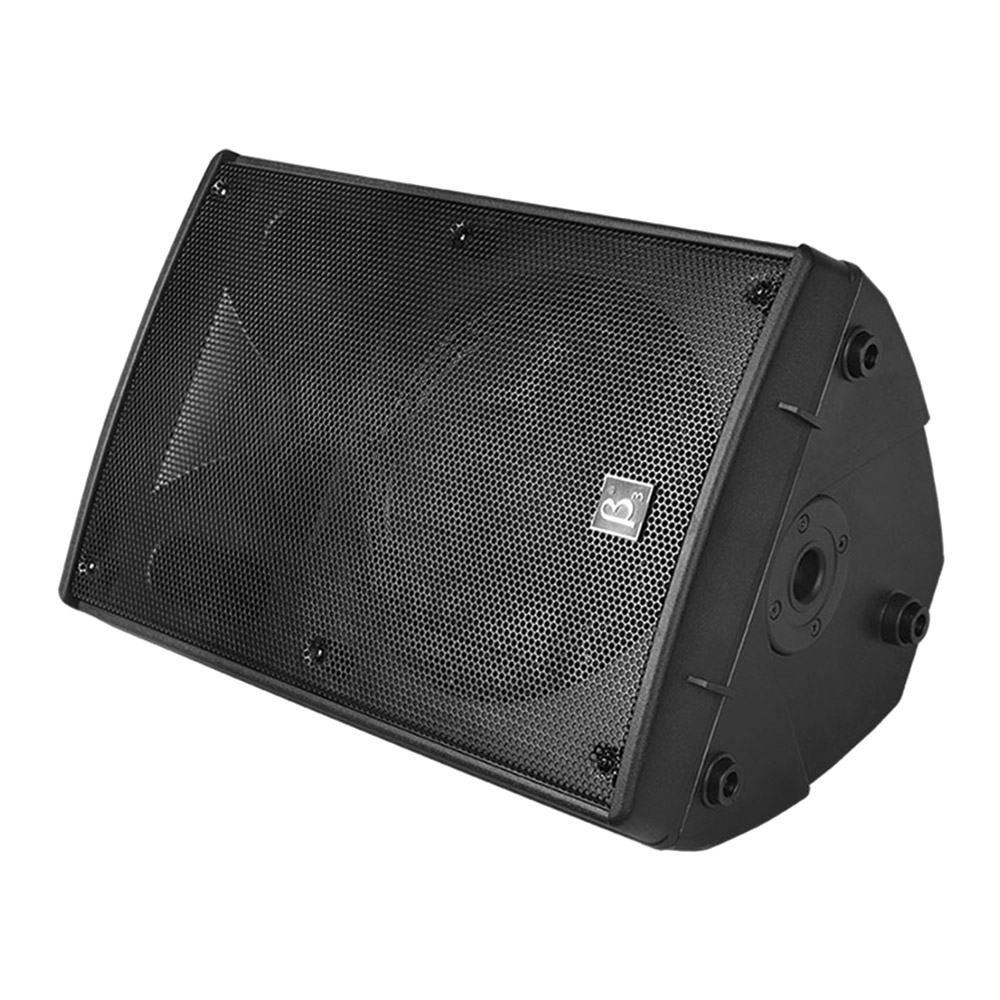

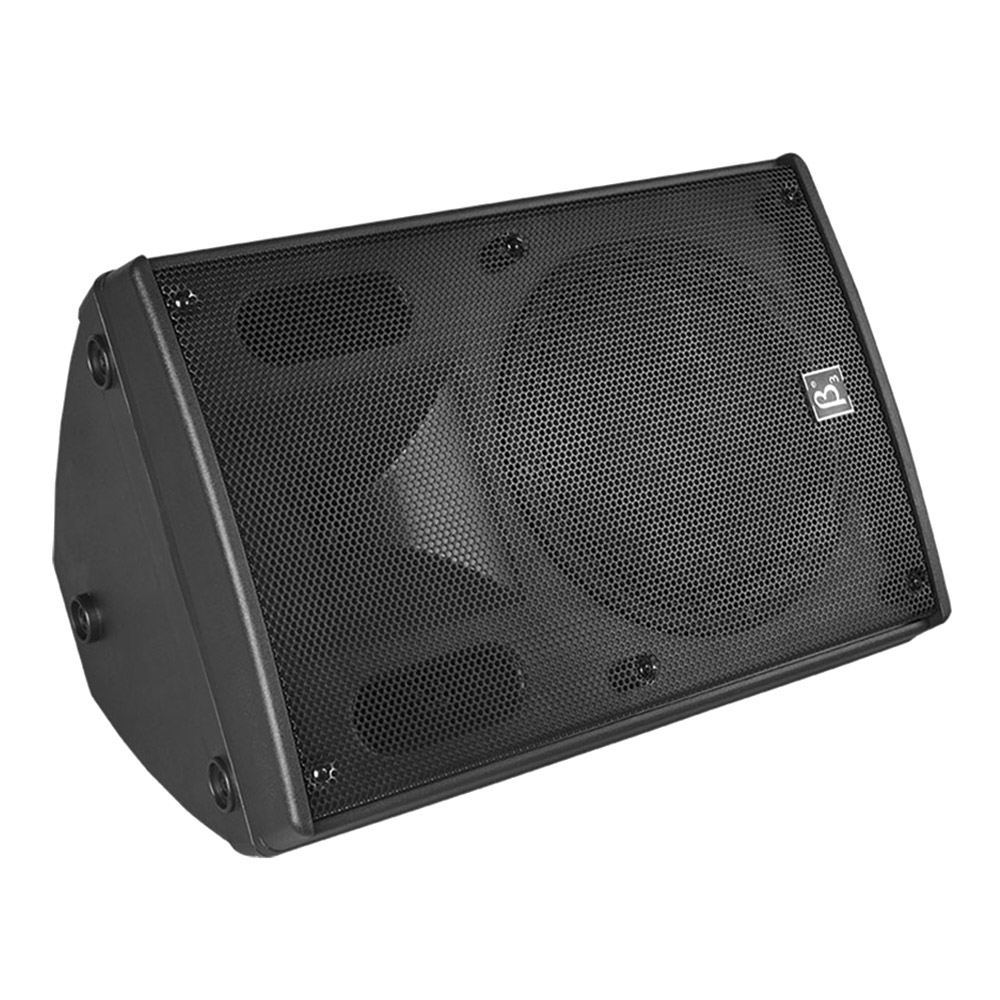

  • Cabinet design for FOH and Monitor use
  • Suitable for use as a main system with or without sub speakeraugmentation
  • Portable system (stand), or permanent installation (wall, ceiling,under balcony)
  • Arrays with all active high power U Series sub speakers for extendedlow frequency, high quality music reproduction
  • Monitor kit - optiona

Specifications

Acoustical specifications
Frequency Response(-3db):
65Hz-18kHz
Max SPL @ 1m:
100dB
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 34mm HF
Woofer:
1 x 8" LF
Input/Output section
Input signal:
20kΩ/LINE, 10kΩ/MIC
Input Connectors:
XLR; K3P
Power section
Total Power:
150W(RMS)
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
277 x 265 x 407mm / (10.9 x 10.4 x 16in)
Package Dimensions (W x D x H):
595 x 310 x 460mm / (23.4 x 12.2 x 18.1in)
Weight
Net Weight:
8.6 kg / 19 lb
Gross Weight:
18.6 kg / 41 lb
