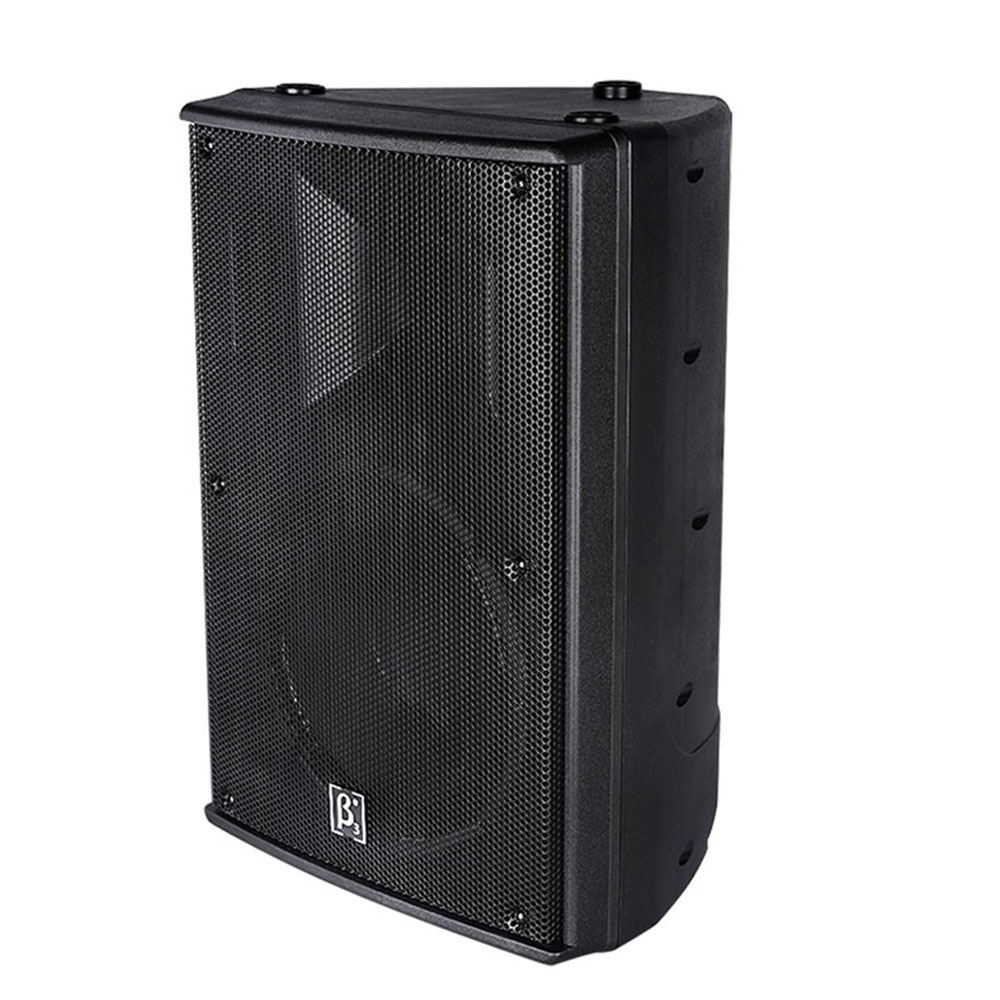

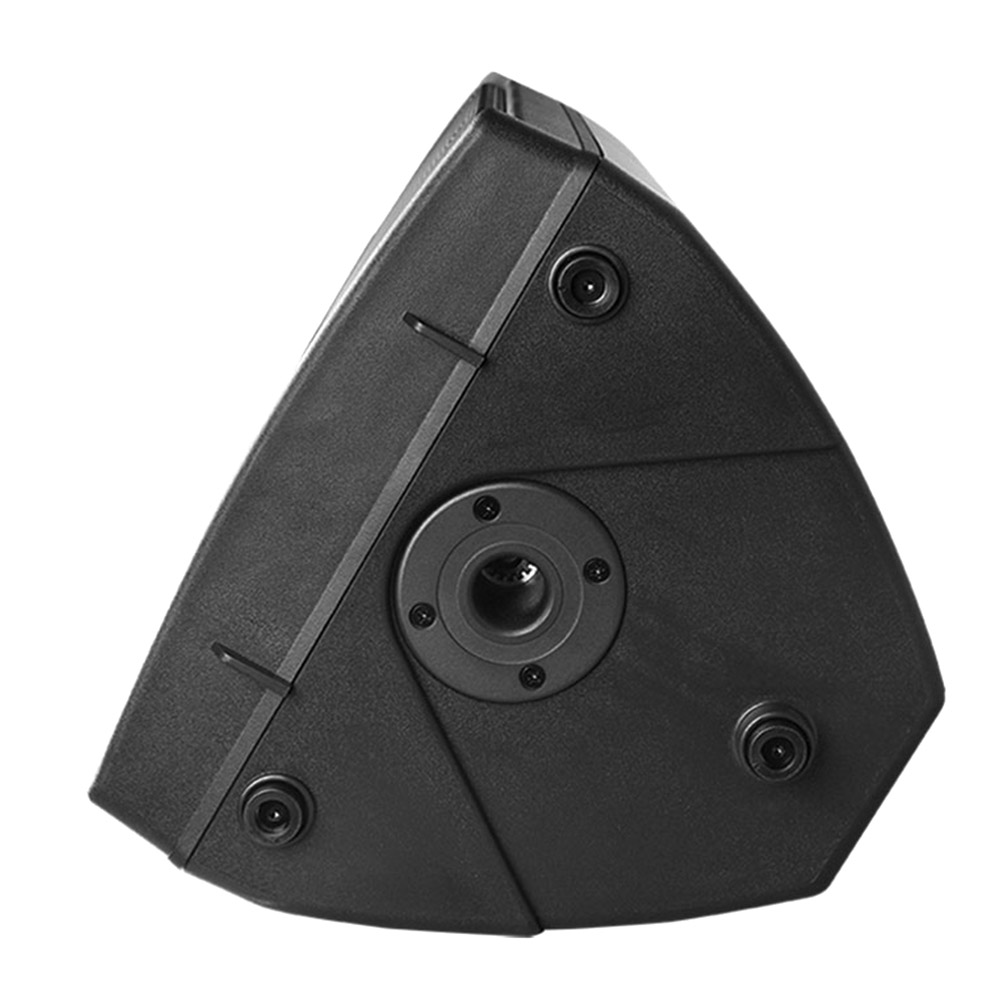

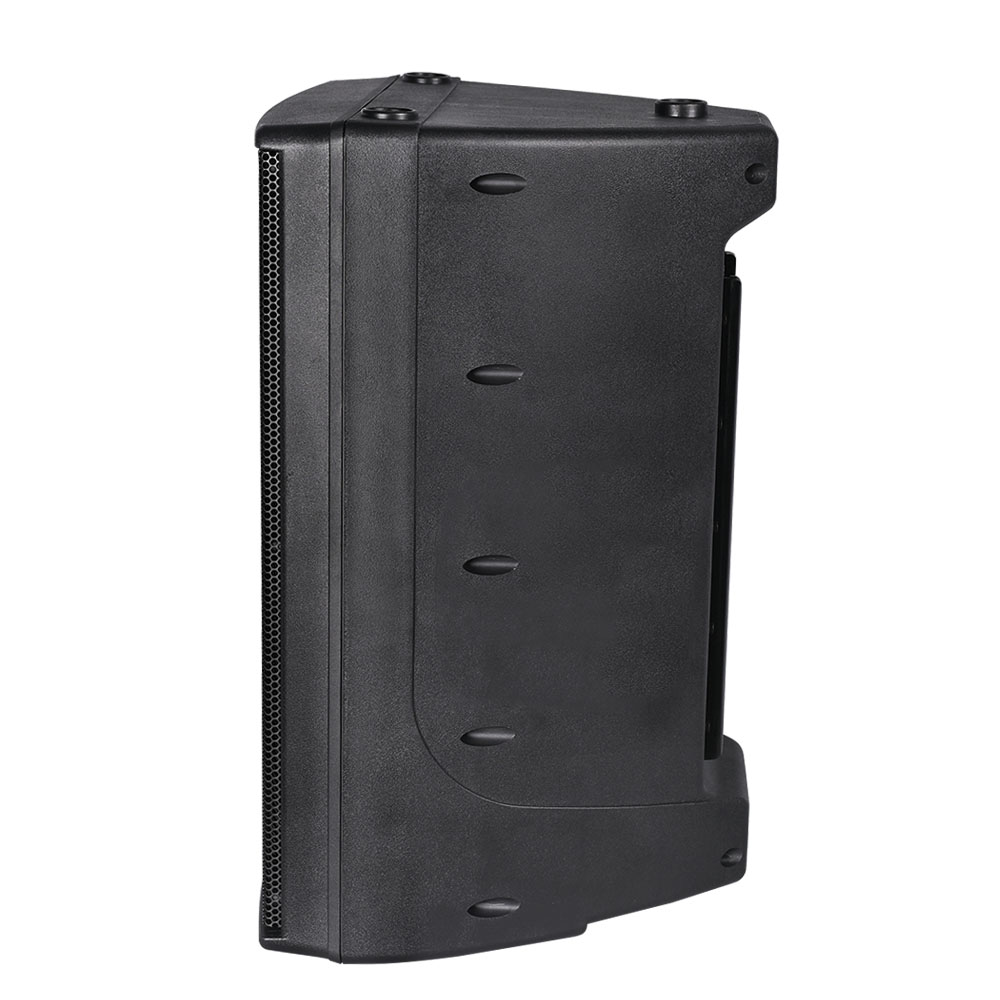

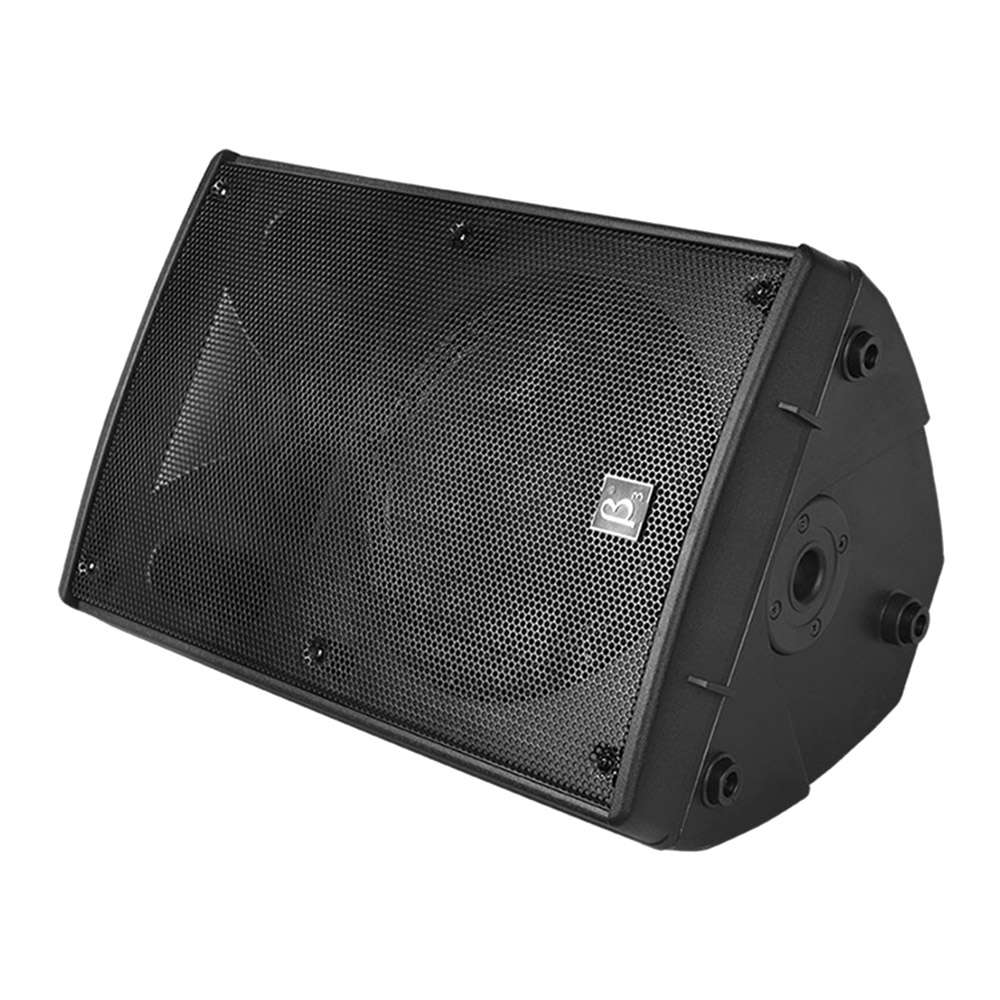

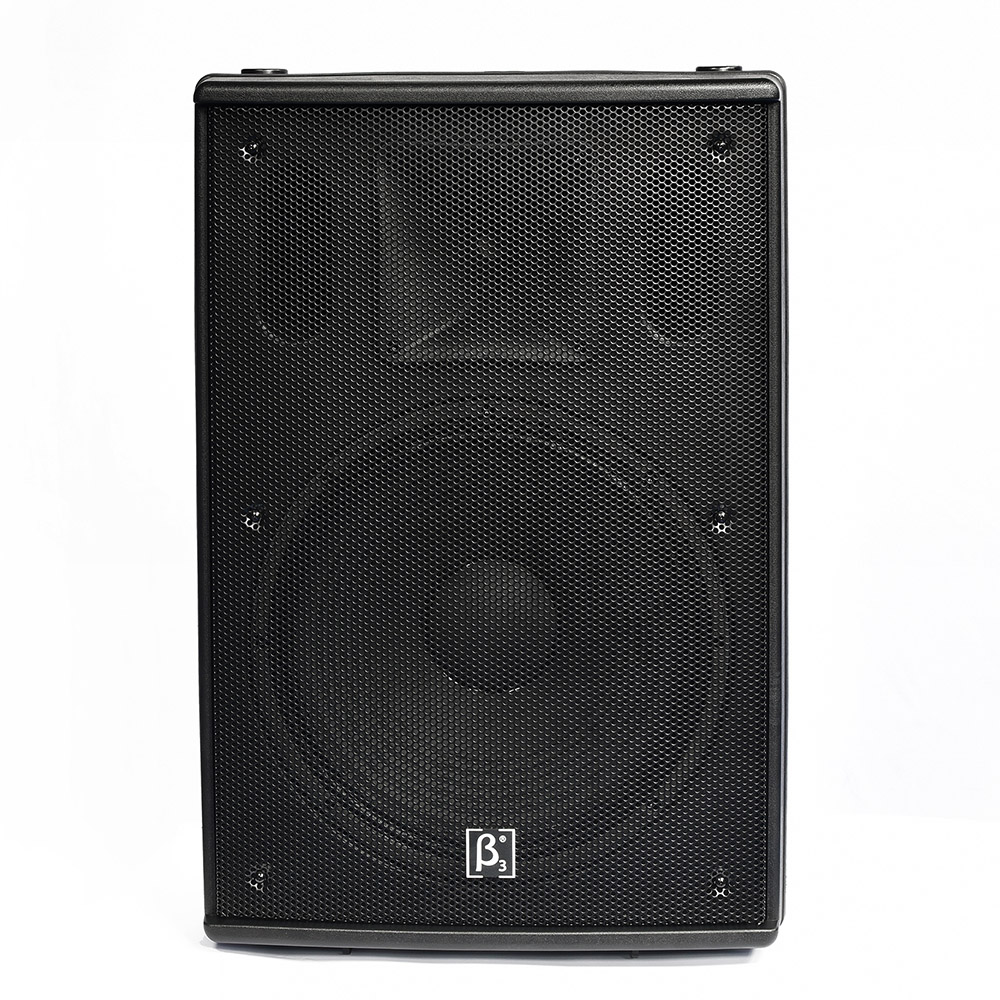

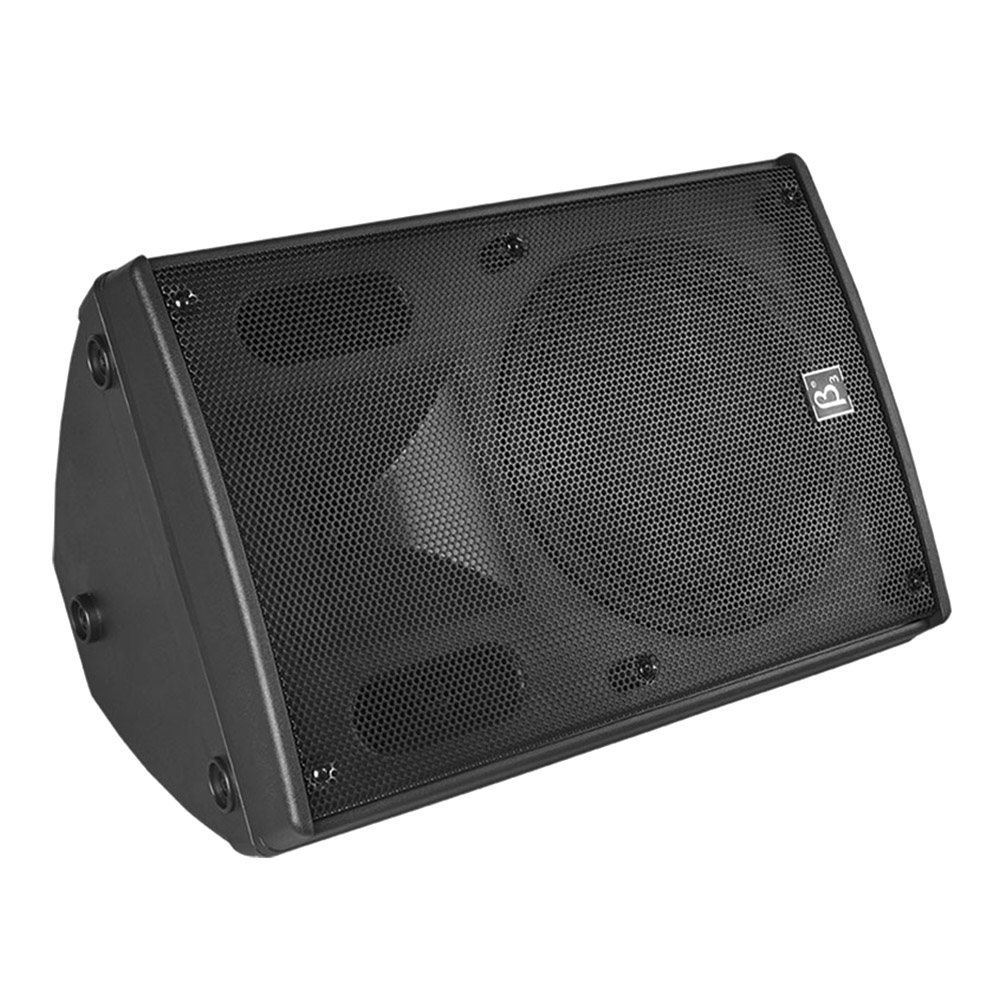

N10 - 10" Two Way Full Range Plastic Speaker
N10 - 10" Two Way Full Range Plastic Speaker
N10 - 10" Two Way Full Range Plastic Speaker
N10 - 10" Two Way Full Range Plastic Speaker
N10 - 10" Two Way Full Range Plastic Speaker
N10 - 10" Two Way Full Range Plastic Speaker

N10

10" Two Way Full Range Plastic Speaker

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc.


Features

  • Weatherproof version available
  • Painting in white colour available
  • High output SPL and sensitivity
  • 1 x 10” high power transducer
  • 1 x 1.3” diaphragm compression driver
  • 90º x 60º controlled coverage pattern
  • Rotatable Horn
  • Heavy duty protective grill
  • Injection molded
  • 2 x NL4 connector
  • Cabinet design for FOH and Monitor use
  • Suitable for use as a main system with or without sub speakeraugmentation
  • High quality music reproduction
  • Monitor kit - optional

Specifications

Acoustical specifications
Frequency Response(-3db):
65Hz-18kHz
Max SPL @ 1m:
119dB
Dispersion (H x V):
90° x 60°
Transducers
Compression driver:
1 x 1.3" HF
Woofer:
1 x 10" LF
Input/Output section
Input Connectors:
2 x NL4
Sensitivity (1W @ 1m):
95dB
Power section
Total Power:
250W(RMS); 500W(PROGRAM); 1000W(PEAK)
Nominal Impedance (Ohm):
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
321 x 321 x 464mm / (12.6 x 12.6 x 18.3in)
Package Dimensions (W x D x H):
375 x 355 x 535mm / (14.8 x 14 x 21.1in)
Weight
Net Weight:
10 kg / 22 lb
Gross Weight:
12 kg / 26.5 lb

N10 Application

    N10 Installation

      N10 Parts

        N10 Cases

          N10 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_N10_Plastic_SpeakerManualβ3_N10_Plastic_SpeakerManual 1β3_N10_Plastic_SpeakerManual  853.99KB 2018-07-12 02:25:39
