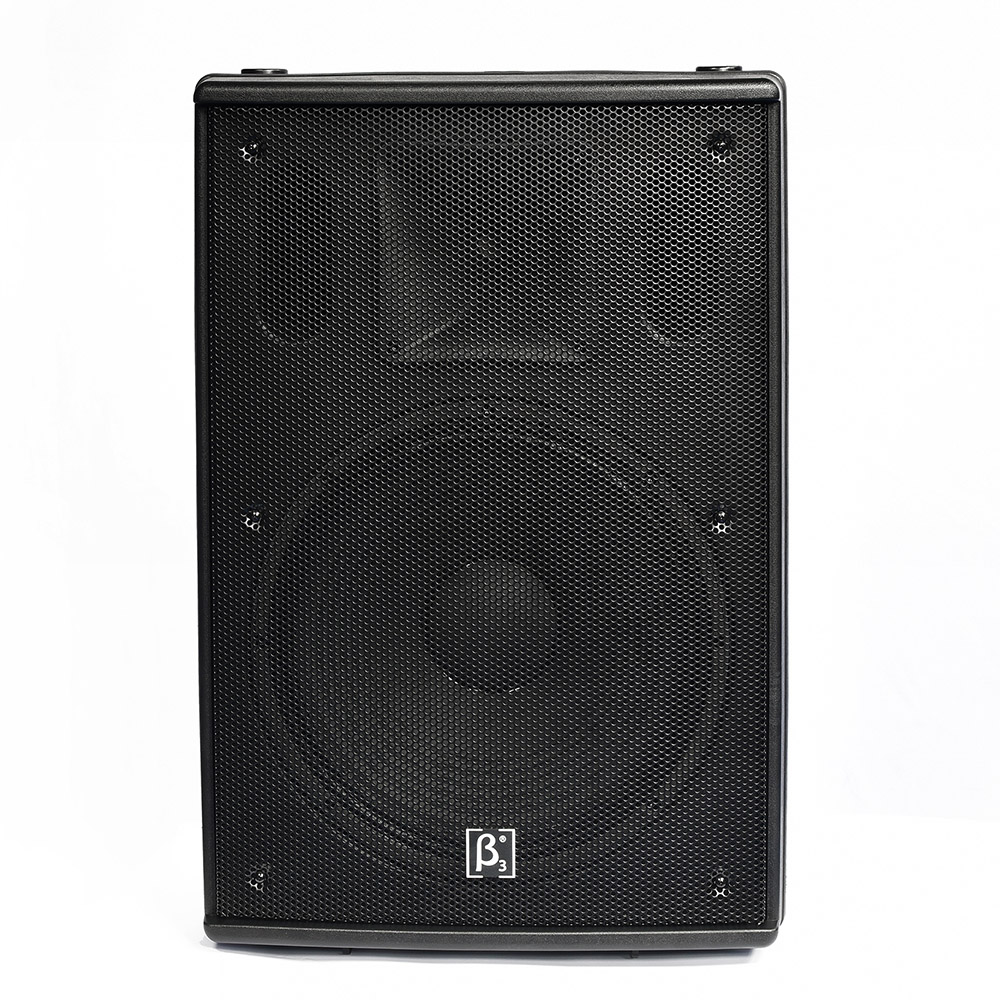

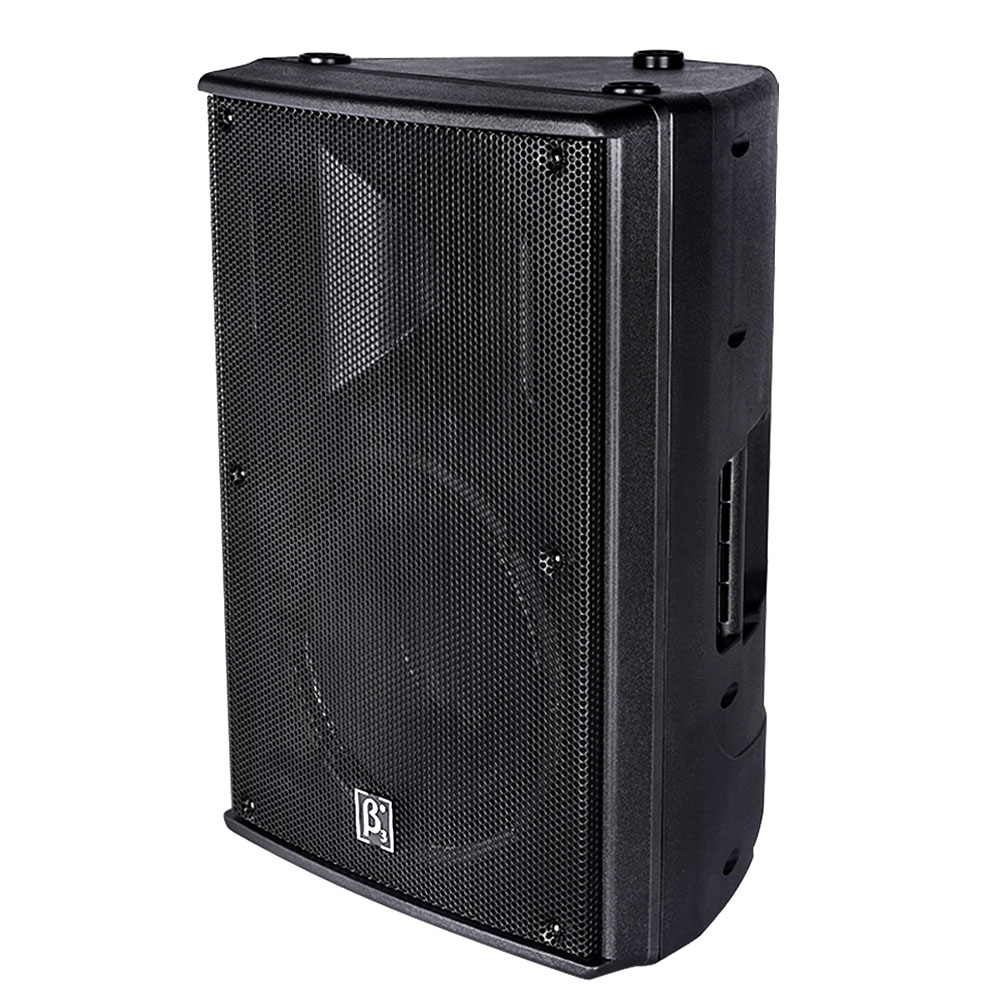

N12a

12" Two Way Full Range Active Plastic Speaker

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The N Active Series delivers extraordinary performance at unmatched value.


Features

  • High output SPL and sensitivity
  • 1 x 12” high power transducer
  • 1 x 1.7” diaphragm compression driver
  • Rotatable Horn: 50º-100º x 55º controlled coverage pattern

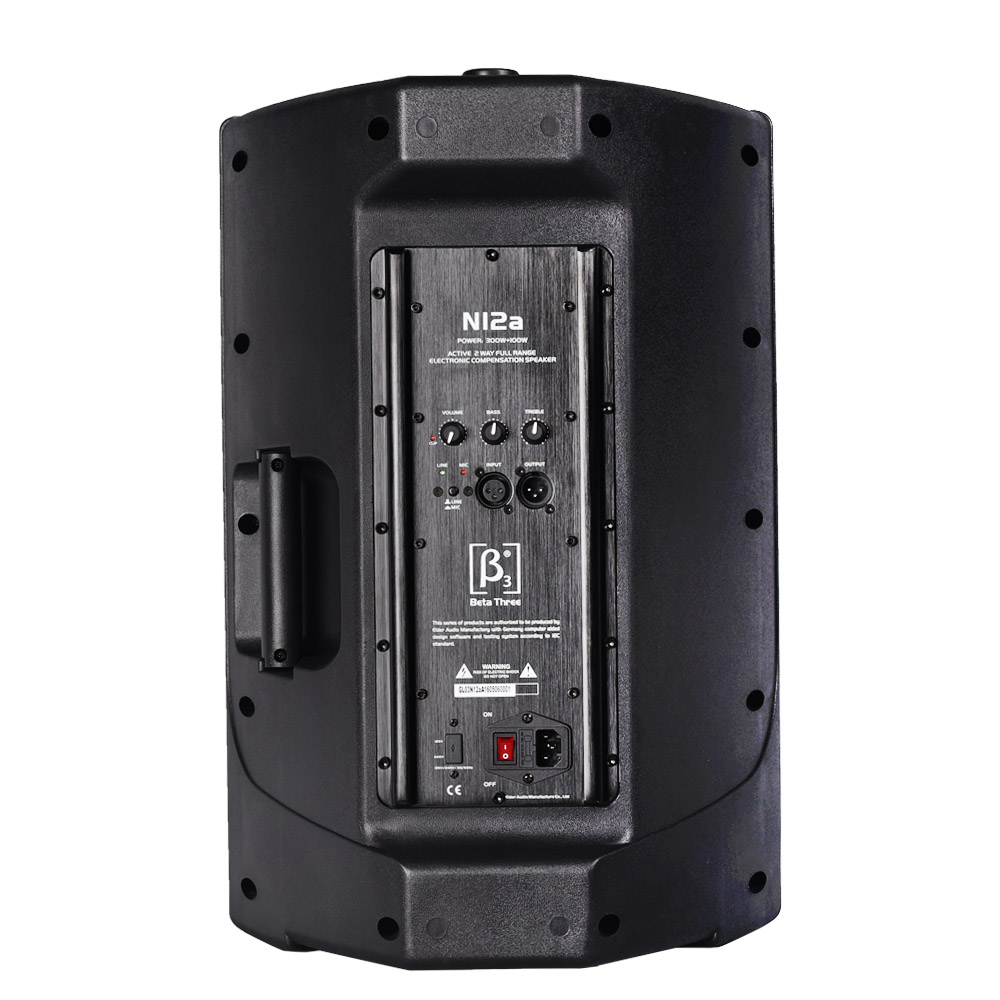

  • Built-in Bi-amp power amplifier module
  • Master volume control
  • Bass and Treble control
  • XLR input and output connectors
  • Switchable between Mic and Line input
  • Heavy duty protective grill
  • Injection molded
  • 2 x XLR connector
  • Cabinet design for FOH and Monitor use
  • Suitable for use as a main system with or without sub speaker augmentation
  • Portable system (stand), or permanent installation (wall, ceiling)
  • Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction

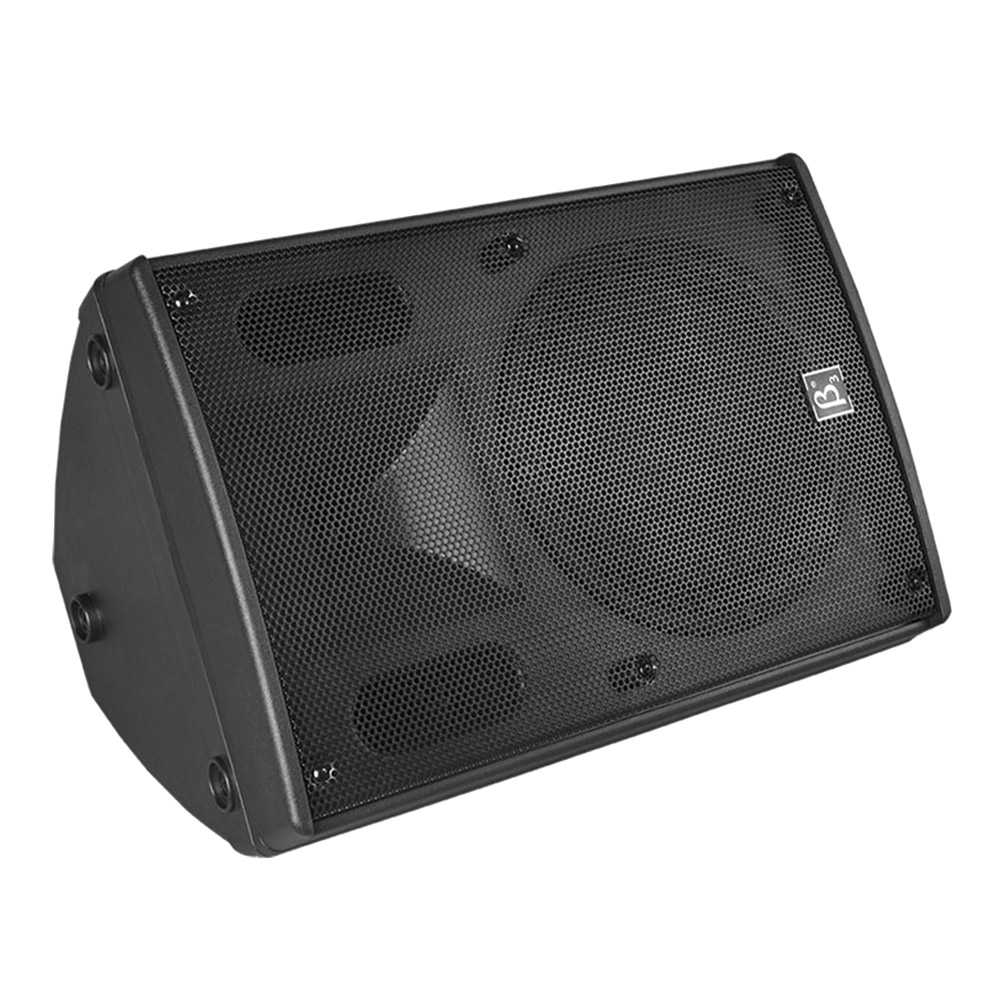

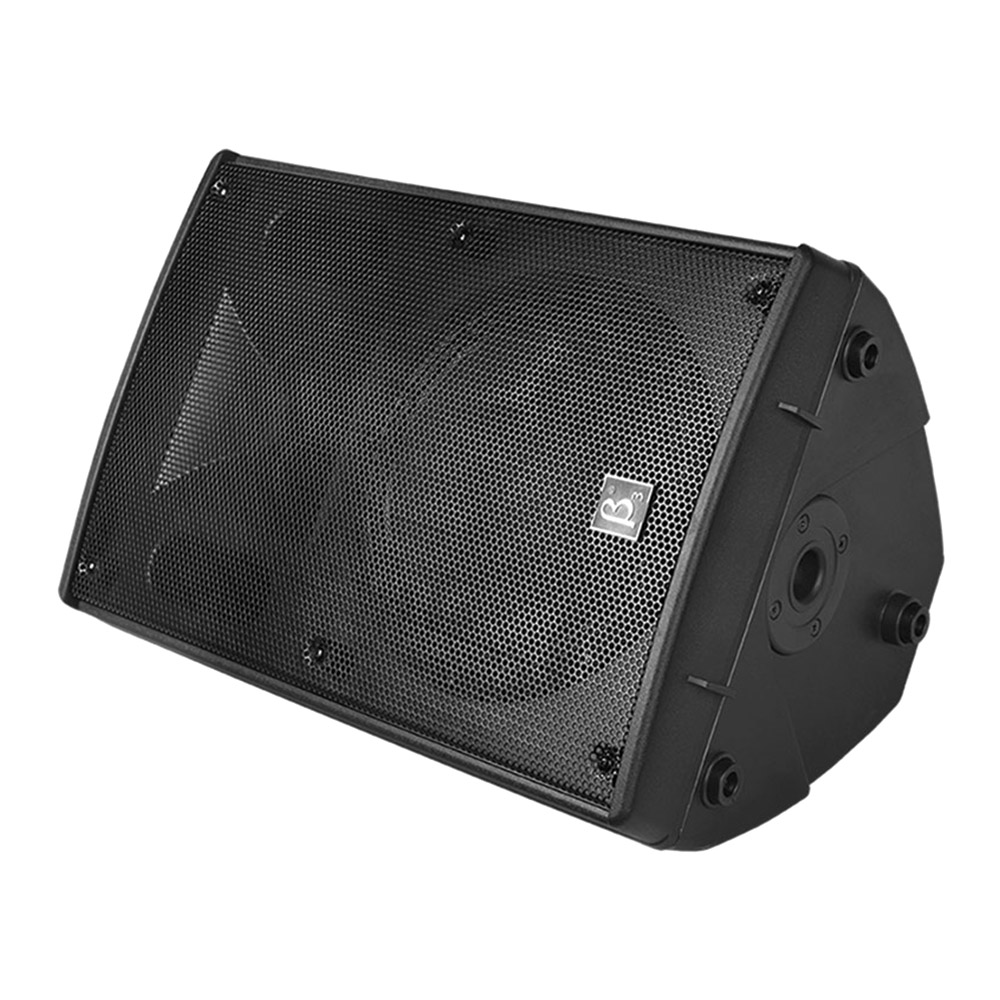

  • Monitor kit included

Specifications

Acoustical specifications
Frequency Response(-3db):
50Hz-18kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
50-100° x 55°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 12" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x XLR
Power section
Total Power:
100W HF, 300W LF
Nominal Impedance (Ohm):
Voltage range:
110V/220V
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
415 x 391 x 600mm / (16.3 x 15.4 x 23.6in)
Package Dimensions (W x D x H):
465 x 435 x 680mm / (18.3 x 17.1 x 26.8in)
Weight
Net Weight:
23 kg / 50.7 lb
Gross Weight:
25.2 kg / 55.6 lb

N12a Application

    N12a Installation

      N12a Parts

        N12a Cases

          N12a Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_N12a_Plastic_Speaker_English_Manualβ3_N12a_Plastic_Speaker_English_Manual 1β3_N12a_Plastic_Speaker_English_Manual  412.39KB 2018-07-12 02:25:39
