N12a-MP3

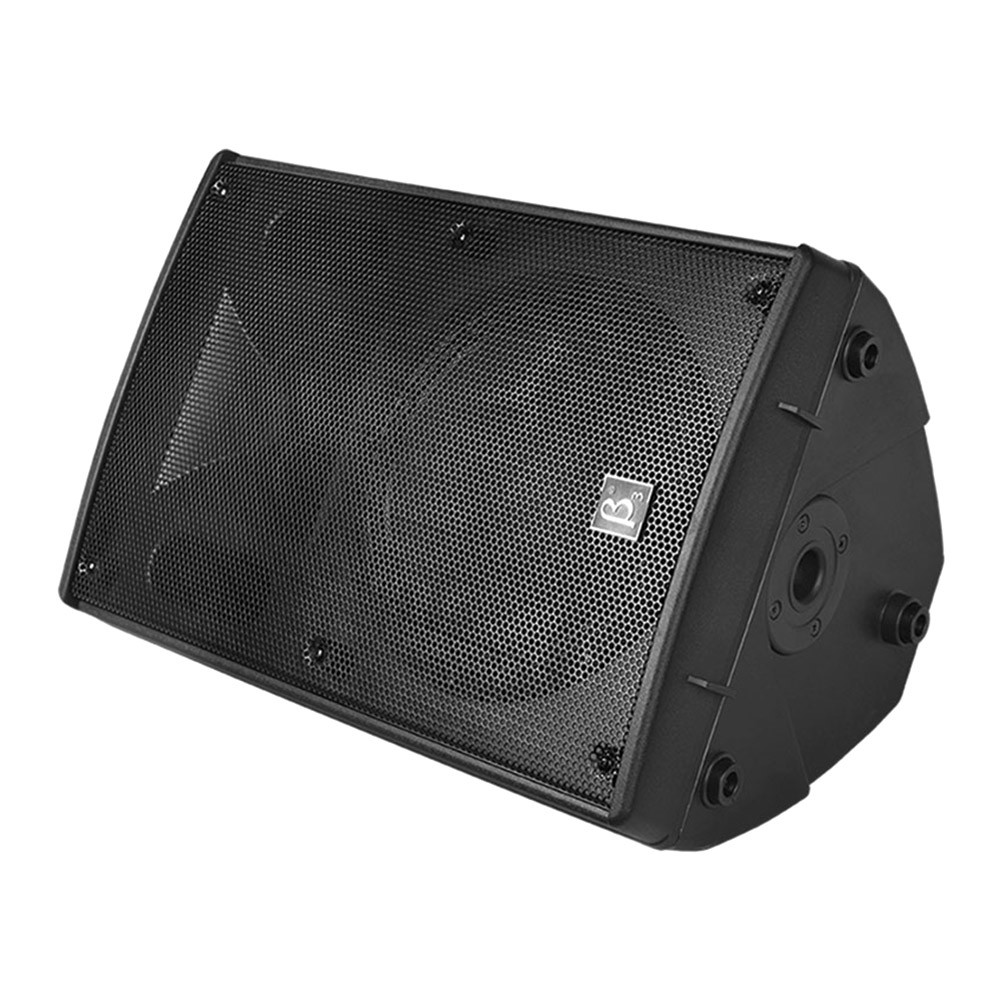

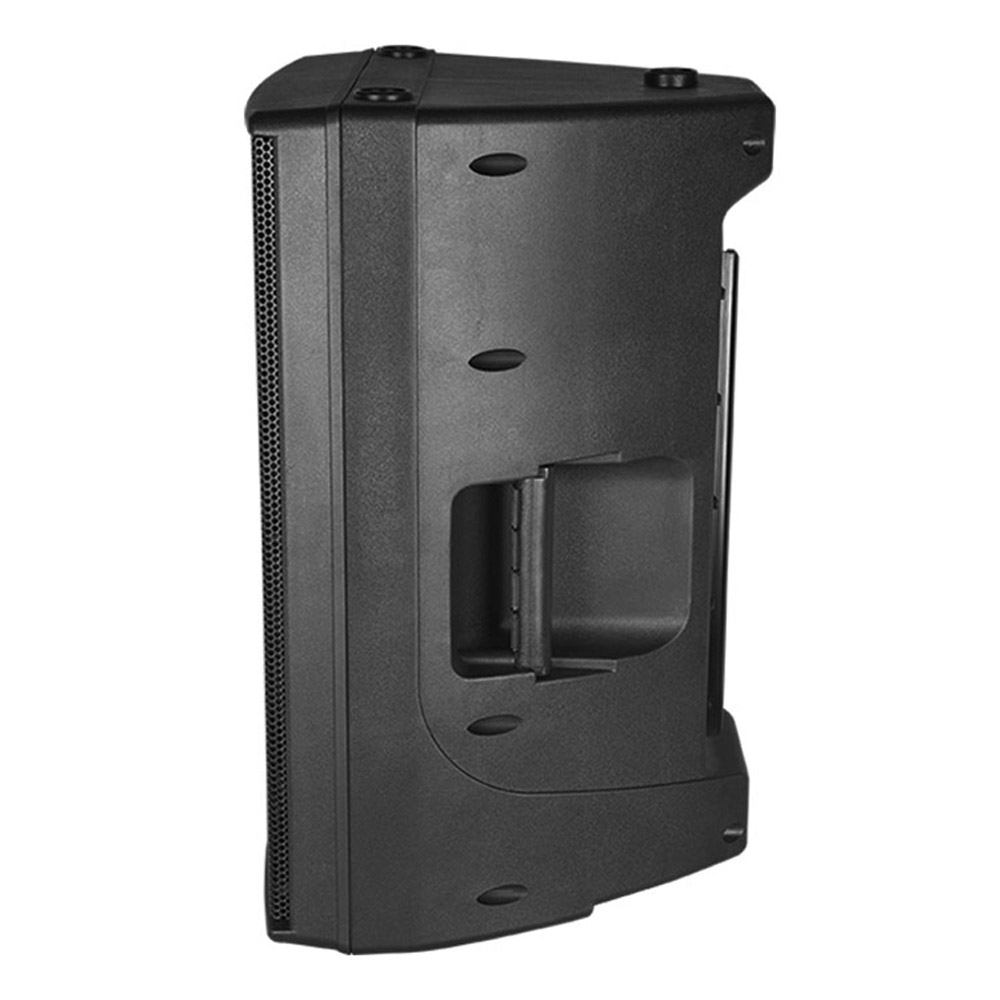

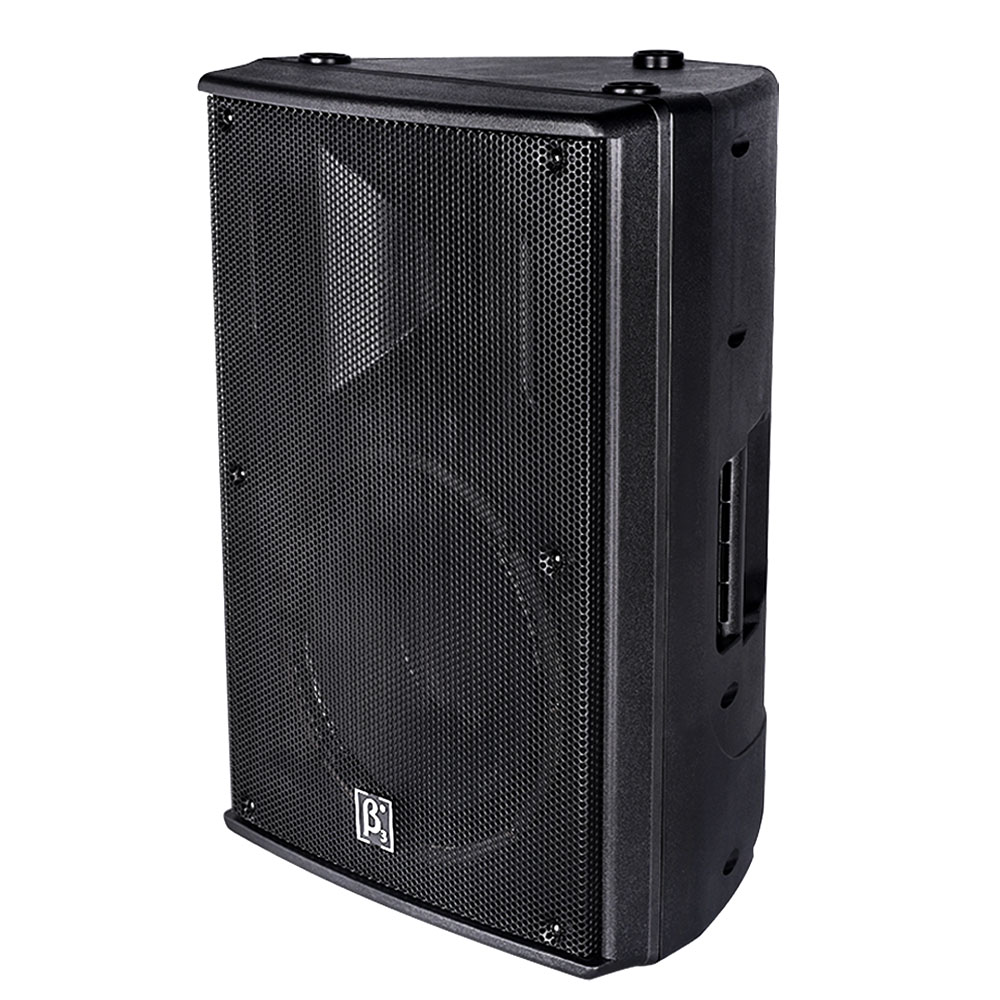

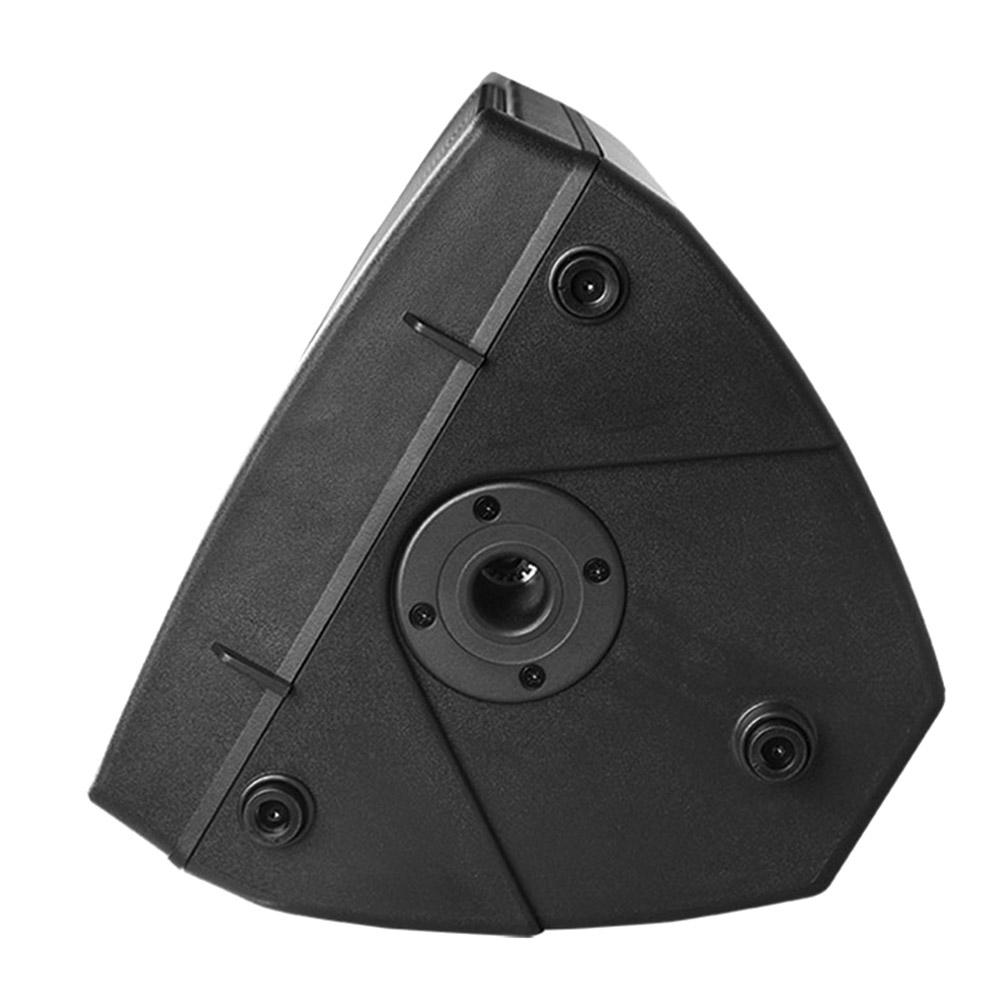

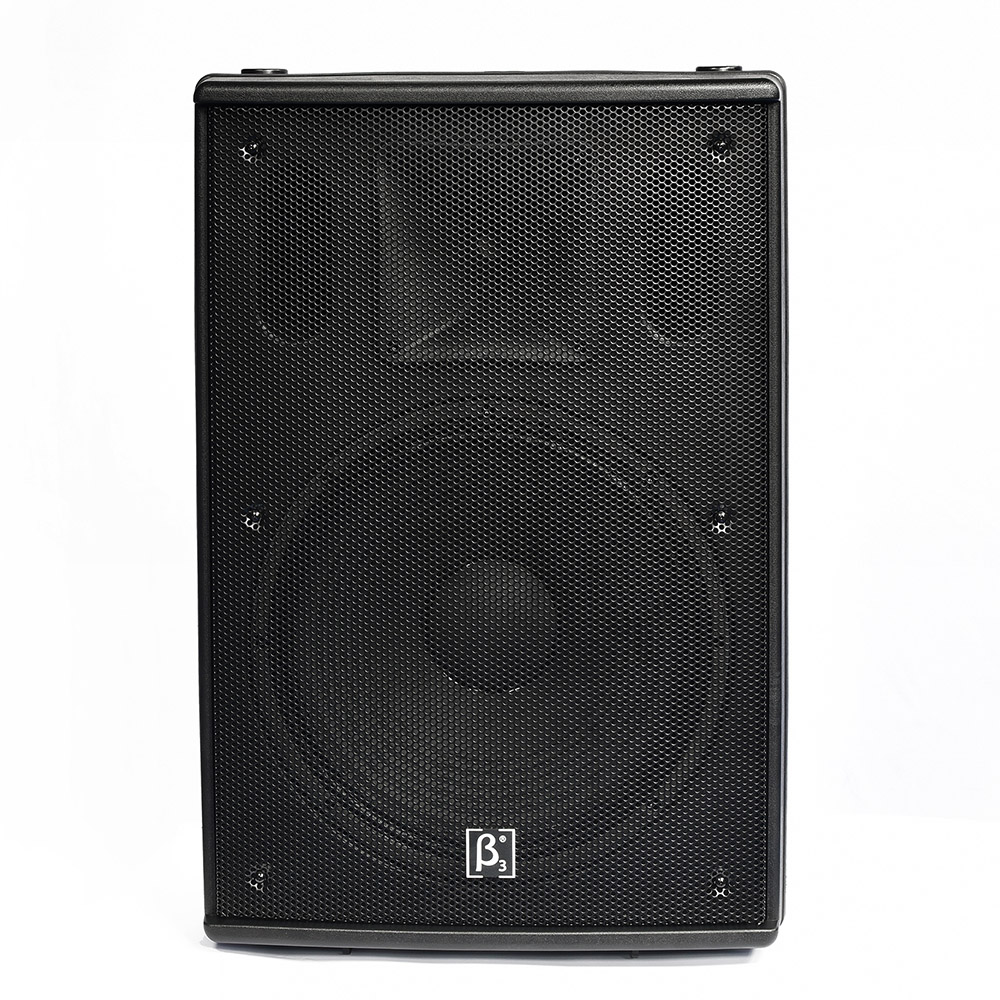

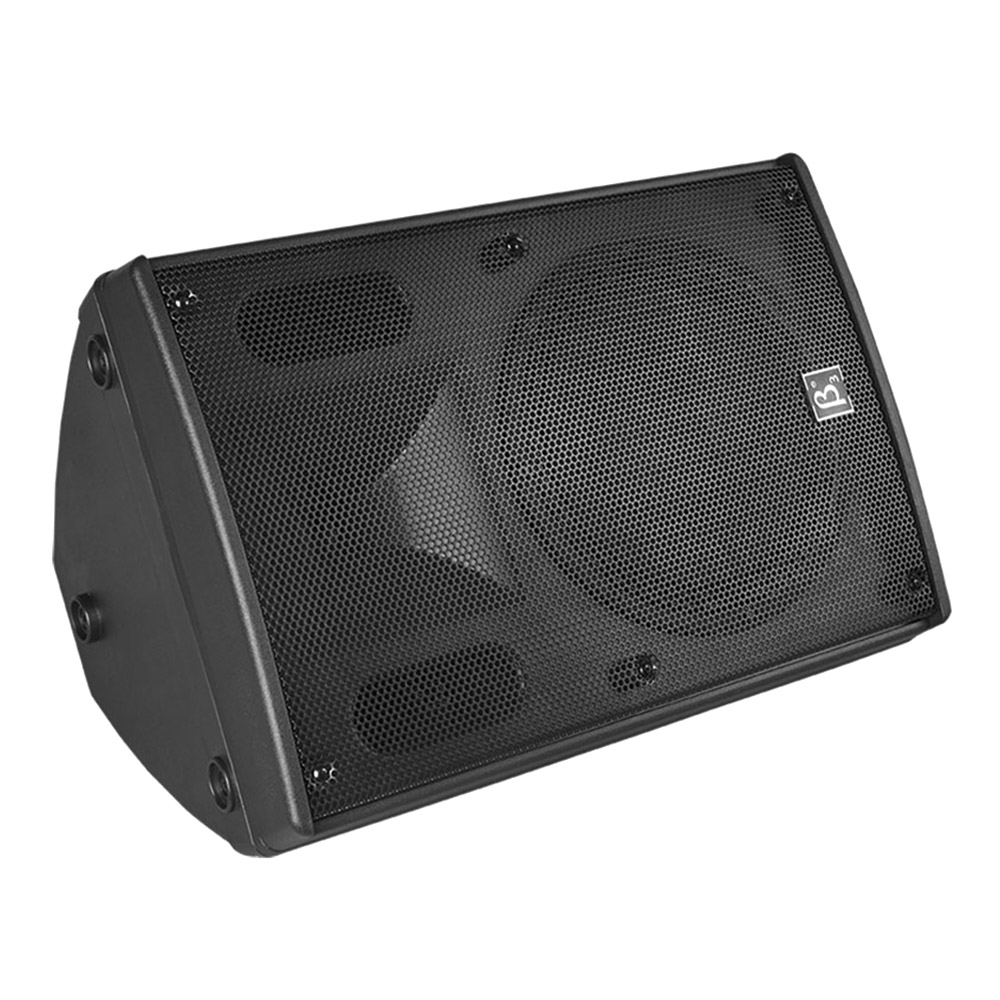

12" Two Way Full Range Active Plastic Speaker(Build-in MP3 player)

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The N Active Series delivers extraordinary performance at unmatched value.


Features

  • Build-in amplifier, build-in MP3 player
  • High output SPL and sensitivity
  • 1 x 12” high power transducer
  • 1 x 1.7” diaphragm compression driver
  • Rotatable Horn: 50º-100º x 55º controlled coverage pattern
  • Built-in Bi-amp power amplifier module
  • Master volume control
  • Bass and Treble control
  • XLR input and output connectors
  • Switchable between Mic and Line input
  • Heavy duty protective grill
  • Injection molded
  • 2 x XLR connector
  • Cabinet design for FOH and Monitor use
  • Suitable for use as a main system with or without sub speaker augmentation
  • Portable system (stand), or permanent installation (wall, ceiling)
  • Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction
  • Monitor kit included

Specifications

Acoustical specifications
Frequency Response(-3db):
60Hz-18kHz
Max SPL @ 1m:
118dB/124dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 12" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
1 x XLR input, 1 x XLR output
Power section
Total Power:
400W(RMS)
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
415 x 391 x 600mm / (16.3 x 15.4 x 23.6in)
Package Dimensions (W x D x H):
465 x 435 x 680mm / (18.3 x 17.1 x 26.8in)
Weight
Net Weight:
23 kg / 50.7 lb
Gross Weight:
25.2 kg / 55.6 lb

N12a-MP3 Application

    N12a-MP3 Installation

      N12a-MP3 Parts

        N12a-MP3 Cases

          N12a-MP3 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_N12a-MP3_Plastic_SpeakerManualβ3_N12a-MP3_Plastic_SpeakerManual 1β3_N12a-MP3_Plastic_SpeakerManual  821.18KB 2018-07-12 02:25:39
