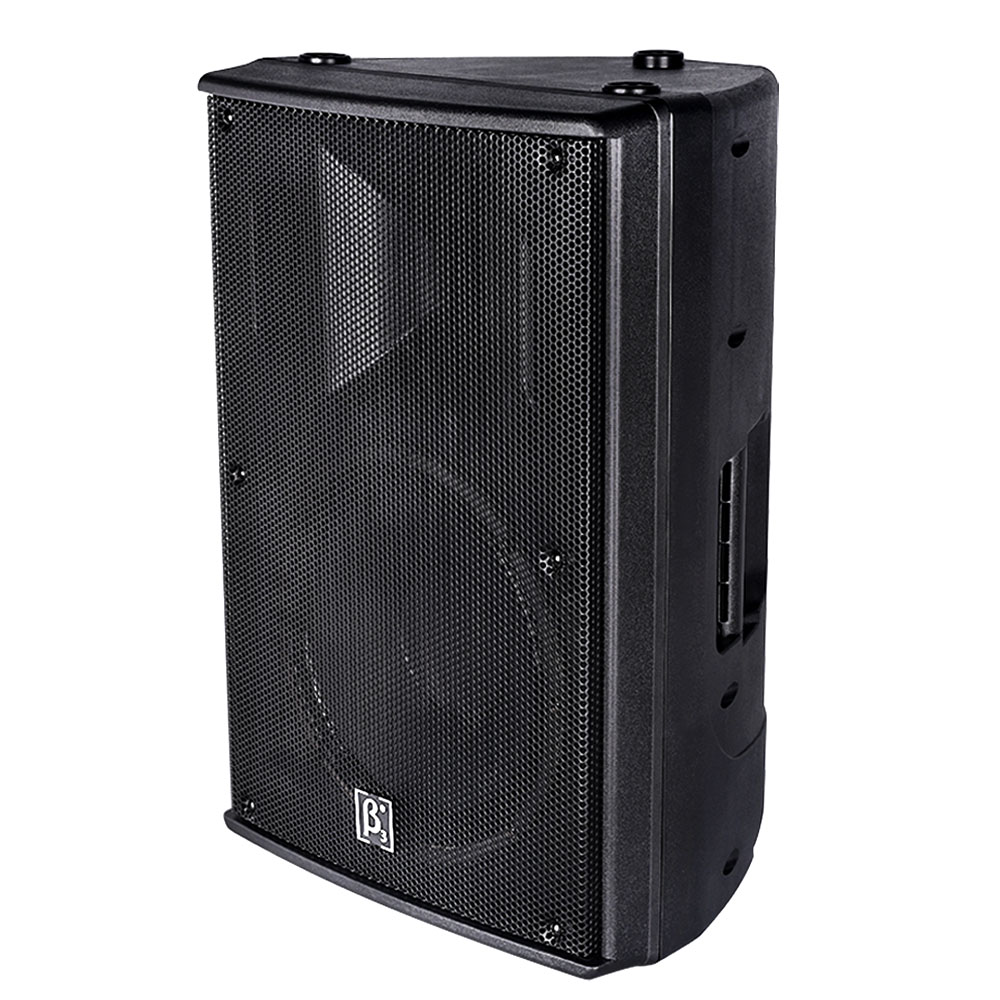

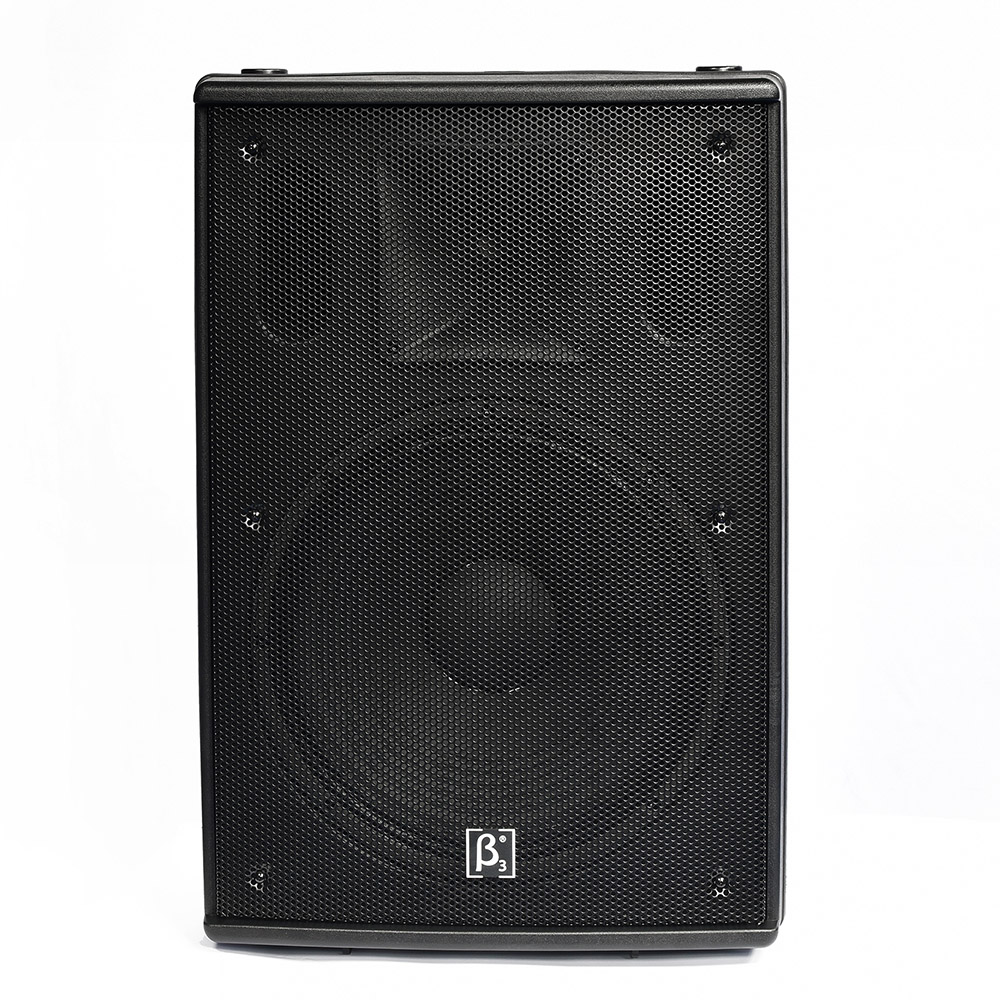

N15a

15" Two Way Full Range Active Plastic Speaker

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The N Active Series delivers extraordinary performance at unmatched value.


Features

  • High output SPL and sensitivity
  • 1 x 15” high power transducer with 50mm voice coil
  • 1 x 1.7” diaphragm compression driver
  • Rotatable Horn: 50º-100º x 55º controlled coverage pattern

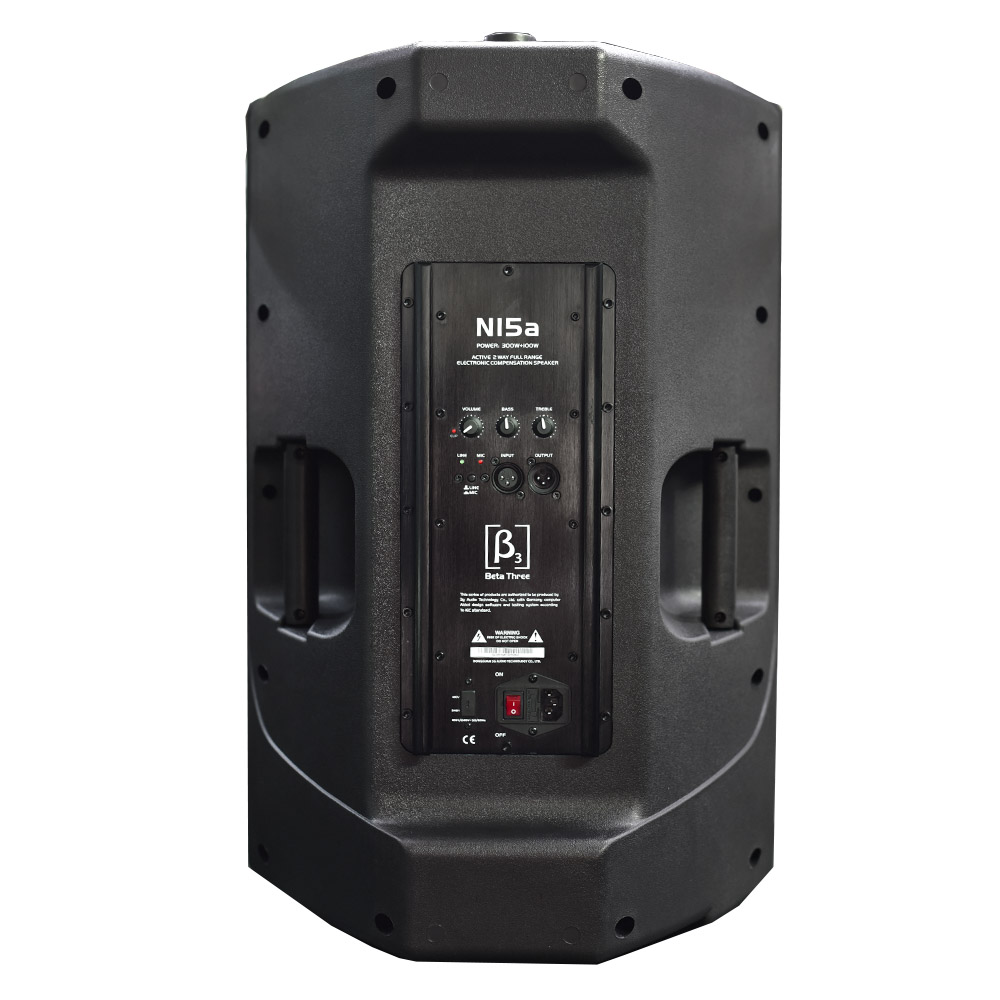

  • Built-in Bi-amp power amplifier module
  • Master volume control
  • Bass and Treble control
  • XLR input and output connectors
  • Switchable between Mic and Line input
  • Heavy duty protective grill
  • Injection molded
  • 2 x XLR connector
  • Cabinet design for FOH and Monitor use
  • Suitable for use as a main system with or without sub speaker augmentation

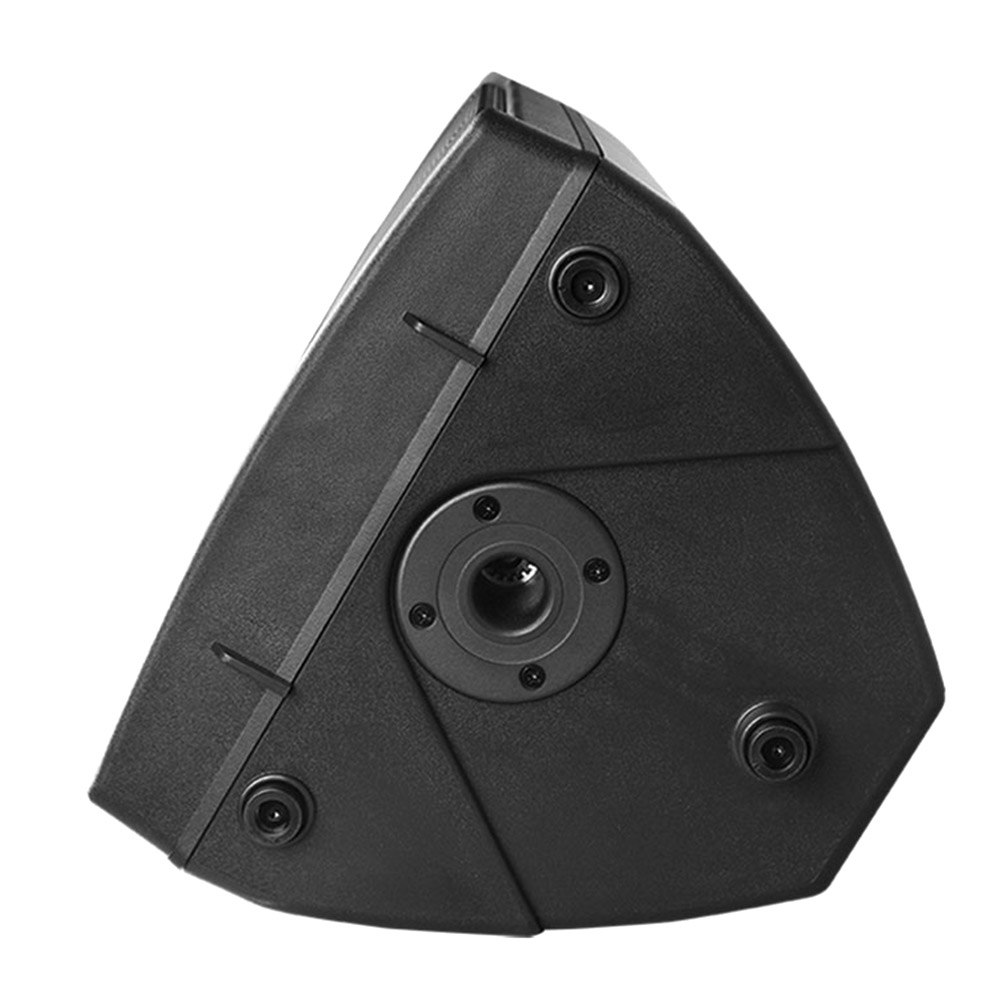

  • Portable system (stand), or permanent installation (wall, ceiling)
  • Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction

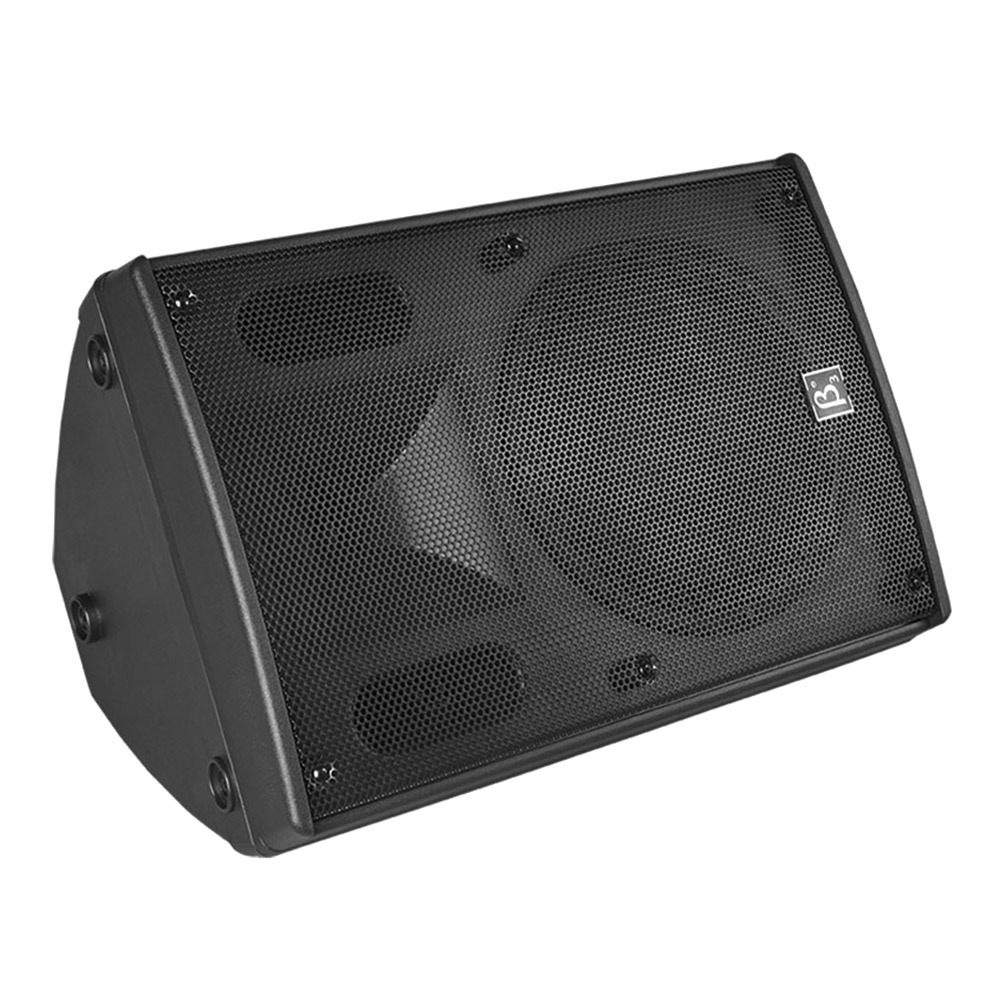

  • Monitor kit - optional

Specifications

Acoustical specifications
Frequency Response(-3db):
50Hz-18kHz
Max SPL @ 1m:
120dB/126dB(PEAK)
Dispersion (H x V):
90° x 40°
Transducers
Compression driver:
1 x 1.7" HF
Woofer:
1 x 15" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x XLR
Power section
Total Power:
100W HF, 300W LF
Nominal Impedance (Ohm):
Voltage range:
110V/220V
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
488 x 460 x 700mm / (19.2 x 18.1 x 27.6in)
Package Dimensions (W x D x H):
545 x 515 x 800mm / (21.5 x 20.3 x 31.5in)
Weight
Net Weight:
31 kg / 68.3 lb
Gross Weight:
34 kg / 75 lb

N15a Application

    N15a Installation

      N15a Parts

        N15a Cases

          N15a Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_N15a_Plastic_Speaker_Chinese_Manualβ3_N15a_Plastic_Speaker_Chinese_Manual 1β3_N15a_Plastic_Speaker_Chinese_Manual  3074KB 2018-07-12 02:25:39
              β3_N15a_Plastic_Speaker_English_Manualβ3_N15a_Plastic_Speaker_English_Manual 1β3_N15a_Plastic_Speaker_English_Manual  3026.57KB 2018-07-12 02:25:39
