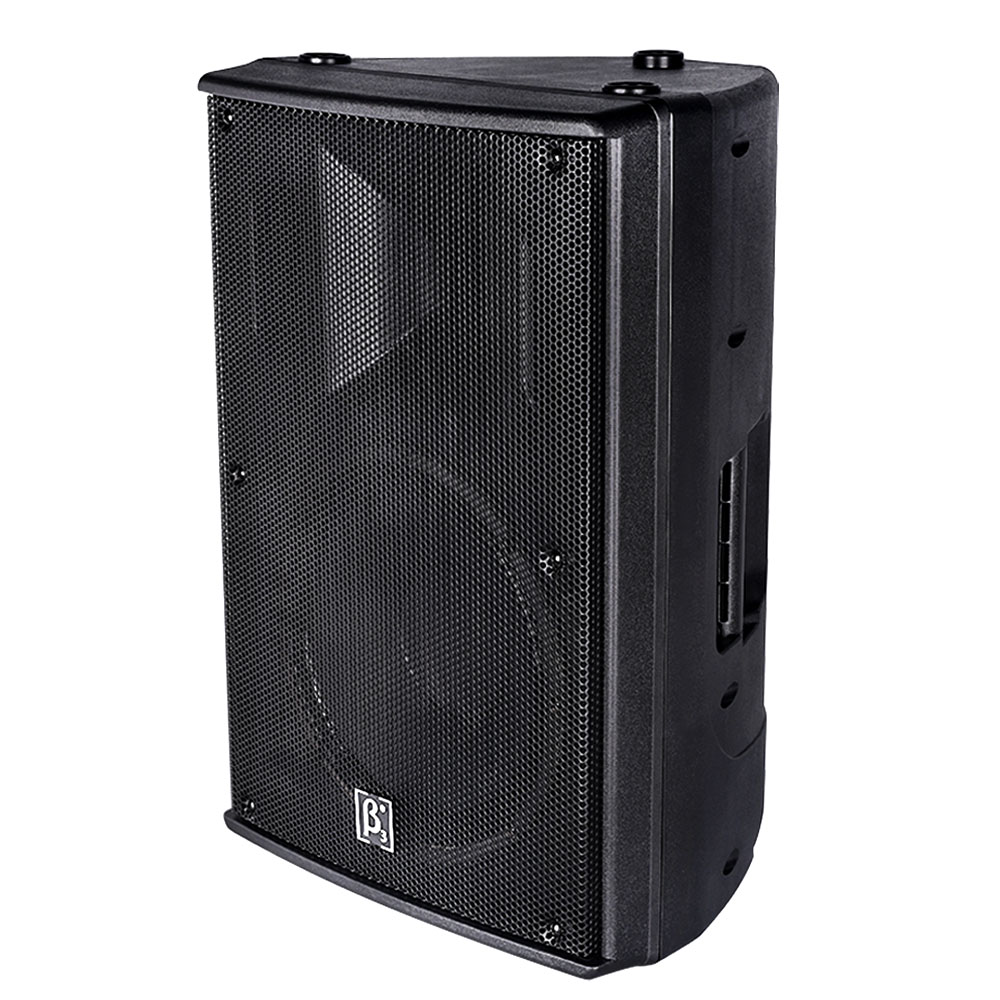

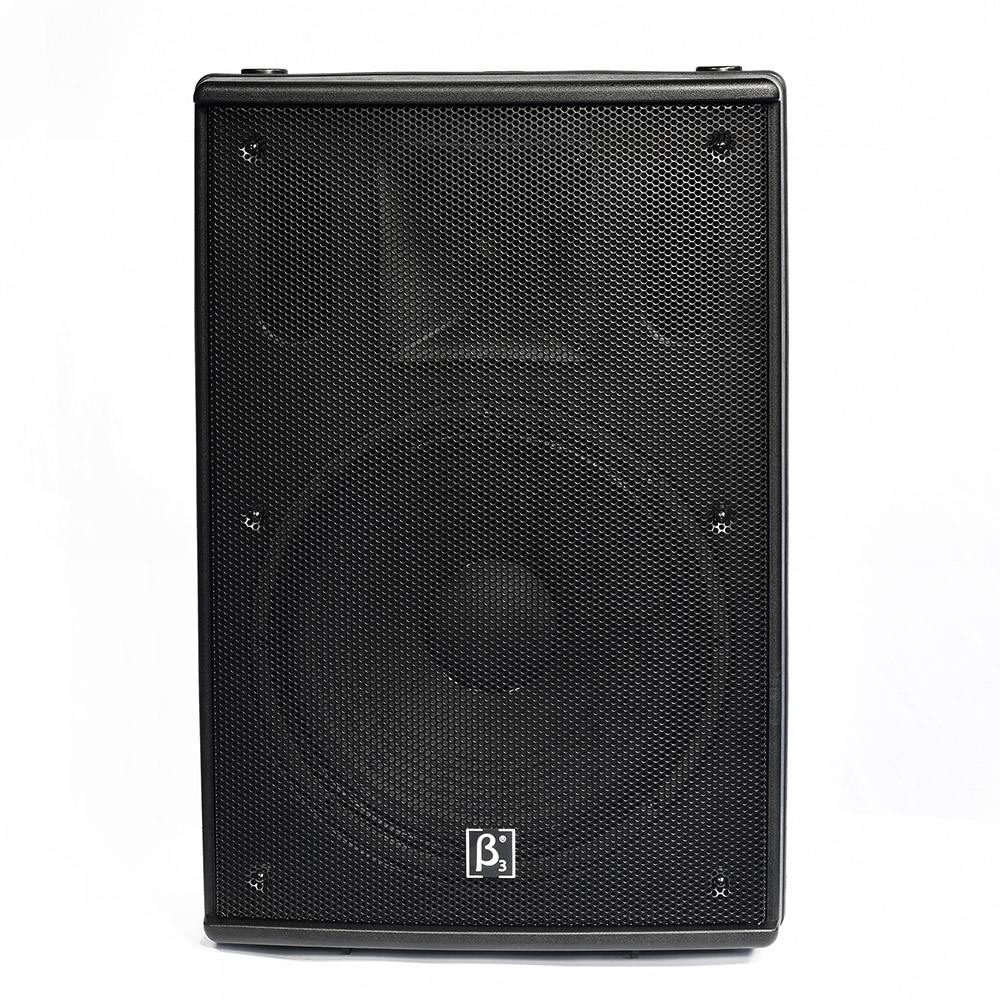

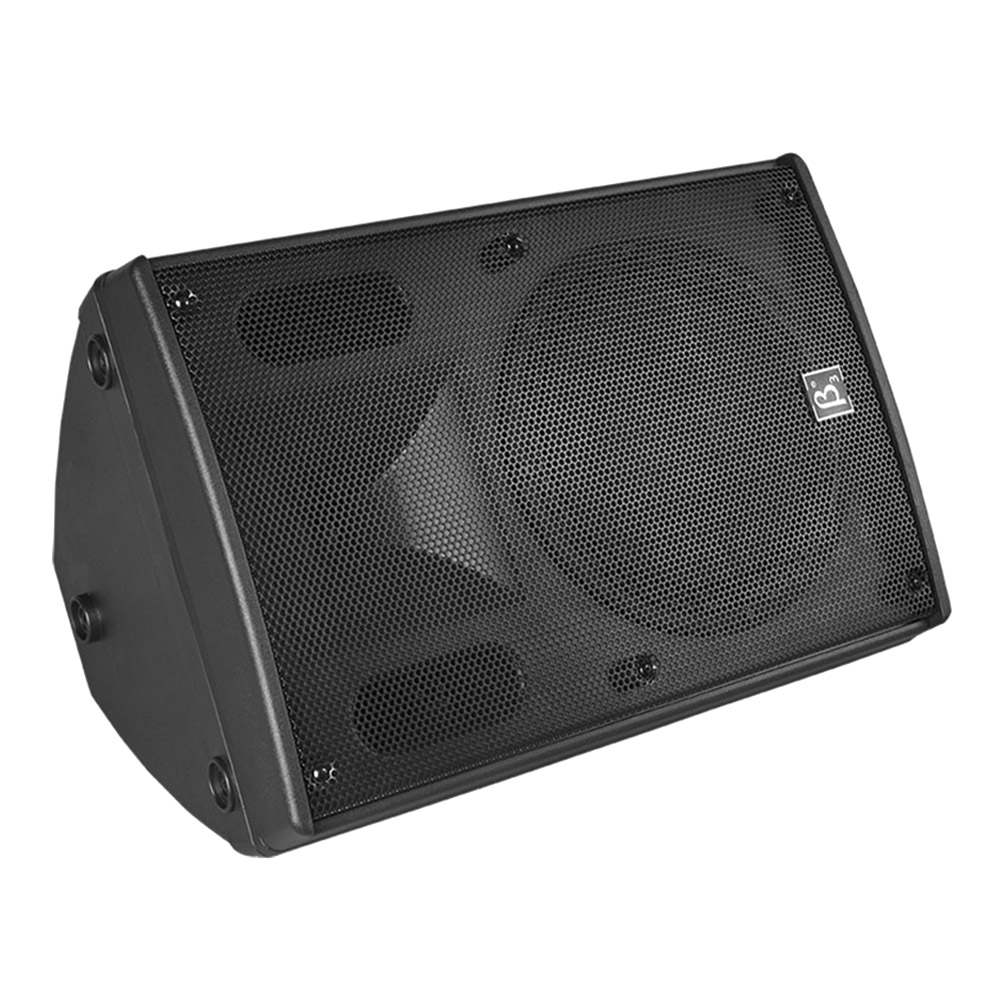

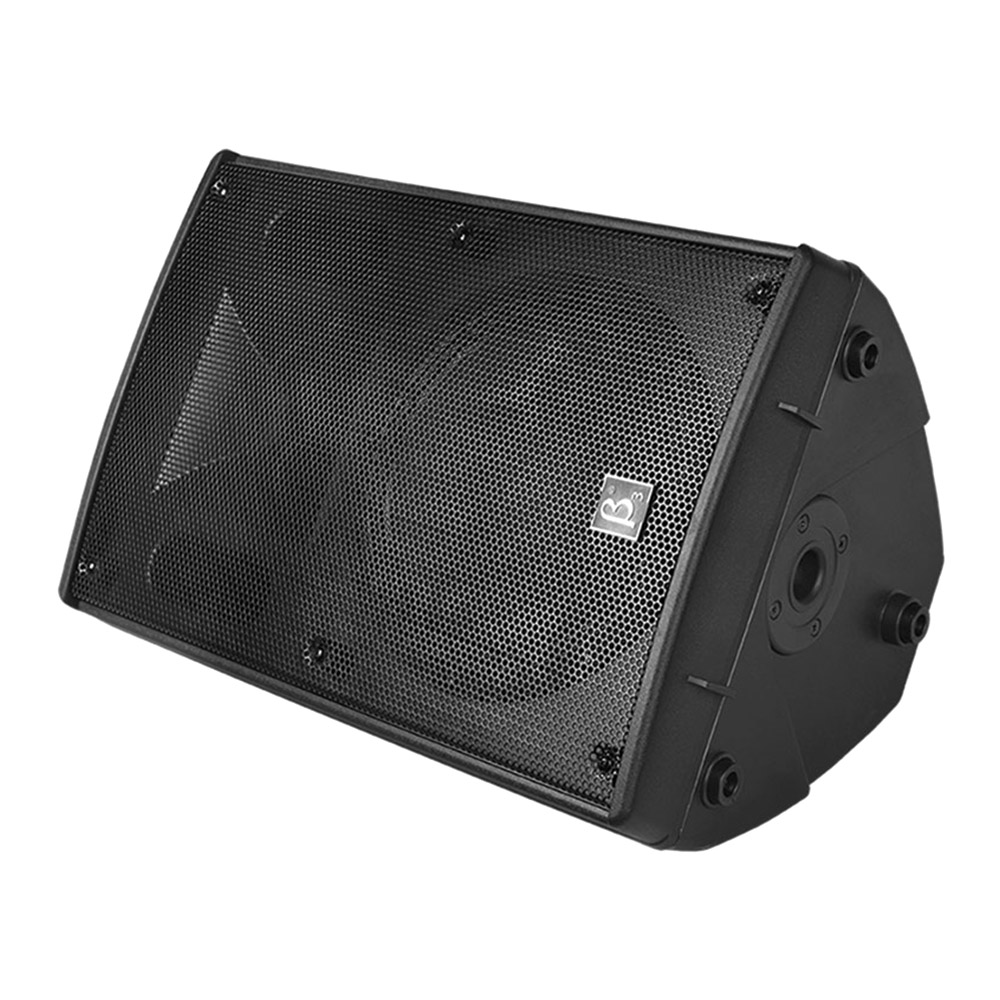

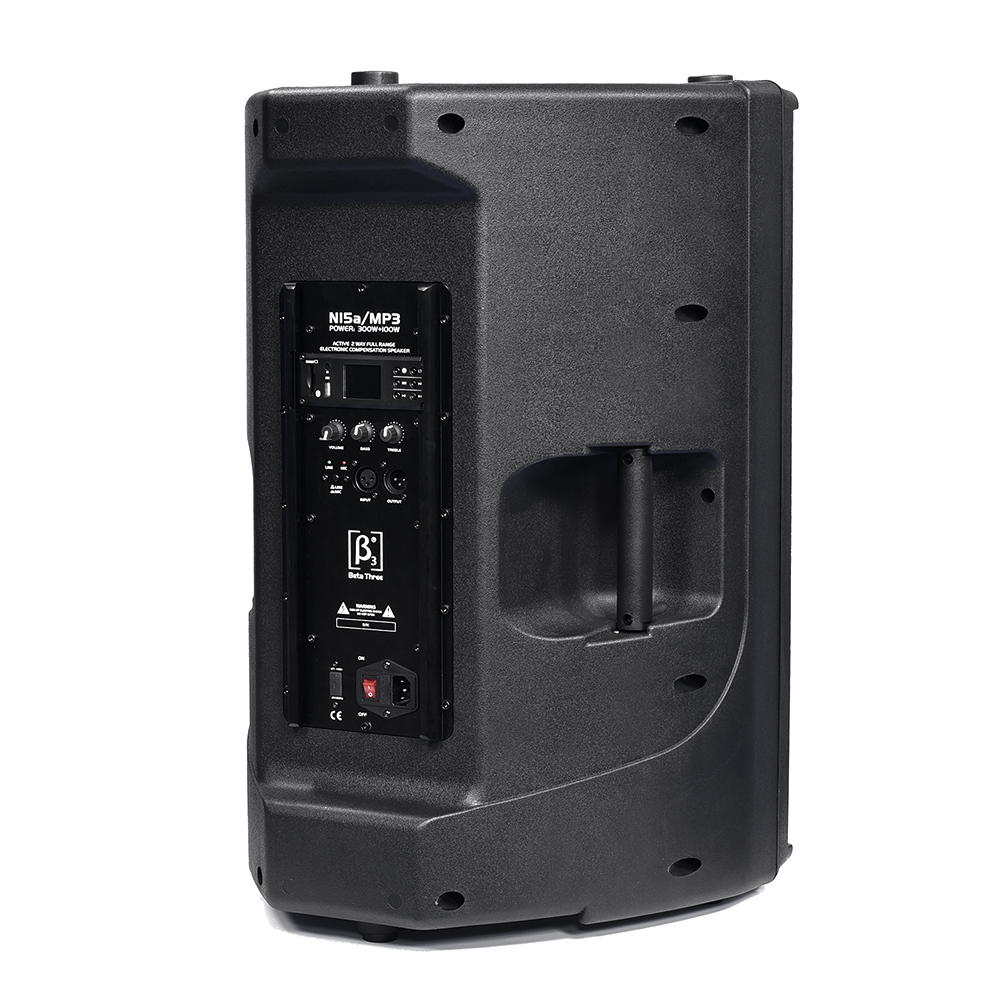

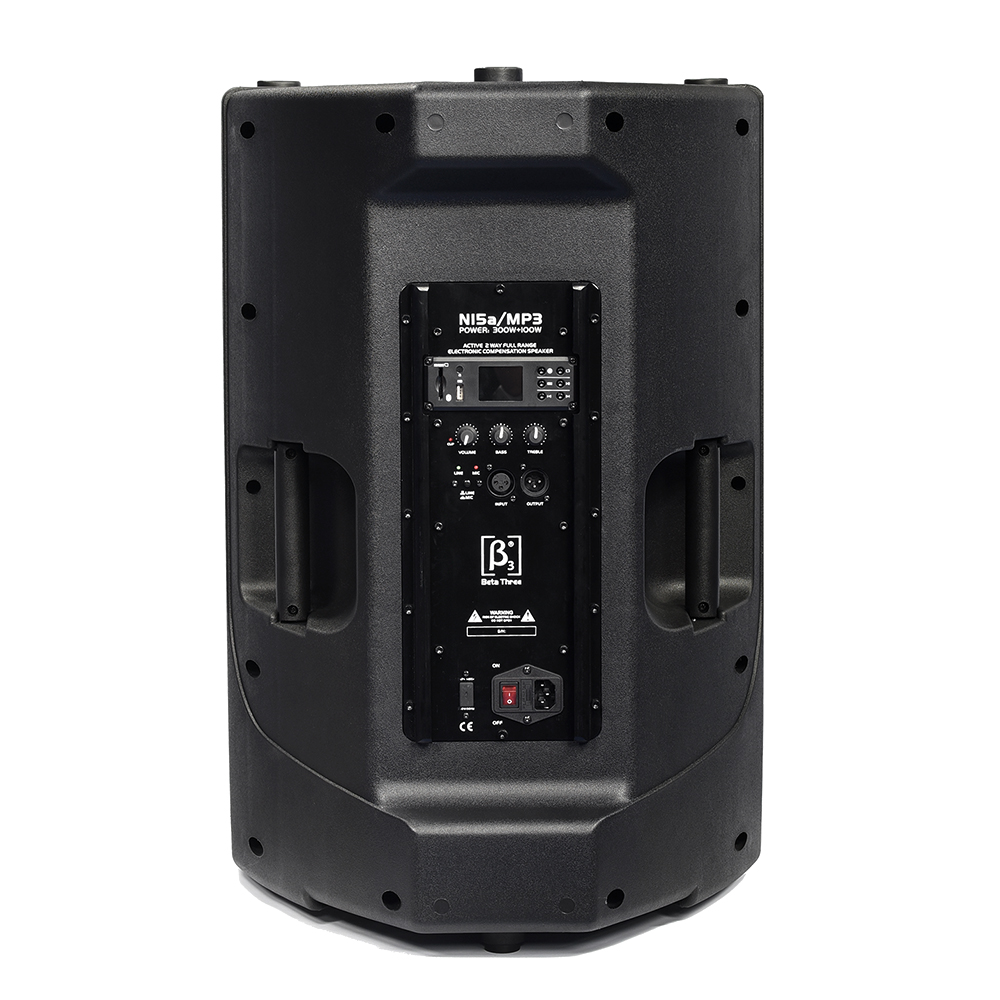

N15a-MP3

15" LF Active Speaker(Build-in MP3 player)

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship,Events, Clubs, Rehearsal Halls etc. The N Active Series delivers extraordinary performance at unmatched value.


Features

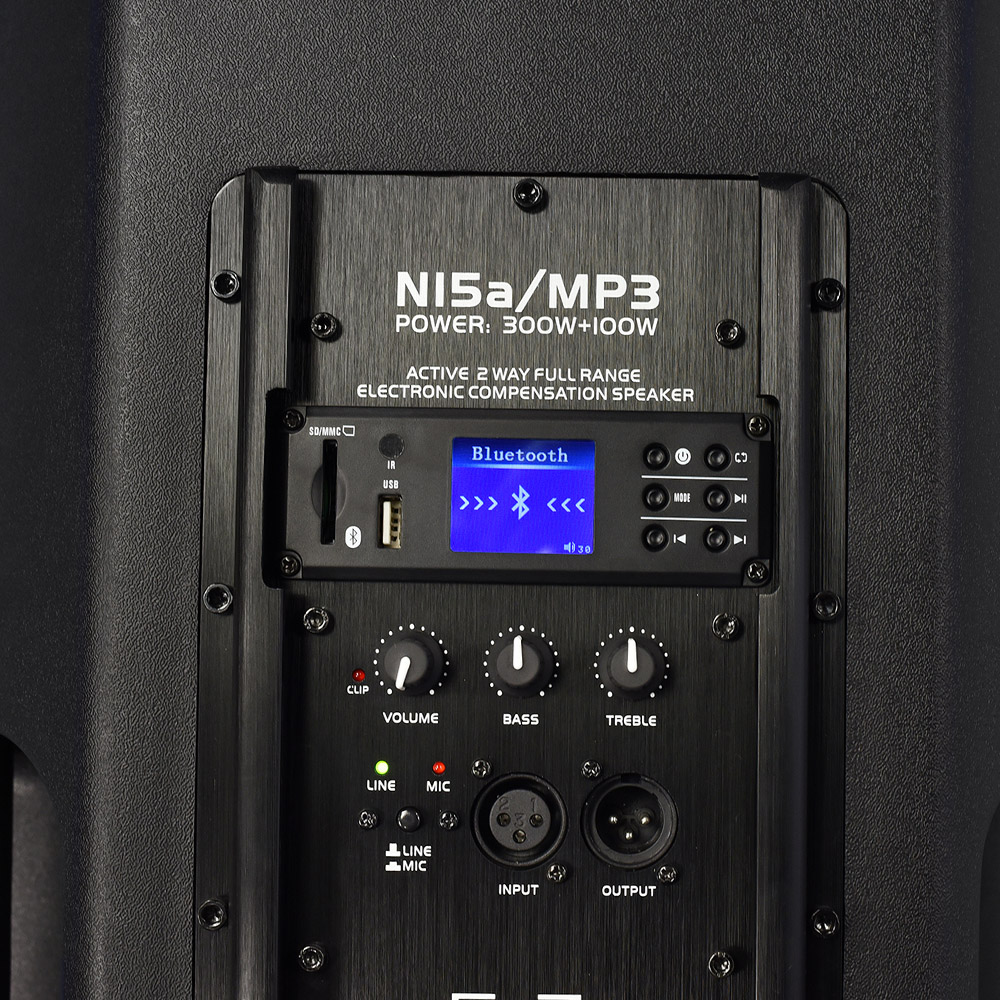

  • Build-in power amplifier, build-in MP3 player
  • High output SPL and sensitivity
  • 1 x 15” high power low frequency transducer with 50mm voice coil
  • Heavy duty protective grill
  • Injection molded
  • 2 x NL4 connector
  • Cabinet design for FOH
  • Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction

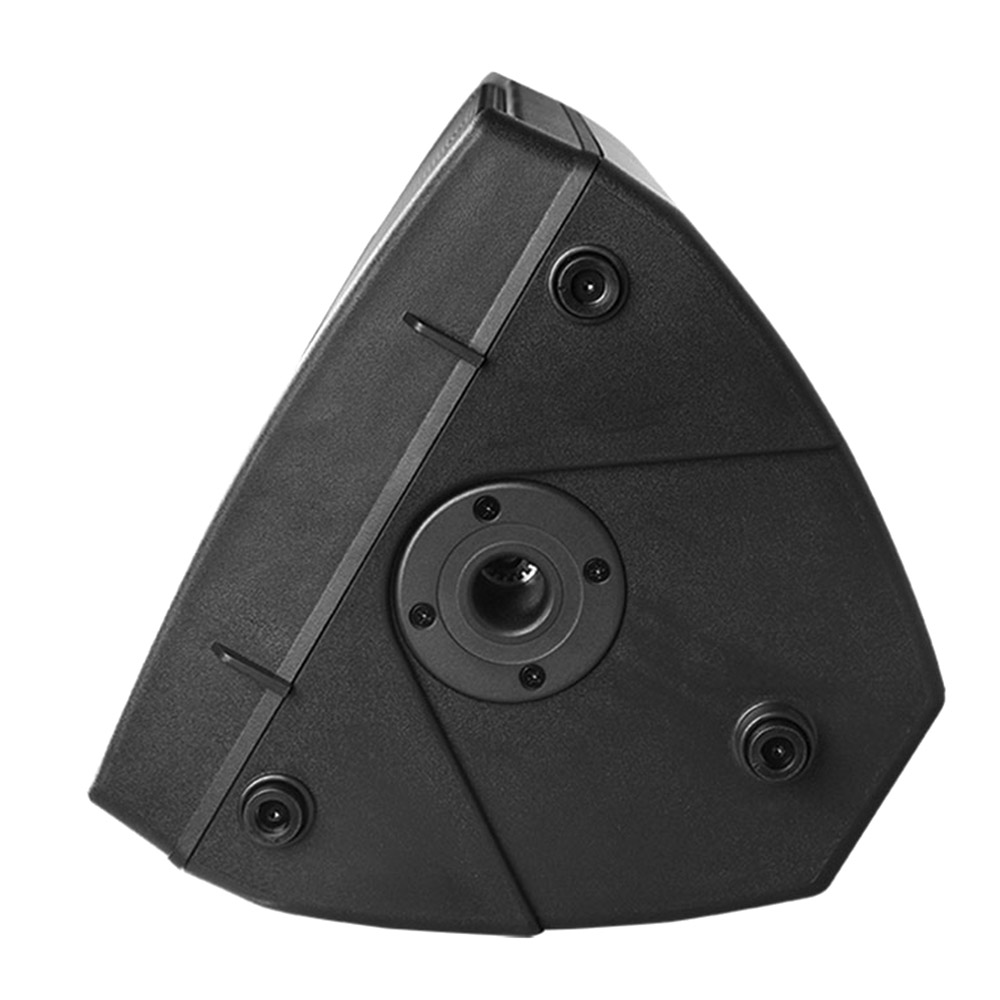

  • Integral 35mm pole receptacle for mounting full range or mid/high speaker
  • cabinet

Specifications

Acoustical specifications
Frequency Response(-3db):
50Hz-18KHz
Max SPL @ 1m:
120dB/126dB(PEAK)
Dispersion (H x V):
50-100° x 40°
Transducers
Compression driver:
1 x 44mm HF
Woofer:
1 x 15" LF
Input/Output section
Input signal:
Balanced 20kΩ, Unbalanced 10kΩ
Input Connectors:
2 x XLR
Power section
Total Power:
100W HF, 300W LF
Nominal Impedance (Ohm):
Voltage range:
AC 220V-240V~, 50/60Hz (or AC 110V-120V~, 50/60Hz)
Physical specifications
Color:
Black
Size
Dimension (W x D x H):
488 x 460 x 700mm / (19.2 x 18.1 x 27.6in)
Package Dimensions (W x D x H):
545 x 515 x 800mm / (21.5 x 20.3 x 31.5in)
Weight
Net Weight:
30.5 kg / 67.2 lb
Gross Weight:
33.7 kg / 74.3 lb

N15a-MP3 Application

    N15a-MP3 Installation

      N15a-MP3 Parts

        N15a-MP3 Cases

          N15a-MP3 Collocation

            Videos

              Downloads

              FilenameVersionLanguageSizeUpdated
              β3_N15a-MP3(110V)_Plastic_Speaker_Manualβ3_N15a-MP3(110V)_Plastic_Speaker_Manual 1β3_N15a-MP3(110V)_Plastic_Speaker_Manual  976.41KB 2018-07-12 02:25:39
              β3_N15a-MP3_Plastic_SpeakerManualβ3_N15a-MP3_Plastic_SpeakerManual 1β3_N15a-MP3_Plastic_SpeakerManual  968.39KB 2018-07-12 02:25:39
